MS-7037 M-ATX Mainboard

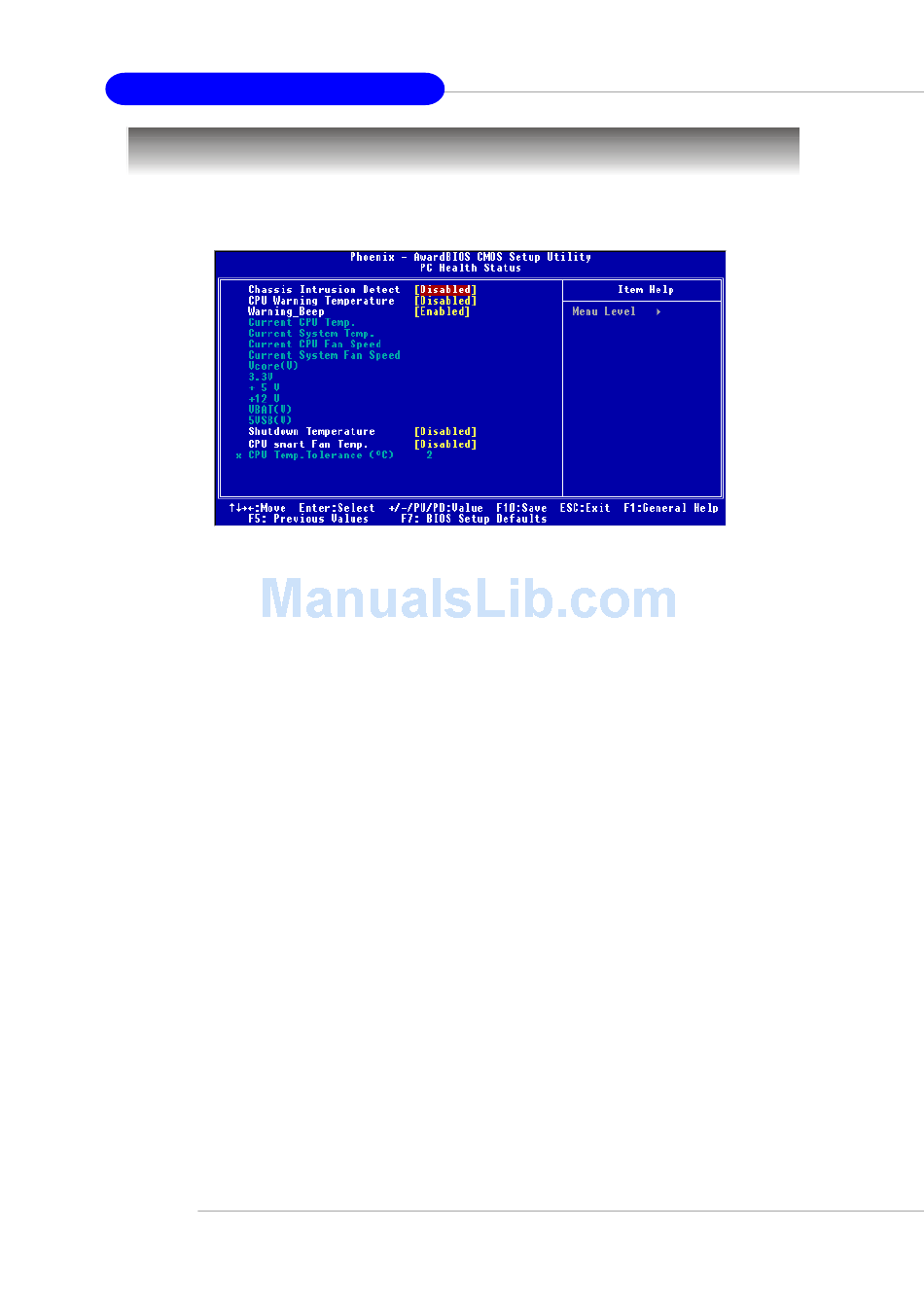

PC Health Status

This section shows the status of your CPU, fan, overall system status, etc.
Monitor function is available only if there is hardware monitoring mechanism onboard.
Chassis Intrusion Detect
The field enables or disables the feature of recording the chassis intrusion status
and issuing a warning message if the chassis is once opened. To clear the warning
message, set the field to [Reset]. The setting of the field will automatically return to
[Enabled] later. Setting options: [Enabled], [Reset], [Disabled].
CPU Warning Temperature
This item is used to specify a thermal limit for CPU. If CPU temperature reaches the
specified limit, the system will issue a warning which allows you to prevent the CPU
overheat problem.
Warning_Beep
The item controls whether the system beeps when any warning such as system
overheating problem or chassis intrusion event occurs. The settings are: [Enabled],
[Disabled].
Current CPU/System Temperature, Current CPU/System Fan Speed, Vcore
(V), 3.3V, +5V, +12V, -12V, -5V, VBAT(V), 5VSB(V)
These items display the current status of all of the monitored hardware devices/
components such as CPU voltages, temperatures and all fans' speeds.
Shutdown Temperature
If the CPU temperature reaches the limit preset in this setting, the system will shut-
down automatically.
CPU smart Fan Temperature
There is a pair of Temperature/FAN Speed control: CPU Temperature with CPU Fan.
W83627THF provides the Smart Fan system which can control the fan speed auto-
matically depending on the current temperature to keep it with in a specific range.
Settings: [Enabled], [Disabled].
3-24
