Installing a 250-Sheet or
Tray labels
Optra T label
(colored triangle)
Support unit
Paper tray
Tab
500-Sheet Drawer
Square hole
Round hole

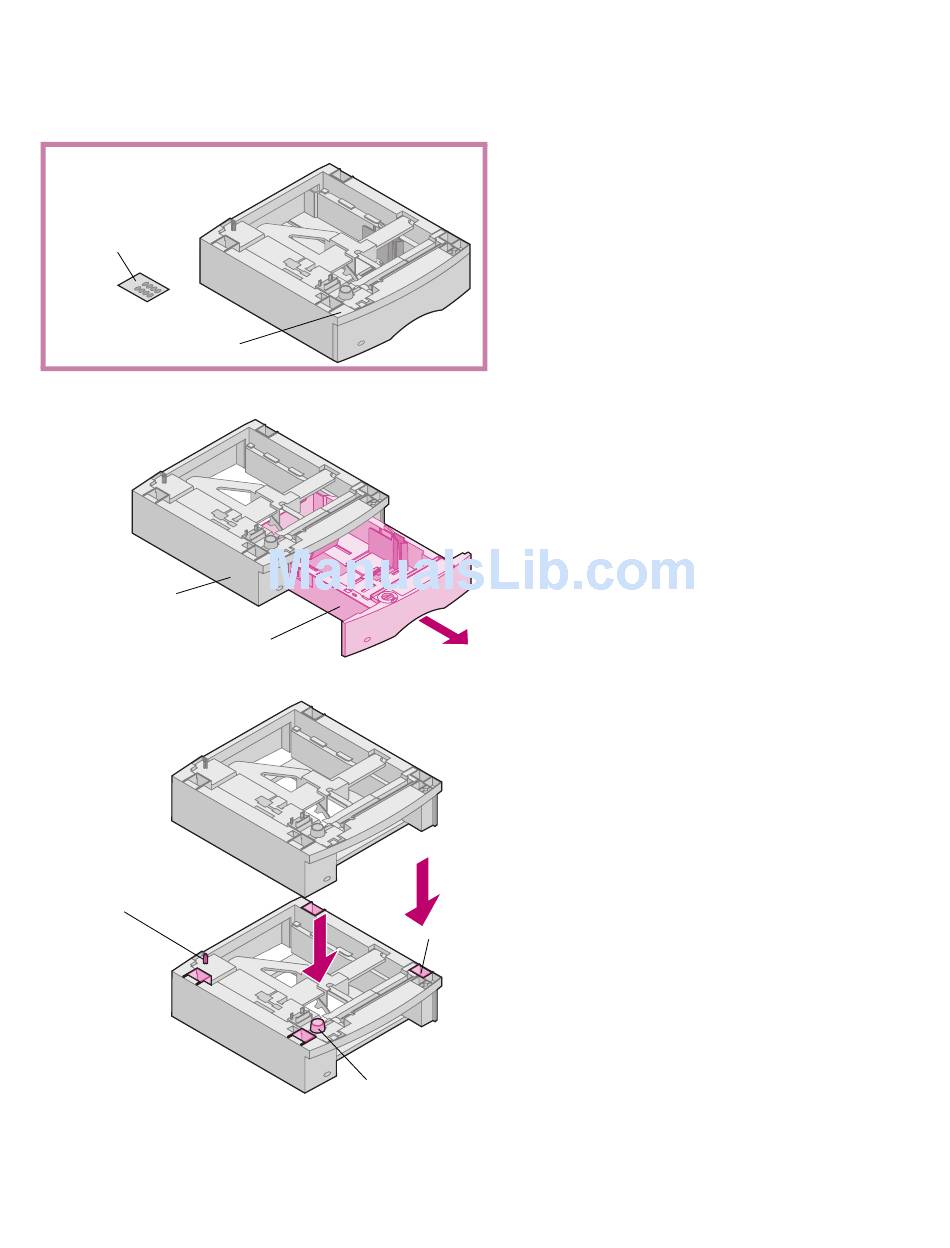

Paper drawers attach under the printer and
optional duplex unit. The printer automatically rec-
ognizes any drawer that has been installed.
A drawer consists of a paper tray and a support
unit. The 250-sheet drawer and the 500-sheet
drawer are installed the same way.
1
Remove the tray from the support unit.
Remove all packing material and tape from
both the support unit and the tray.
2
Place the support unit on top of any
previously installed paper drawers, or the
table or printer cabinet where you plan to
use the printer.
The tab, round hole and square holes on top
of any drawer will help you seat the support
unit so the edges are aligned properly. Make
sure the support unit is securely in place.
At this point, attach another optional drawer,
a duplex unit or the printer.
To attach a drawer, repeat steps 1 and 2.
To attach a duplex unit, see "Installing a
Duplex Unit" on page 6.
To attach the printer, see "Placing the
Printer" on page 7.
