Installing optional trays

The printer supports the following optional input sources:
2 Tray Module (two 500-sheet trays)
•
2,000-sheet dual input trays
•
2,000-sheet high capacity feeder
•
Duplex unit
•
CAUTION—POTENTIAL INJURY: The printer weight is greater than 55kg (121 lbs), and requires at least four
persons or a properly rated mechanical handling system to move it safely.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory
devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the
wall outlet before continuing. If you have any other devices attached to the printer, then turn them off as well,
and unplug any cables going into the printer.
1
Unpack the optional tray, and remove all packing material.
2
Place the tray in the location chosen for the printer.
Note: If you are installing more than one optional tray, the 2,000-sheet dual input trays must always be installed
as the first optional trays (configuring from the bottom up).
Note: The optional 500-sheet trays and optional 2,000-sheet dual input trays are interchangeable.

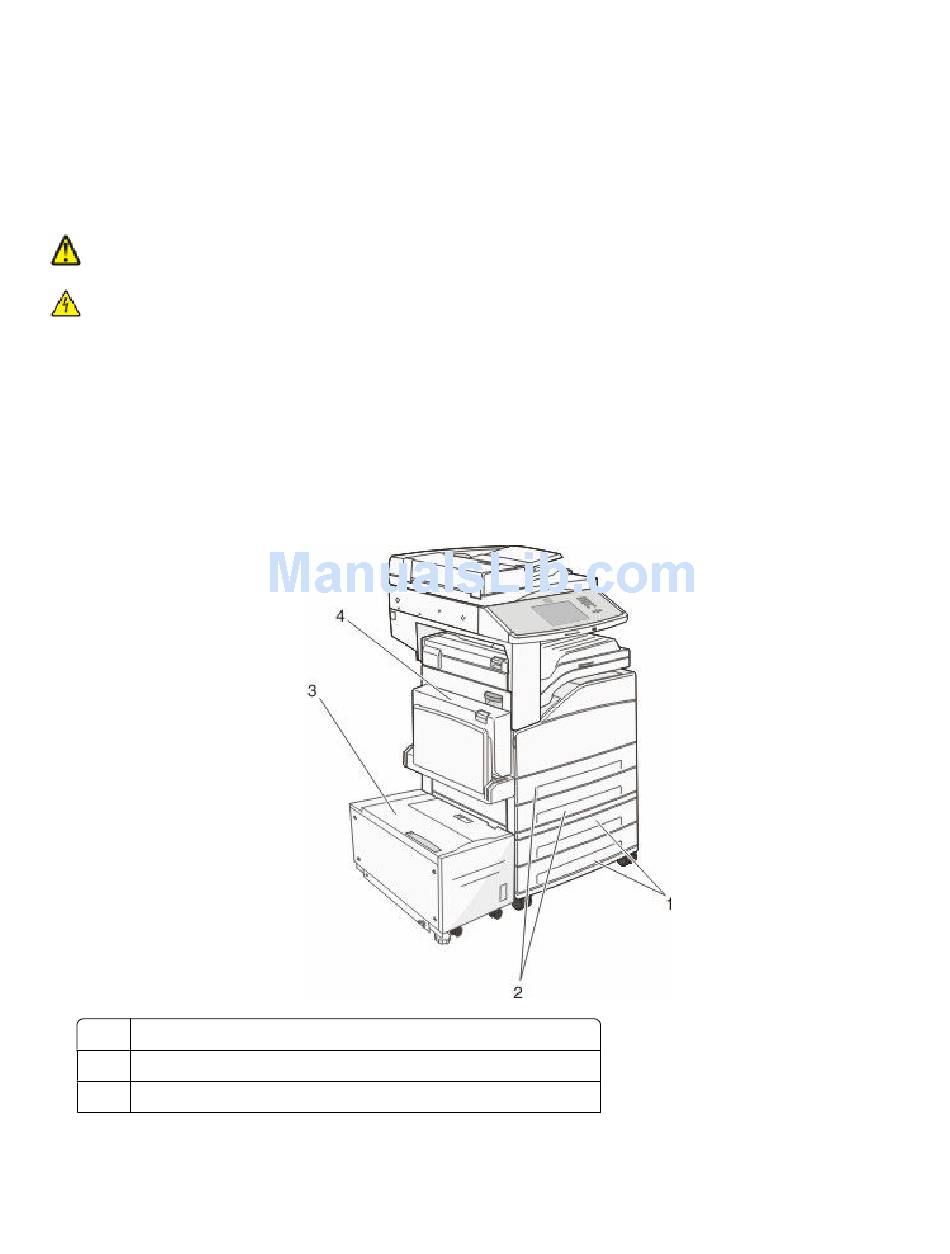

1 Tray 3 and Tray 4 (500-sheet trays or 2,000-sheet dual input trays)
2 Tray 1 and Tray 2 (500-sheet trays)
3 Tray 5 (2,000-sheet high capacity feeder)
