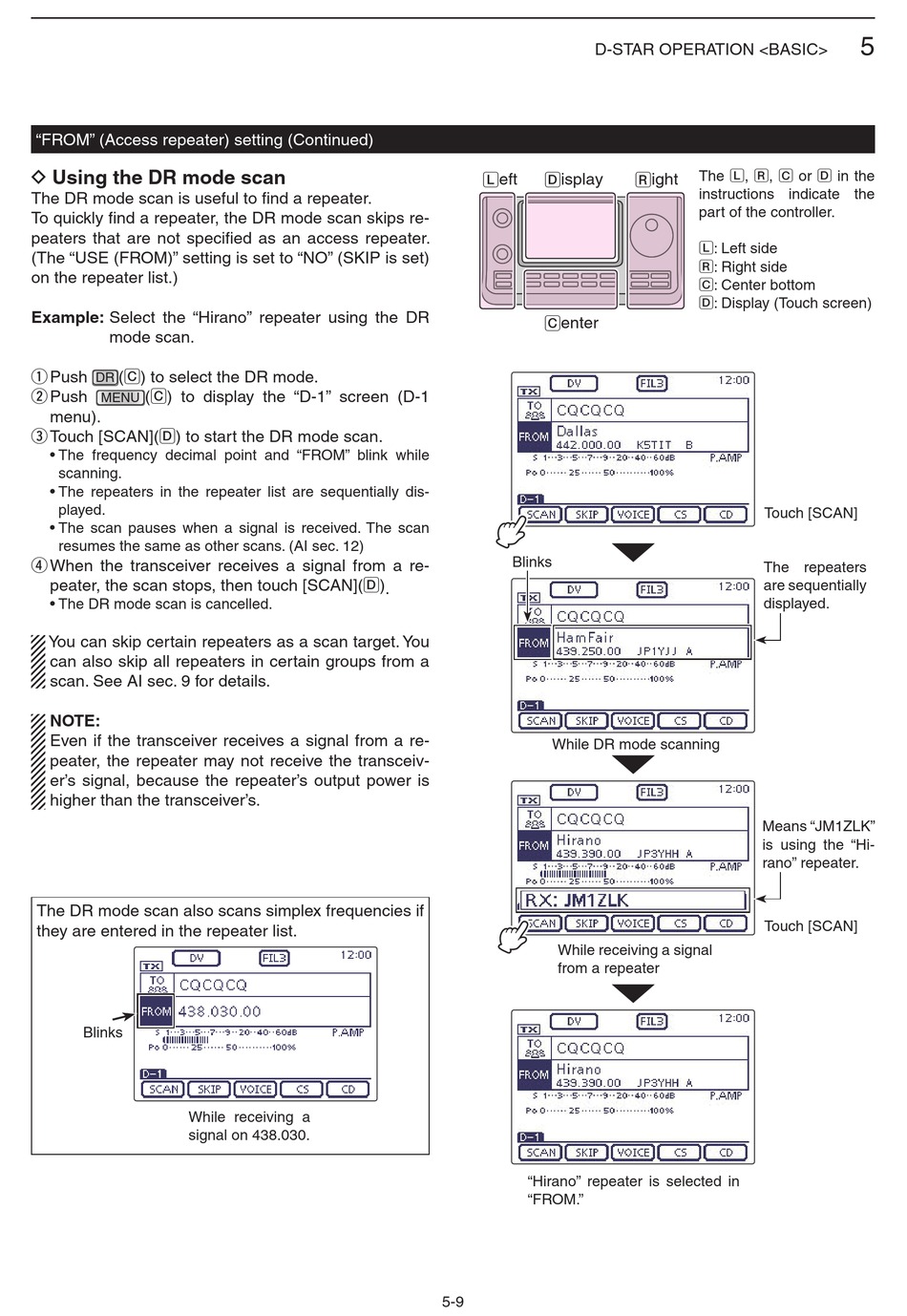

Icom IC-7100 Instruction Manual page 71

"FROM" (Access repeater) setting (Continued)
D
The DR mode scan is useful to find a repeater.
To quickly find a repeater, the DR mode scan skips re-
peaters that are not specified as an access repeater.
(The "USE (FROM)" setting is set to "NO" (SKIP is set)
on the repeater list.)
Select the "Hirano" repeater using the DR
mode scan.
Push (C) to select the DR mode.
q
DR
Push (C) to display the "D-1" screen (D-1
w
MENU
menu).
Touch [SCAN]( D) to start the DR mode scan.
e
scanning.
played.
resumes the same as other scans. (AI sec. 12)
When the transceiver receives a signal from a re-
r
peater, the scan stops, then touch [SCAN](D) .
You can skip certain repeaters as a scan target. You
can also skip all repeaters in certain groups from a
scan. See AI sec. 9 for details.
NOTE:
Even if the transceiver receives a signal from a re-
peater, the repeater may not receive the transceiv-
er's signal, because the repeater's output power is
higher than the transceiver's.
The DR mode scan also scans simplex frequencies if
they are entered in the repeater list.
Blinks
While receiving a
signal on 438.030.
D-STAR OPERATION <BASIC>
L eft D isplay
C enter
-
Blinks
While DR mode scanning
While receiving a signal
from a repeater
"Hirano" repeater is selected in
"FROM."
5-9
The L, R, C or D in the
R ight
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
Touch [SCAN]
The repeaters
are sequentially
displayed.
Means "JM1ZLK"
is using the "Hi-
rano" repeater.
Touch [SCAN]
5
