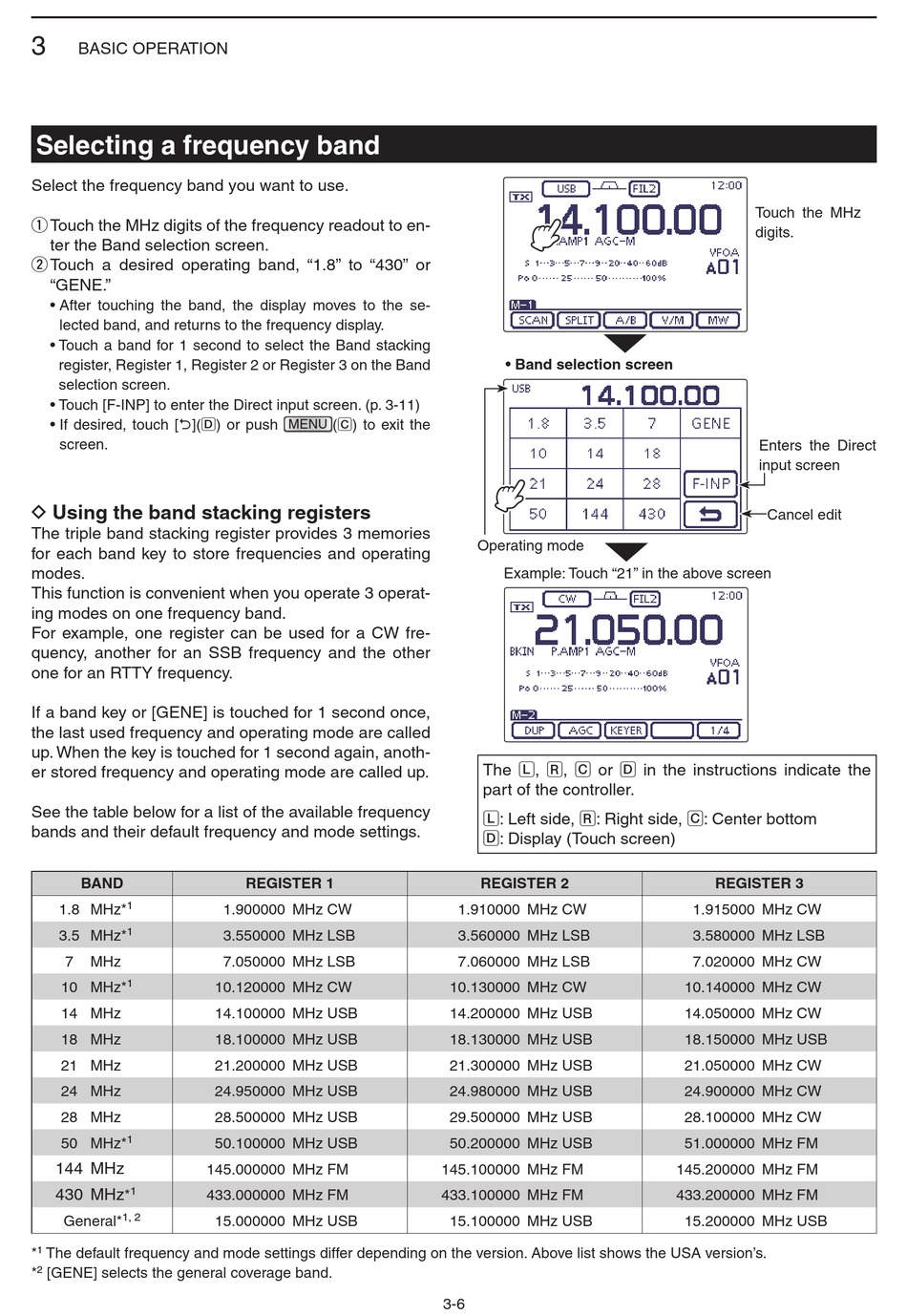

BASIC OPERATION
Select the frequency band you want to use.
Touch the MHz digits of the frequency readout to en-
q
ter the Band selection screen.
Touch a desired operating band, "1.8" to "430" or
w
"GENE."
lected band, and returns to the frequency display.
register, Register 1, Register 2 or Register 3 on the Band
selection screen.
](D) or push
screen.
D
The triple band stacking register provides 3 memories
for each band key to store frequencies and operating
modes.
This function is convenient when you operate 3 operat-
ing modes on one frequency band.
For example, one register can be used for a CW fre-
quency, another for an SSB frequency and the other
one for an RTTY frequency.
If a band key or [GENE] is touched for 1 second once,
the last used frequency and operating mode are called
up. When the key is touched for 1 second again, anoth-
er stored frequency and operating mode are called up.
See the table below for a list of the available frequency
bands and their default frequency and mode settings.
1
1.8 MHz*
1
3.5 MHz*
7 MHz
1
10 MHz*
14 MHz
18 MHz
21 MHz
24 MHz
28 MHz
1
50 MHz*
144 MHz
1
430 MHz
*
1, 2
General*
1
* The default frequency and mode settings differ depending on the version. Above list shows the USA version's.
2
* [GENE] selects the general coverage band.
MENU (C) to exit the
REGISTER 1
1.900000 MHz CW
3.550000 MHz LSB
7.050000 MHz LSB
10.120000 MHz CW
14.100000 MHz USB
18.100000 MHz USB
21.200000 MHz USB
24.950000 MHz USB
28.500000 MHz USB
50.100000 MHz USB
145.000000 MHz FM
433.000000 MHz FM
15.000000 MHz USB
-
Operating mode
Example: Touch "21" in the above screen
The L, R, C or D in the instructions indicate the
part of the controller.
L: Left side, R: Right side, C: Center bottom
D: Display (Touch screen)
REGISTER 2
1.910000 MHz CW
3.560000 MHz LSB
7.060000 MHz LSB
10.130000 MHz CW
14.200000 MHz USB
18.130000 MHz USB
21.300000 MHz USB
24.980000 MHz USB
29.500000 MHz USB
50.200000 MHz USB
145.100000 MHz FM
433.100000 MHz FM
15.100000 MHz USB
3-6
Touch the MHz
digits.
Enters the Direct
input screen
Cancel edit
REGISTER 3
1.915000 MHz CW
3.580000 MHz LSB
7.020000 MHz CW
10.140000 MHz CW
14.050000 MHz CW
18.150000 MHz USB
21.050000 MHz CW
24.900000 MHz CW
28.100000 MHz CW
51.000000 MHz FM
145.200000 MHz FM
433.200000 MHz FM
15.200000 MHz USB
