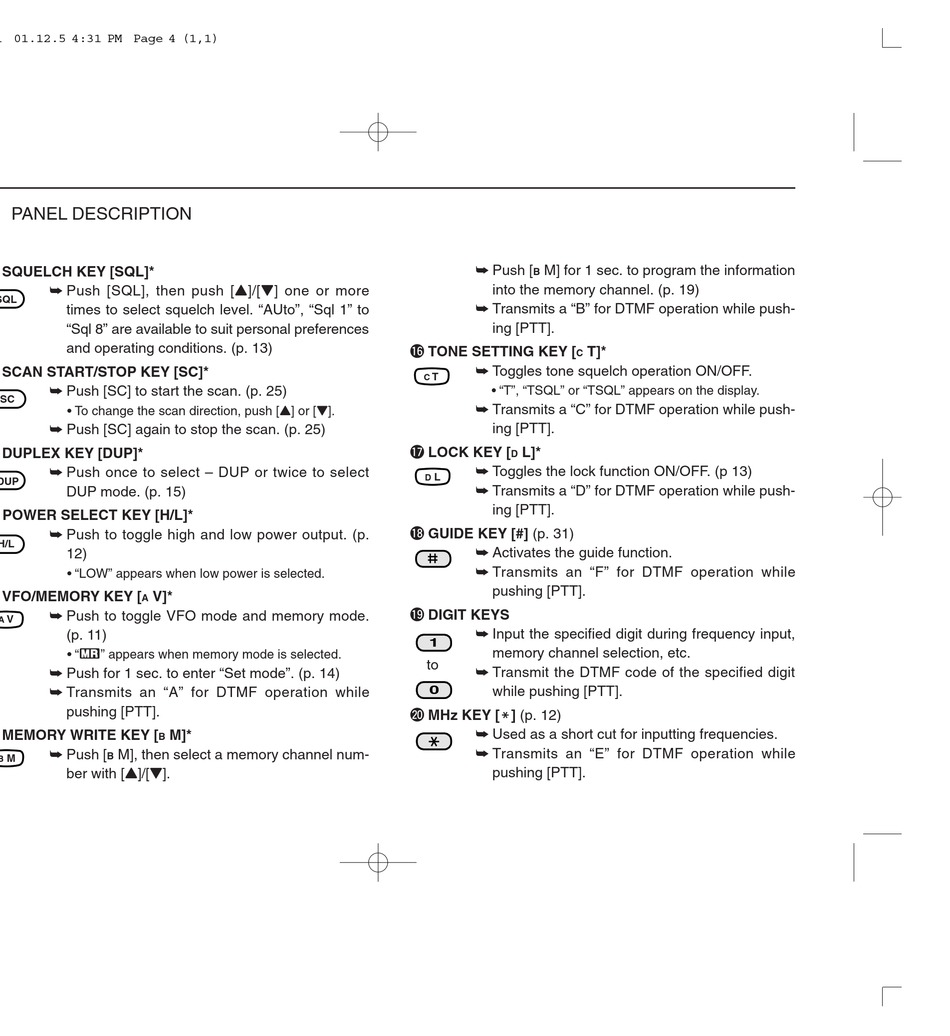

PANEL DESCRIPTION
!0 SQUELCH KEY [SQL]*
➥ Push [SQL], then push [Y]/[Z] one or more
SQL
times to select squelch level. "AUto", "Sql 1" to
"Sql 8" are available to suit personal preferences
and operating conditions. (p. 13)
!1 SCAN START/STOP KEY [SC]*
➥ Push [SC] to start the scan. (p. 25)
SC
• To change the scan direction, push [Y] or [Z].
➥ Push [SC] again to stop the scan. (p. 25)
!2 DUPLEX KEY [DUP]*
➥ Push once to select – DUP or twice to select
DUP
DUP mode. (p. 15)
!3 POWER SELECT KEY [H/L]*
➥ Push to toggle high and low power output. (p.
H/L
12)
• "LOW" appears when low power is selected.
!4 VFO/MEMORY KEY [
➥ Push to toggle VFO mode and memory mode.
V
A
(p. 11)
• "X" appears when memory mode is selected.
➥ Push for 1 sec. to enter "Set mode". (p. 14)
➥ Transmits an "A" for DTMF operation while
pushing [PTT].
!5 MEMORY WRITE KEY [
➥ Push [
M
B
ber with [Y]/[Z].
4
V]*
A
M]*
B
M], then select a memory channel num-
B
➥ Push [
M] for 1 sec. to program the information
B
into the memory channel. (p. 19)
➥ Transmits a "B" for DTMF operation while push-
ing [PTT].
!6 TONE SETTING KEY [
T]*
C
➥ Toggles tone squelch operation ON/OFF.
T
C
• "T", "TSQL" or "TSQL" appears on the display.
➥ Transmits a "C" for DTMF operation while push-
ing [PTT].
!7 LOCK KEY [
L]*
D
➥ Toggles the lock function ON/OFF. (p 13)
L
D
➥ Transmits a "D" for DTMF operation while push-
ing [PTT].
!8 GUIDE KEY [#] (p. 31)
➥ Activates the guide function.
➥ Transmits an "F" for DTMF operation while
pushing [PTT].
!9 DIGIT KEYS
➥ Input the specified digit during frequency input,
1
memory channel selection, etc.
to
➥ Transmit the DTMF code of the specified digit
0
while pushing [PTT].
@0 MHz KEY [M] (p. 12)
➥ Used as a short cut for inputting frequencies.
➥ Transmits an "E" for DTMF operation while
pushing [PTT].
