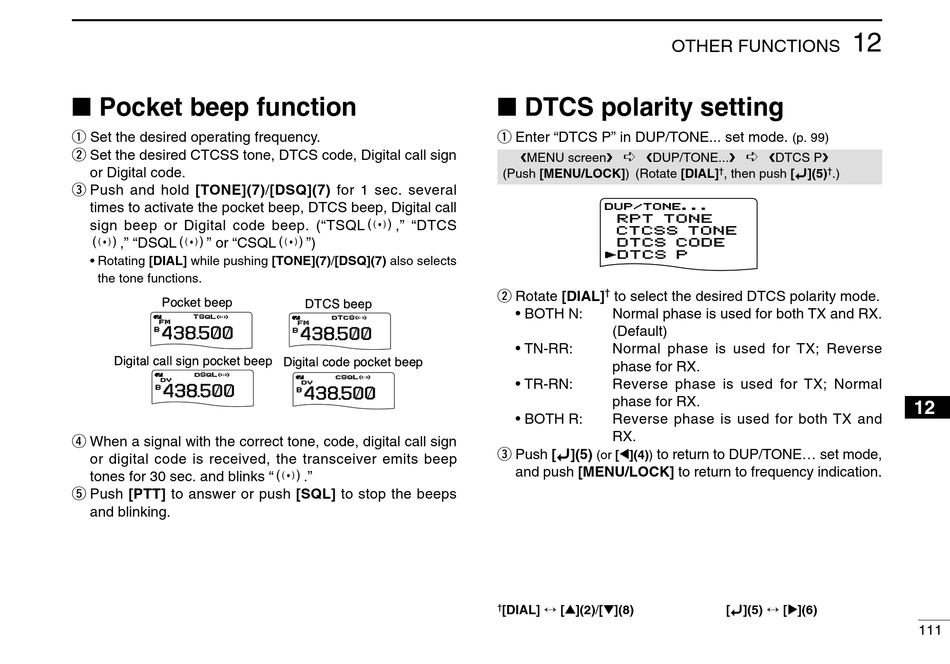

I Pocket Beep Function; I Dtcs Polarity Setting - Icom IC-91A Instruction Manual

145300
25

I Pocket beep function

145300
25
q Set the desired operating frequency.
w Set the desired CTCSS tone, DTCS code, Digital call sign
or Digital code.
145300
25
e Push and hold [TONE](7)/[DSQ](7) for 1 sec. several
times to activate the pocket beep, DTCS beep, Digital call
sign beep or Digital code beep. ("TSQLS," "DTCS
S," "DSQLS" or "CSQLS")
• Rotating [DIAL] while pushing [TONE](7)/[DSQ](7) also selects
the tone functions.
438 500
25 25
438 500
25 25
r When a signal with the correct tone, code, digital call sign
or digital code is received, the transceiver emits beep
tones for 30 sec. and blinks "S."
t Push [PTT] to answer or push [SQL] to stop the beeps
and blinking.
145300
25
145300
25
145300
25
438 500
25 25
438 500
25 25
OTHER FUNCTIONS

I DTCS polarity setting

q Enter "DTCS P" in DUP/TONE... set mode.
➪
MENU screen DUP/TONE...
(Push [MENU/LOCK]) (Rotate [DIAL]
r
r
r
w Rotate [DIAL]
†
to select the desired DTCS polarity mode.
• BOTH N: Normal phase is used for both TX and RX.
(Default)
• TN-RR: Normal phase is used for TX; Reverse
phase for RX.
• TR-RN: Reverse phase is used for TX; Normal
phase for RX.
• BOTH R: Reverse phase is used for both TX and
RX.
e Push [ï](5)
to return to DUP/TONE... set mode,
(or [Ω Ω ](4))
and push [MENU/LOCK] to return to frequency indication.
[DIAL] ↔ [∫ ∫ ](2)/[√ √ ](8)
†
12
(p. 99)
➪
DTCS P
† †
, then push [ï](5) .)
[ï](5) ↔ [≈ ≈ ](6)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
111
