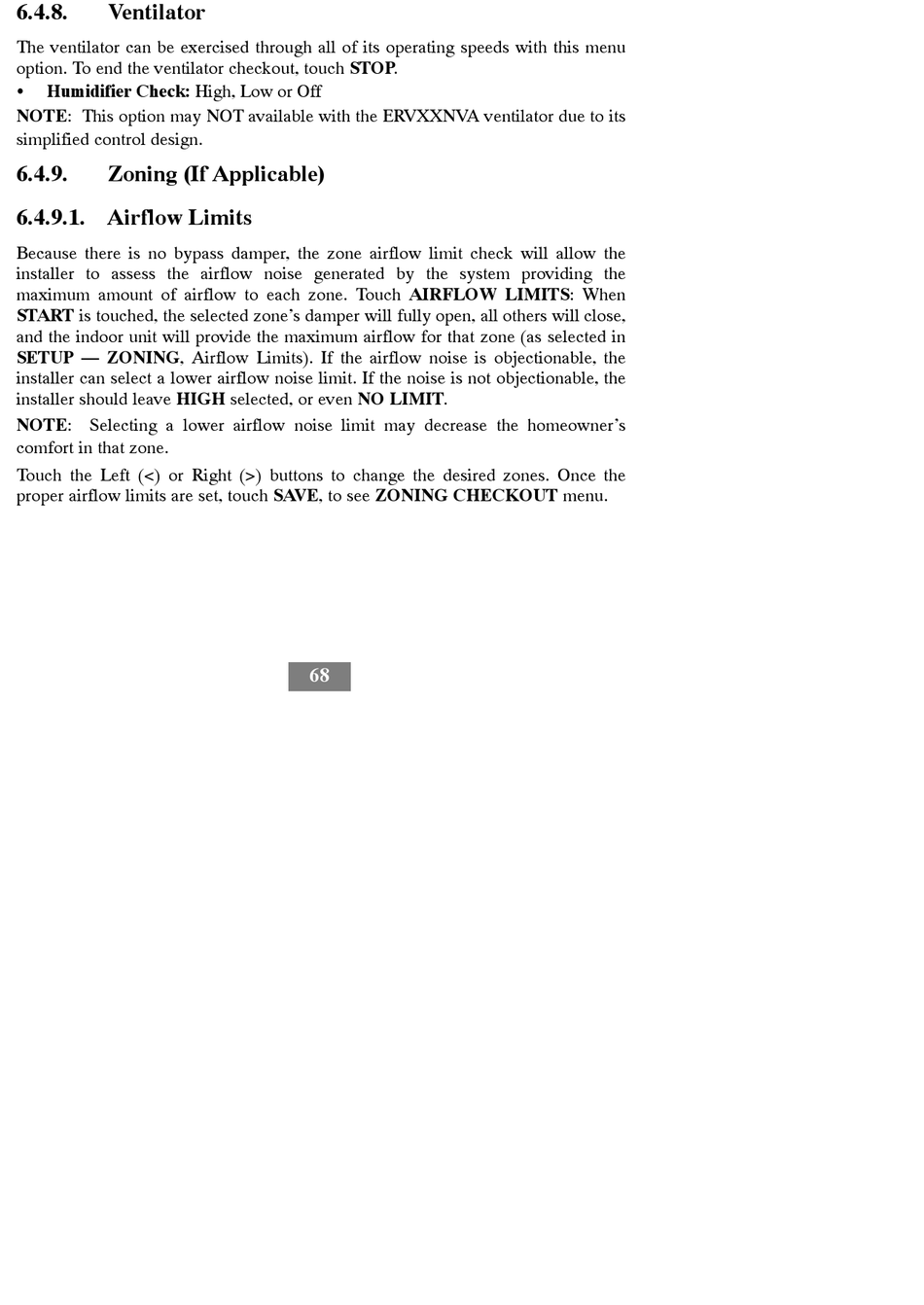

6.4.8.

Ventilator

The ventilator can be exercised through all of its operating speeds with this menu

option. To end the ventilator checkout, touch STOP.

Humidifier Check: High, Low or Off

NOTE: This option may NOT available with the ERVXXNVA ventilator due to its

simplified control design.

6.4.9.

6.4.9.1. Airflow Limits

Because there is no bypass damper, the zone airflow limit check will allow the

installer to assess the airflow noise generated by the system providing the

maximum amount of airflow to each zone. Touch AIRFLOW LIMITS: When

START is touched, the selected zone's damper will fully open, all others will close,

and the indoor unit will provide the maximum airflow for that zone (as selected in

SETUP — ZONING, Airflow Limits). If the airflow noise is objectionable, the

installer can select a lower airflow noise limit. If the noise is not objectionable, the

installer should leave HIGH selected, or even NO LIMIT.

NOTE: Selecting a lower airflow noise limit may decrease the homeowner's

comfort in that zone.

Touch the Left (<) or Right (>) buttons to change the desired zones. Once the

proper airflow limits are set, touch SAVE, to see ZONING CHECKOUT menu.
