Operation

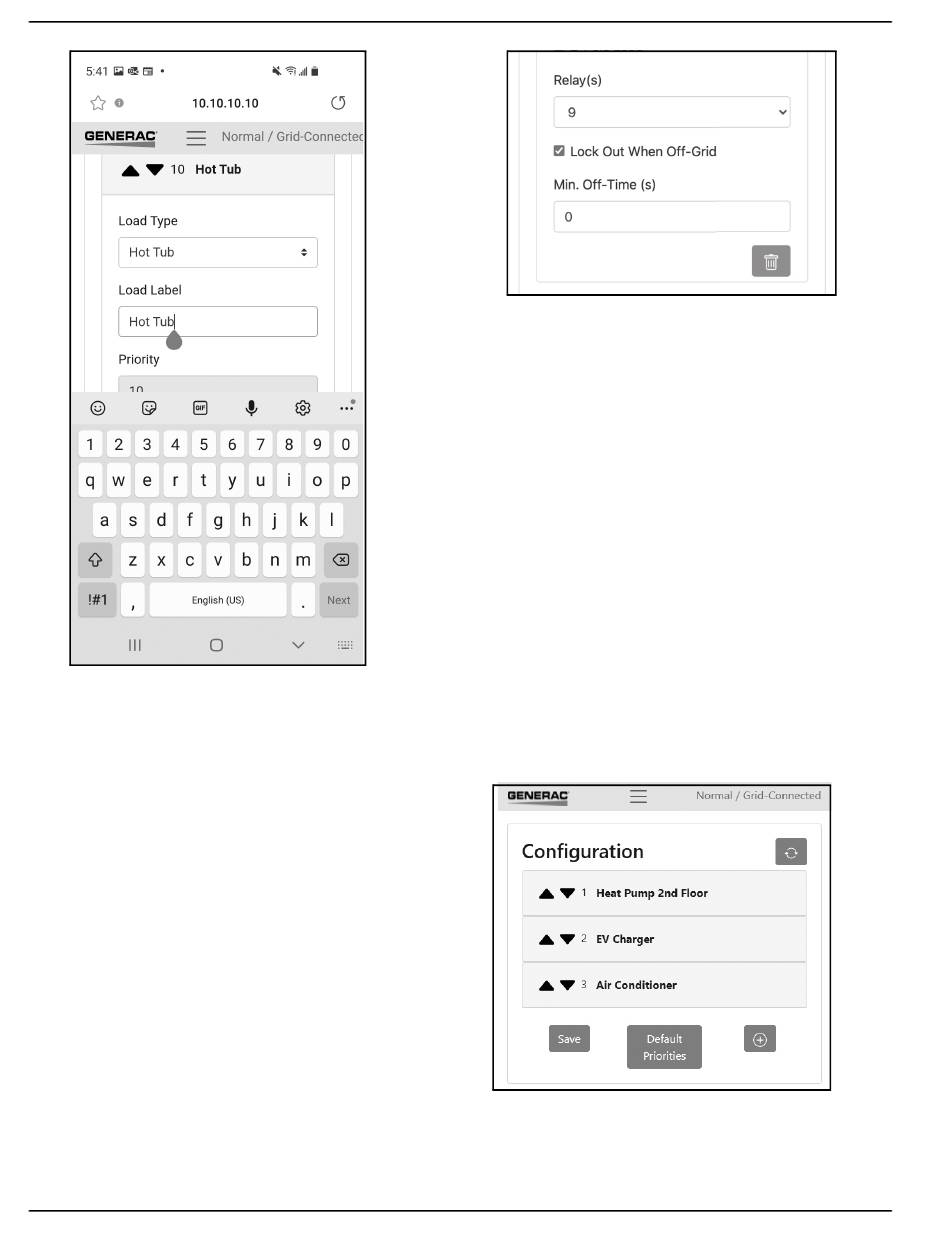

Figure 3-9. Entering the Load Name

Load Type

The Load Type should normally only be adjusted during

installation. If it is desired to change it, refer to the instal-

lation manual for the PWRmanager.

Relay(s) Assigned

Never touch the "Relay(s)" setting for any circuit. Only

use this setting to view which relays are associated with

specific loads in the home. Appliances like the dryer will

typically have two relays assigned. Plugs and lighting

typically use a single relay. This should only be adjusted

by the electrician wiring the unit.

Lockout

See

Figure

3-10. To configure the load to be disabled

while the system is in back up state, select the Lockout

option on the circuit. Lockout loads will be shed immedi-

ately when the grid goes down and will be powered once

again when the grid returns. Use this setting to ensure

the batteries will last long enough during an extended

outage. This is the same as selecting Automatic - Lock-

out in the PWRview app and will be modified by changes

from the app.

Minimum Off Time

Normally, this setting should be configured by the

installer based on the type of appliance on the circuit.

Contact the installer to adjust it. This setting will prevent

damage to some HVAC equipment that requires a mini-

mum off time.

When this setting is checked, the user may see a delay

after trying to enable this load in the PWRview app.
