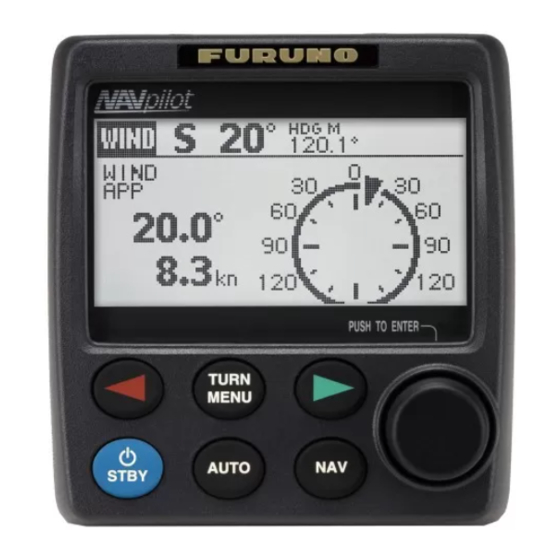

Furuno NAVpilot 711 Installation Manual
  1. Manuals
  2. Brands
  3. Furuno Manuals
  4. Marine Equipment
  5. NavPilot 711
  6. Installation manual

Furuno NAVpilot 711 Installation Manual

Hide thumbs Also See for NAVpilot 711:
Table of Contents

Advertisement

Quick Links

Download this manual
SAFETY INSTRUCTIONS .............................. i
SYSTEM CONFIGURATION ......................... ii
EQUIPMENT LISTS...................................... iii
1.1.1 Surface mount .......................... 1-2
1.1.2 Desktop mount ......................... 1-4
1.2 Processor Unit FAP-7002 ................... 1-5
1.6 Control Unit FAP-7021...................... 1-13
FAP-7822 (option) ............................ 1-13
2. WIRING .................................................. 2-1
2.1 General Wiring.................................... 2-1
2.2 Processor Unit .................................... 2-2
processor unit ........................... 2-2
cable clamps............................. 2-3
connector blocks....................... 2-4
NMEA2000 connection............. 2-5
2.2.6 Teleflex linear sensor ............... 2-8
2.2.8 CAN bus power ........................ 2-8
2.2.9 Connection to TB4.................... 2-9
2.3 Control Unit......................................... 2-9
connections ............................ 2-11
connections ............................ 2-12
2.5 Input/Output Sentences .................... 2-13
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
NAVpilot-700/711/720/711C
Model
www.furuno.com
Installation Manual
AUTOPILOT
3. INITIAL SETTINGS.......................................3-1
Open the Installation Menu........................3-2
3.3 Display Setup ............................................3-4
3.4 Ship's Characteristics Menu ......................3-5
3.5 Dockside Setup Menu ...............................3-6
3.5.1 Dockside setup for RRU..................3-6
setup..............................................3-17
3.6 CAN bus Port Setup ................................3-20
3.7 NMEA0183 Port Setup ............................3-22
3.8 Data Source Setup ..................................3-23
3.9 Universal Port Setup................................3-24
3.10 Sea Trial ..................................................3-26
3.11 Data Calibration.......................................3-28
3.12 PARAMETER SETUP Menu ..................3-29
3.13 AUTO OPTION Menu..............................3-33
3.14 NAV OPTION Menu ................................3-34
WIND OPTION Menu ..............................3-36
3.15.2WIND OPTION menu ....................3-37
3.16 SYSTEM SETUP Menu...........................3-38
3.18 All Clear ...................................................3-39
JIS CABLE GUIDE.........................................AP-1
PACKING LISTS .............................................. A-1
OUTLINE DRAWINGS ..................................... D-1
INTERCONNECTION DIAGRAM..................... S-1
MOUNTING TEMPLATES
..................................3-11

Advertisement

Table of Contents
loading

Related Manuals for Furuno NAVpilot 711

Summary of Contents for Furuno NAVpilot 711

  • Page 1: Table Of Contents

    2.4.1 Example remote controller INTERCONNECTION DIAGRAM..... S-1 connections ......2-11 MOUNTING TEMPLATES 2.4.2 Prohibited remote controller connections ......2-12 2.5 Input/Output Sentences ....2-13 www.furuno.com All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
  • Page 2 The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A : JAN 2010 Printed in Japan All rights reserved. P1 : OCT . 05, 2021 Pub. No. IME-72720-P1 (REFU ) NAVpilot-700 Series...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Please read these safety instructions before you install the equipment. Indicates a condition that can cause death or serious injury if WARNING not avoided. Indicates a condition that can cause minor or moderate injury if CAUTION not avoided. Warning, Caution Mandatory Action Prohibitive Action...

  • Page 4: System Configuration

    SYSTEM CONFIGURATION CONTROL UNIT CONTROL UNIT CONTROL UNIT FAP-7011C FAP-7001 FAP-7011 JUNCTION BOX FAP-7822 CONTROL UNIT QTY FAP-7001/7011: MAX. 6* Select one FAP-7021: MAX. 2 CONTACT SIGNAL IN SOLENOID VALVE CONTACT SIGNAL OUT SHIP'S STEERING HYDRAULIC LINEAR DRIVE PC (for serviceman) SYSTEM* HEADING SENSOR RUDDER REFERENCE UNIT...

  • Page 5: Equipment Lists

    EQUIPMENT LISTS Standard supply for NAVpilot-700 Name Type Code No. Remarks Control Unit FAP-7001 Processor Unit FAP-7002 Rudder Refer- FAP-6112-200 May or may not be supplied ence Unit depending on order. Installation CP64-02900 000-016-414 For Control Unit, w/cable assy. BD- Materials 07AFFM-LR-150 and CP64-02901 CP64-03101...
  • Page 6 Standard supply for NAVpilot-720 Name Type Code No. Remarks Control Unit FAP-7021 Processor Unit FAP-7002 Rudder Refer- FAP-6112-200 w/20 m cable ence Unit Installation CP64-03101 001-082-720 For Processor Unit Materials CP64-02601 009-001-170 For Rudder Reference Unit Spare Parts SP64-01501 001-082-710 For Processor Unit, fuse Accessories FP64-01411...
  • Page 7 Name Type Code No. Remarks Remote FAP-5551 Dial type, w/connector Controller FAP-5552 Dial type, no connector Lever type, w/connector and FAP-6221 w/CP64-01100 Lever type, no connector, FAP-6222 w/CP64-01100 FAP-6231 Dodge type, w/connector FAP-6232 Dodge type, no connector NMEA Data IF-NMEA2K2 Converter VOLVO FAP-6300...
  • Page 8 Name Type Code No. Remarks Termination LTWMC-05BMMT- 000-168-604-10 For CAN bus, micro, male Resistor SL8001 LTWMN-05AMMT- 000-160-508-10 For CAN bus, mini, male SL8001 LTWMC-05BFFT- 000-168-605-10 For CAN bus, micro, female SL8001 LTWMN-05AFFT- 000-160-509-10 For CAN bus, mini, female SL8001 Connector AT06-2S-EC01-VCT- 000-193-626-10 For connection with Yanmar VC10 Assembly...

  • Page 9: How To Install The Units

    1. HOW TO INSTALL THE UNITS Note: For how to install the Control Unit FAP-7011C, see the operator’s manual (OME- 72780). Control Unit FAP-7001/FAP-7011 • The Control Unit can be installed three ways: • Surface mount (fixed from front panel or fixed from rear panel (FAP-7011 only)) •...

  • Page 10: Surface Mount

    1. INSTALLATION 1.1.1 Surface mount There are two types of surface mounts: Fasten from front panel and fasten from rear panel (FAP-7011 only). How to fasten Control Unit from front panel (FAP-7001/FAP-7011) 1. Using the surface mount template at the back of this manual, open a mounting hole in the installation site.
  • Page 11 1. INSTALLATION How to fasten Control Unit from rear panel (FAP-7011 only) 1. Using the surface mount template at the back of this manual, open a mounting hole in the installation site. 2. Set studs (M3x40, 2 pcs, supplied) in the holes marked in the illustration below. (Use only the studs supplied.) Insert stud here.

  • Page 12: Desktop Mount

    1. INSTALLATION 1.1.2 Desktop mount Use the optional bracket installation kit to install the Control Unit on a desktop or the over- head. Bracket installation kit for FAP-7001 Type: FAP-7001-BRACKET, Code No.: 001-082-750 Name Type Code No. Bracket 64-028-1201-1 100-352-221-10 Connecting plate 64-028-1201-1 100-356-381-10...

  • Page 13: Processor Unit Fap-7002

    1. INSTALLATION 6. Attach the hard cover to protect the LCD. Connecting plate Pan head screw (M3x12, supplied) Self-tapping screw (4x16, supplied) Liner Knob Bracket Processor Unit FAP-7002 This unit can be installed on a desktop or on a bulkhead. Select a mounting location con- sidering the following points: •...
  • Page 14 1. INSTALLATION • Make sure there are no objects near the vent. • Leave enough space around the unit for maintenance and servicing. The recom- mended maintenance space appears in the outline drawing at the back of this manual. • Observe the compass safe distances shown in the safety instructions on page i to pre- vent interference to a magnetic compass.

  • Page 15: Rudder Reference Unit Fap-6112

    1. INSTALLATION Rudder Reference Unit FAP-6112 Note 1: This unit is not required for Fantum Feedback or the EVC system equipped boat. For details of Fantum Feedback , see “Fantum Feedback “ (page 1-8). • Leave sufficient space around all moving parts. •...
  • Page 16 1. INSTALLATION Relationship between reversing pump flow rate and steering cylinder capacity The table below shows a rough guideline to determine the proper reversing pump flow rate to match with the hydraulic steering cylinder capacity. Your experience with specific boat designs may cause you to select a pump/cylinder relationship outside of the range of these guidelines.

  • Page 17: Remote Controllers (Option)

    1. INSTALLATION Remote Controllers (option) Two remote controllers may be connected to the Processor Unit. To connect three NFU- (Non-Follow Up) type remote controllers (lever) to the Processor Unit, connect them via the optional Distributor FAP-6800. Keep the remote controllers away from areas subject to rain and water splash. Note: For Fantum Feedback , the remote controller can not be connected.
  • Page 18 1. INSTALLATION Lever-type remote controller FAP-6221/6222 Allow sufficient space around the unit for maintenance. 82.5-87.5 (3.24”-3.44”) (0.63”) (5.51”) (3.94”) (4.52”) (5.2”) (3.94”) (5.2”) (0.63”) (5.51”) To mount the FAP-6221/6212 in a panel, the optional flush mount kit OP64-4 or OP64-5 is required.
  • Page 19 1. INSTALLATION 0.26” (5.9”) (5.4”) MAX.25(0.98”) (5.8”) Hex. nut Spring washer (5.9”) Flat washer (0.06”) Panel frame Rubber ring (5.51”) How to flush mount the FAP-6221 with flush mount kit OP64-4 Hex. nut Spring washer Hex. bolt Pan head screw M3x20 (local supply) Rubber ring...

  • Page 20: Distributor Fap-6800 (Option)

    1. INSTALLATION Distributor FAP-6800 (option) Use the Distributor to connect three Non-Follow Up-type remote controllers to the Proces- sor Unit. Fix the unit to the mounting location with wood screws. For added support, use nuts, bolts and washers (all local supply) instead of the wood screws. 60(2.36”) 37(1.46”) 60(2.36”)

  • Page 21: Control Unit Fap-7021

    1. INSTALLATION Control Unit FAP-7021 The Handheld Control Unit FAP-7021 can be mounted on the bulkhead or desktop using the cradle. When selecting a location for the Control Unit, keep the following in mind. • Mount the unit where shock and vibration are minimal. •...
  • Page 22 1. INSTALLATION This page is intentionally left blank. 1-14...

  • Page 23: Wiring

    2. WIRING General Wiring All units are connected to the Processor Unit. Separate the cables as far as possible from the cables that transmit radio frequency or pulsed signals. At least one meter separation is recommended. Terminator BD-07AFFM-LR7001* (supplied) PROCESSOR UNIT FAP-7002 BD-07AF-07AF-LR-100 Breaker...

  • Page 24: Processor Unit

    2. WIRING Processor Unit All cables are connected in the Processor Unit. To connect the FAP-7021 and FAP-6112 to the Processor Unit directly, remove the connector at the end of their cables. 2.2.1 Connections inside the processor unit Pins are “numbered” from left to right, in ascending order. See the inset in the figure below for details.

  • Page 25: How To Fasten Cables To The Cable Clamps

    2. WIRING 2.2.2 How to fasten cables to the cable clamps Fasten the cables to the processor unit as shown below. There is no specified order to fasten the cables. 1. Remove the outside cover: 1) Hold the right and left sides of the cover. 2) Pull the cover outward and lift to remove.

  • Page 26: How To Put Wires Into The Connector Blocks

    2. WIRING 7. Fasten a cable tie (supplied) to a cable and the “clamp leg”. Connector block Drain wire Vinyl tape Braided shield (If your cable doesn't have a braided shield, wind the copper tape around aluminum foil.) Cable tie Clamp leg Cable 8.

  • Page 27: How To Terminate Of Nmea2000 Connection

    2. WIRING 2.2.4 How to terminate of NMEA2000 connection When the termination of NMEA2000 connection is needed in the NAVpilot, attach the re- sistor assembly (supplied as installation materials) to the NMEA2000 cable in the proces- sor unit. Twist the lead wire of the resistor assembly to the NMEA2000 cable, and solder them as below.
  • Page 28 2. WIRING How to connect a solenoid drive Solenoid valve POWER + POWER - MOTOR A+ MOTOR B- SOL B SOL A Solenoid Solenoid motor How to connect a hydraulic linear drive 1 2 3 SHIELD PWR+ POWER + POWER - MOTOR A+ MOTOR B- SOL B SOL A...
  • Page 29 2. WIRING How to connect the Yanmar EVC system VC10 Note: The IF-NMEA2K2 software version should be 01.07 or later to connect with the Yanmar VC10. Also, set the IF-NMEA2K2 conversion mode to High Speed mode. For de- tails about the conversion mode, see the installation manual (IMC-44591) supplied with IF-NMEA2K2.

  • Page 30: Teleflex Linear Sensor

    The maximum current that can be supplied to the CAN bus network is 1A. Use a “floating power supply” and make sure it meets with CAN bus (NMEA 2000) regulations. For complete information about CAN bus wiring, see the “Furuno CAN bus Network De- sign Guide (TIE-00170-*)” on Tech-Net.

  • Page 31: Connection To Tb4

    2. WIRING 2.2.9 Connection to TB4 TB4 is for contact relay output. The No.1 line is Normal Open, and the No.3 line is Normal Close. For Active Close, use Normal Open; for Active Open use Normal Close. The rated current of the contact is 3A. The maximum acceptable open-close is 50VA. Control Unit Note: For how to connect the Control Unit FAP-7011C with the Processor Unit FAP-7002, see the operator’s manual (OME-72780).

  • Page 32: Remote Controllers (Option)

    2. WIRING • FAP-7021 can be connected at the end of FAP-7001/FAP-7011 Control Unit. FAP-7001/7011 FAP-7021 PROCESSOR UNIT PROCESSOR UNIT BD-07AFFM-LR-150 BD-07AFFM-LR-150 BD-07AF-07AF-LR-100 BD-07AF-07AF-LR-100 BD-07AF-07AF-LR-100 BD-07AF-07AF-LR-100 Termi- nator Remote Controllers (option) The Processor Unit has two ports for connection of two remote controllers. The Distributor FAP-6800 allows you to connect three NFU (Non Follow-Up) type remote controllers to the Processor Unit.

  • Page 33: Example Remote Controller Connections

    2. WIRING 2.4.1 Example remote controller connections No distributor Connect any two remote controllers. FAP-5552, or FAP-6222 PROCESSOR UNIT FAP-5552, or FAP-6222 Dial-type remote controller The distributor cannot be used with the dial-type remote controller. FAP-5552 (dial) PROCESSOR UNIT FAP-5552 (dial) Lever-type remote controller with distributor Connect a maximum of six lever-type remote controllers.

  • Page 34: Prohibited Remote Controller Connections

    2. WIRING 2.4.2 Prohibited remote controller connections The remote controller combinations shown in this section are not allowed. Wrong connection no.1 You cannot connect different types of remote controllers. FAP-6221 (lever) FAP-6221 (lever) FAP-6231 (dodge) PROCESSOR UNIT FAP-6221 (lever) FAP-6231 (dodge) FAP-6231 (dodge) Wrong connection no.2 Connect only one dial-type remote controller.

  • Page 35: Input/Output Sentences

    2. WIRING Input/Output Sentences NMEA0183 Port1, NMEA0183 Port 2, Input Data Sentences(Priority) Remarks Heading(True) THS>HDT>(Heading(Mag)+Mag Var.) NMEA0183 Ver.1.5/2.0/ 200ms inter- Heading(Mag) HDG>HDM>(Heading(True)-Mag Var.) 200ms inter- Mag variation HDG>RMC Position GNS>GGA>GLL>RMC Speed (STW)(VHW)>(SOG)(VTG>RMC) Waypoint Information APB>RMB>(BWR+XTE+AAM)>(BWC+ (Waypoint location) XTE+AAM)>(BOD+XTE+AAM) (XTE) (Waypoint arrival alarm) Note: The following conditions apply: APB or RMB selected: (Bearing and distance to waypoint)
  • Page 36 2. WIRING CAN bus Port, Input PGN Title Actual Pressure 130314 Additional Weather Data 130880 COG & SOG, Rapid Update 129026 Cross Track Error 129283 Direction Data 130577 Direction Data 130577 Engine Parameters, Dynamic 127489 Engine Parameters, Rapid Update 127488 Environmental Parameters (Temperature (Sea, Ambient), Atmospheric 130310 Pressure)
  • Page 37 2. WIRING CAN bus Port, Output PGN Title Browser Control Status 130823 COG & SOG, Rapid Update 129026 Cross Track Error 129283 Environmental Parameters (Temperature (Sea, Ambient), Atmospheric 130310 Pressure) Environmental Parameters (Temperature (Sea, Ambient)) 130312 Environmental Parameters (Temperature (Sea, Ambient), Humidity, 130311 Atmospheric Pressure) GNSS Position Data...
  • Page 38 2. WIRING This page is intentionally left blank. 2-16...

  • Page 39: Initial Settings

    3. INITIAL SETTINGS Note: For initial settings of the NAVpilot-711C, see the operator’s manual (OME-72780). About Initial Settings, Menu Operation This chapter shows you how to enter initial settings, on the [INSTALLATION] menu. The menu contains some items that may not apply to your system. To return to the [INSTAL- LATION] menu, push the MENU key.

  • Page 40: How To Select Language And Units, Open The Installation Menu

    3. INITIAL SETTINGS How to Select Language and Units, Open the Installation Menu 1. Press the POWER/BRILL key (NAVpilot-700) or the POWER/STBY key (NAVpilot- 711/720) to turn on the power. The splash screen appears followed by the startup test and the language selection menu, shown below. The default language is English (USA).
  • Page 41 3. INITIAL SETTINGS 5. [INSTALLATION] is selected. Push the knob to show the [INSTALLATION] menu. Page 2 Page 1 INSTALLATION MENU INSTALLATION MENU LANGUAGE: ENGLISH DATA CALIBRATION UNITS SETUP PARAMETER SETUP DISPLAY SETUP AUTO OPTION SHIP’S CHARACTERISTICS NAV OPTION DOCKSIDE SETUP FISH HUNTER OPTION* CAN BUS SETUP SYSTEM SETUP...

  • Page 42: Display Setup

    3. INITIAL SETTINGS Display Setup The [DISPLAY SETUP] menu lets you set display indications according to your needs, like how to show the date and time. DISPLAY SETUP HEADING FORMAT: HHH° XTE FORMAT: *.** POSITION FORMAT: DD°MM.MM’ HEADING DISPLAY: TRUE DATE DISPLAY: MM DD, YYYY TIME DISPLAY: 24HOUR DATA BOX FORMAT: 2BOXES...

  • Page 43: Ship's Characteristics Menu

    3. INITIAL SETTINGS Ship’s Characteristics Menu The [SHIP’S CHARACTERISITICS] menu sets up the NAVpilot according to boat type, length, cruising speed and rate of turn. SHIP’S CHARACTERISTICS BOAT TYPE: SEMI-DISPLACE RUDDER SENSOR*: INSTALLED BOAT LENGTH: 40ft(12.2m) CRUISING SPD: 30kn RATE OF TURN: 5°/s *: When the [BOAT TYPE] is set to [PLANING] or [SEMI-DISPLACE], [RUDDER SENSOR] is...

  • Page 44: Dockside Setup Menu

    1. The cursor is selecting [SELECT RRU TYPE]; push the knob. ROTARY(INBOARD) 2. Rotate the knob to select correct option then push the knob. LINEAR(OUTBOARD) [ROTARY(INBOARD)]: For FURUNO Rudder Reference Unit FAP-6112. [LINEAR(OUTBOARD)]: For Teleflex linear sensor AR4502. RRU sensor alignment 3.
  • Page 45 3. INITIAL SETTINGS 5. With the rudder physically centered, confirm that the displayed rudder angle indication is less than or equal to ±5. If not, you must adjust the rudder sensor body or magnet position (for Teleflex linear sensor AR4502) so that the indicator is within ±5 before continuing.
  • Page 46 3. INITIAL SETTINGS Note: If you have the Accu-Steer helm sensor, the message “A HELM SENSOR IS INSTALLED. SAFE HELM AND POWER ASSIST IS AVAILABLE. PUSH ENTER TO CONTINUE.” appears before the above popup message. Push the knob to show the above message.
  • Page 47 3. INITIAL SETTINGS Note 2: If the setup failed, one of the following messages appears. Re-do the rudder limit setup. If the message appears again, re-adjust the RRU. See page 1-7 for the rotary sen- sor. For the linear sensor, see its manual. •...
  • Page 48 3. INITIAL SETTINGS Rudder test For power steering vessels with an engine driven power steering pump, the engines must be running and slightly above idle before this test is done. BEFORE doing this test, check that [RUDDER DEADBAND] in the [SEA TRIAL] menu is set to [AUTO]. 26.Go back to the [DOCKSIDE SETUP] menu, select [RUDDER TEST] then push the knob.

  • Page 49: Dockside Setup For Fantum Feedback Tm

    3. INITIAL SETTINGS • [RUDDER DEADBAND]: [OK] or [BIG] • [RUDDER SPEED]: [OK], [SLOW], or [FAST] Note 1: If the rudder deadband is higher than 1.3, the boat cannot be controlled cor- rectly. Check for air in the steering system and if the rudder speed is greater than 10/s.
  • Page 50 3. INITIAL SETTINGS 3. The cursor is selecting [NO]; push the knob. Rotate the knob to select [YES] then push the knob to show the following message. AIR BLEEDING PUSH ARROW KEYS TO ENABLE PUMPSET PUSH MENU KEY WHEN DONE 4.
  • Page 51 3. INITIAL SETTINGS 11.Do one of the following. • If the rudder reached the hard limit properly: Push the knob. • If the rudder did not reach the hard limit properly: Press the MENU key to show the following message. RUDDER TEST IS UNCOMPLETED.

  • Page 52: How To Set The Safe Helm Mode And Power Assist Mode

    3. INITIAL SETTINGS • [RUDDER DRIVE LEVEL]: The amount of helm operation required to move the rud- der. Note: Do not turn the power off within two seconds after finishing the rudder test. If the power is turned off accidentally, retry the rudder test. 16.Press the MENU key to finish the rudder test.
  • Page 53 3. INITIAL SETTINGS 6. Push the knob to show the result of the helm sensor test. HELM SENSOR TEST UNIVERSAL INPUT1: STBD* UNIVERSAL INPUT2: PORT* PUSH ANY KEY TO RETURN *: “--” is shown when the helm sensor test is not perfo Safe helm/p.assist setup (for Accu-Steer FPS 12V (or 24V) drive) The safe helm and power assist features are available with the Accu-Steer FPS 12V (or 24V) drive unit.
  • Page 54 3. INITIAL SETTINGS 4. Rotate the knob to set the return delay. The setting range is 1-20 seconds. NAV mode: When the data from the helm sensor is not input for the set time, NAV mode is restored. AUTO, WIND mode, etc. (except NAV mode): When cruising straight ahead and the data from the helm sensor is not input for the set time, the previous steering mode is restored.

  • Page 55: Confirmation Of The Dockside Setup

    3. INITIAL SETTINGS 4. Rotate the knob to set the highest speed at which power assist activates. The setting range is 1.0 to 9.9 knots. 5. If you want power assist in the STBY mode, use the knob to set [POWER ASSIST STBY] to [ON].
  • Page 56 3. INITIAL SETTINGS • Confirmation of the AUTO mode at sea. 1) Select the safe area and cruise at low speed. 2) Select the AUTO mode and confirm that NAVpilot controls the vessel properly. • Helm sensor test 1) Select [HELM SENSOR TEST] on the [DIAGNOSTIC] menu. 2) Select [YES] to start the helm sensor test.
  • Page 57 3. INITIAL SETTINGS For Fantum Feedback • Confirmation of the rudder steering 1) Select the AUTO mode at the dockside. 2) Rotate the knob clockwise to set the course. 3) Confirm visually that the rudder turns to starboard. 4) Rotate the knob counterclockwise to set the course. 5) Confirm visually that the rudder turns to port.

  • Page 58: Can Bus Port Setup

    This displays shows the name of the CAN bus equipment connected to the CAN bus port. (In the example illustration, the FURUNO Heading Sensor PG-700 is connected. The series of alphanumerics which follow the model name are the CAN bus unique num- ber.) The name of the device can be changed.
  • Page 59 3. INITIAL SETTINGS This display shows all the NMEA 2000 sentences that the NAVpilot is capable of receiving. The Parameter Group Number (PGN) the NAVpilot is currently receiving are highlighted. 5. Press the MENU key to go back to the [CAN BUS SETUP] menu. 6.

  • Page 60: Nmea0183 Port Setup

    3. INITIAL SETTINGS NMEA0183 Port Setup NMEA0183 SETUP *: Not shown when [BOAT TYPE] is set PORT1 to [EVCS BOAT]. PORT2* 1. The cursor is selecting [PORT1]; push the knob. NMEA0183 PORT1 NAMING: PORT1 OUTPUT FMT: NMEA0183 V3.0 BAUDRATE: 4800BPS SELECT OUTPUT SENTENCE INCOMING NMEA0183 DATA 2.

  • Page 61: Data Source Setup

    3. INITIAL SETTINGS 9. Press the MENU key to return to the [NMEA0183 PORT1] menu. 10.Rotate the knob to select [INCOMING NMEA0183 DATA] then push the knob. INCOMING NMEA0183 DATA This display shows the NMEA0183 sentences currently being received. 11.Press the MENU key twice to return to the [NMEA0183 PORT SETUP] menu. If you have equipment connected to NMEA0183 PORT2, set up the equipment similar to how you set up the equipment in NMEA0183 PORT1.

  • Page 62: Universal Port Setup

    When [AUTO DETECT] is selected to [YES], the NAVpilot automatically detects and connects to data sources within the network. In case of multiple heading sensors, the sensors are prioritized in the order of FURUNO CAN bus heading sensor, other CAN bus heading sensor, NMEA0183 heading sensor. After detecting sensors, [AUTO DETECT] changes to [NO] from [YES].
  • Page 63 3. INITIAL SETTINGS STBY mode. [GO AUTO]: The switch, when operated, puts the NAVpilot in the AUTO mode. [PORT ARROW KEY]: The switch, when operated, controls the  key on the NAVpi- lot. [STBD ARROW KEY]: The switch, when operated, controls the  key on the NAVpi- lot.

  • Page 64: Sea Trial

    NAVpilot because these radars cannot be set for a magnetic heading input and the “Waypoint Lollipop” will only align properly when true heading is used. If you have selected the FURUNO PG-500/700 as a heading sensor, do the procedure below to calibrate the compass and get automatic distortion compensation. Otherwise, go to step 4.
  • Page 65 3. INITIAL SETTINGS • The procedure is not applicable to other heading sensors. • It is not necessary to perform any adjustments locally at the PG-500/700. NAVpilot has full control of these heading sensors. 1. Rotate the knob to select [COMPASS SETUP] then push the knob. COMPASS SETUP SELECT COMPASS: COMPASS CALEB.: NO...

  • Page 66: Data Calibration

    3. INITIAL SETTINGS 4. If the heading data shown on the Control Unit differs from the indication of the ship's compass, apply an offset at [COMPASS OFFSET]. This offset is applied to the head- ing sensor data. For example, if the Control Unit display shows 125 though the ship's compass reading is 120, for example, enter “5”.

  • Page 67: Parameter Setup Menu

    3. INITIAL SETTINGS actual value. For example, if the depth indication is 100 feet and the actual depth is 98 feet, enter -2. Item Range of compensation Item Range of compensation STW* -50 - +50(%) TEMP -10 - +10( C , -18 - +18( F WIND ANG -180.0 - +180.0(...
  • Page 68 3. INITIAL SETTINGS For normal, everyday operation, the [FULL-AUTO] mode is recommended. However, if you want the NAVpilot to steer the boat based on experience-related parameters, but you don't want the pilot to be in “self-learning” mode, choose the [SEMI-AUTO] option.
  • Page 69 3. INITIAL SETTINGS The illustration shown right shows boat's track lines with weather setting 3? and 7?. When 7? is 7° set, for example, the rudder is not driven until the 3° course deviation exceeds 7?. Increasing the set- ting reduces activation of the steering gear, how- ever the boat tends to zigzag.
  • Page 70 3. INITIAL SETTINGS Large course error Intended Counter rudder: course small setting Counter rudder: proper setting The counter rudder feature functions to smoothly return ship's heading toward intended course. Slow Speed Fast Light Load Condition Heavy COUNTER RUDDER High Trim gain Note: [TRIM GAIN] is not shown in case of Fantum Feedback The NAVpilot continually monitors the boat's trim in order to keep the trim sensitivity opti- mum.

  • Page 71: Auto Option Menu

    3. INITIAL SETTINGS 2. Push the knob to the options for [SPEED CALCULATION]. AUTO MANUAL 3. Rotate the knob to select [AUTO] or [MANUAL] then push the knob. For [AUTO] go to step 4. For [MANUAL], do as follows: 1) Rotate the knob to select the current value and push the knob. 2) Rotate the knob to set a value (0.1 - 99.0).

  • Page 72: Nav Option Menu

    Select the source of nav data to use in the NAV SOURCE] mode. See the procedure on the next page. Note: For configurations with more than one data source and including a FURUNO NavNet series MFD, always set the NavNet MFD as [SOURCE2]. [WAYPOINT...
  • Page 73 Note 1: If you have NavNet vx2 equipment connected and it is synchronized with the NAVpilot ([NAVNET2] turned on in the [NAV OPTION] menu), [SOURCE2] is automati- cally selected. Note 2: For configurations with more than one data source and including a FURUNO NavNet series MFD, always set the NavNet MFD as [SOURCE2]. 3-35...

  • Page 74: Fish Hunter Option Menu Or Wind Option Menu

    3. INITIAL SETTINGS 3.15 FISH HUNTER OPTION Menu or WIND OPTION Menu Depending on the setting for [SHIP’S CHARACTERISTICS], the [FISH HUNTER OP- TION] menu or the [WIND OPTION] menu follows the [NAV OPTION] menu. 3.15.1 FISH HUNTER OPTION menu The [FISH HUNTER OPTION] menu lets you preset the parameters for the various turns, which you access with the TURN key (NAVpilot-700) or TURN/MENU key (NAVpilot-711/ 720).

  • Page 75: 2Wind Option Menu

    3. INITIAL SETTINGS 3.15.2 WIND OPTION menu Note: The [WIND OPTION] menu is not shown in case of Fantum Feedback WIND OPTION MODE TYPE: ° WIND TACK RUD ANGLE: 35 WIND DAMPING: ON 5.0SEC ° FIXED TACK ANGLE: 100 ° RATE OF SLOW TACK: 3 °...

  • Page 76: System Setup Menu

    3. INITIAL SETTINGS 3.16 SYSTEM SETUP Menu Page 1 Page 2 SYSTEM SETUP SYSTEM SETUP LOAD DISPLAY SETTINGS: NO KEY BEEP: SAVE ENGINEER SETTING: NO BUZZER VOL: LARGE LOAD ENGINEER SETTING: NO ARROW KEY: DODGE ALARM LOG KEY LOCK: UNLOCK SIM/DEMO: OFF TURN ANGLE: 15 DIAGNOSTIC: OFF...

  • Page 77: Rc (Remote Controller) Setup Menu

    3. INITIAL SETTINGS 3.17 RC (Remote Controller) SETUP Menu RC SETUP REMOTE CONTROLLER1: DISABLE REMOTE CONTROLLER2: DISABLE Note: The [RC SETUP] menu is not shown in case of Fantum Feedback Set the type of remote controller you have as follows 1.
  • Page 78 3. INITIAL SETTINGS This page is intentionally left blank. 3-40...

  • Page 79: Jis Cable Guide

    EX: TTYCYSLA - 4 MPYC - 4 # of cores Designation type Designation type # of twisted pairs TTYCSLA-4 The following reference table lists gives the measurements of JIS cables commonly used with Furuno products: Cable Core Cable Core Diameter Diameter...

  • Page 80: Packing Lists

    ＰＡＣＫＩＮＧ　ＬＩＳＴ 64BB-X-9854 -2 FAP-7001 N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット UNIT 操作部2D FAP-7001 CONTROL UNIT 2D 000-016-411-00 付属品 ACCESSORIES FP64-01401 ﾀｰﾐﾅﾙｺﾈｸﾀ BD-07AFFM-LR7001 TERMINATOR 001-081-140-10 工事材料 INSTALLATION MATERIALS CP64-02900 +ﾅﾍﾞﾀｯﾋﾟﾝﾈｼﾞ 1ｼｭ 3X20 SUS304 SELF-TAPPING SCREW 000-163-884-10 Sﾏｳﾝﾄｽﾎﾟﾝｼﾞ-2D...
  • Page 82 A C K I N G L I S T 64BB-X-9875 -1 FAP-7011C N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット UNIT 操作部1D FAP-7011C CONTROL UNIT 1D 000-023-878-00 付属品 ACCESSORIES ﾀｰﾐﾅﾙｺﾈｸﾀ BD-07AFFM-LR7001 TERMINATOR 001-081-140-10 工事材料...
  • Page 83 ＰＡＣＫＩＮＧ　ＬＩＳＴ 64BB-X-9856 -3 FAP-7021 N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット UNIT 操作部HANDY FAP-7021 CONTROL UNIT HANDY 000-016-413-00 付属品 ACCESSORIES FP64-01411 +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ　1ｼｭ 4X20 SUS304 SELF-TAPPING SCREW 000-158-850-10 ｸﾚｰﾄﾞﾙ(N2.5） 64-028-4004-1 CRADLE(N2.5) 100-356-481-10 図書 DOCUMENT 取扱説明書...
  • Page 84 ＰＡＣＫＩＮＧ　ＬＩＳＴ 64BB-X-9857 -5 FAP-7002 ,FAP-7002-11 ,FAP-7002-20 ,FAP-7002-11C N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット UNIT 制御部 FAP-7002/-11/-20 PROCESSOR UNIT 000-016-419-00 予備品 SPARE PARTS SP64-01501 ﾋｭｰｽﾞ FGMB 125V 4A PBF GLASS TUBE FUSE 000-157-482-10 工事材料...
  • Page 93 24/Nov/09 R.Esumi...
  • Page 94 D-10 Y. Hatai...
  • Page 95 D-11 Y. Hatai hatai 2006.01.19 15:17:00 +09'00'...
  • Page 96 D-12 1/Nov/2011 Y.NISHIYAMA...
  • Page 97 D-13 Jun.  04  ' 03...
  • Page 98 D-14 Jun.  04 ' 03...
  • Page 99 D-15...
  • Page 100 D-16...
  • Page 101 4/Feb/2021 H.MAKI Hiromas 電子署名者 : Hiromasa a Maki Maki 日付 : 2021.02.04 18:32:02 +09'00'...
  • Page 102 8/Feb/2021 H.MAKI Hiromasa 電子署名者 : Hiromasa Maki Maki 日付 : 2021.02.08 12:42:09 +09'00'...
  • Page 103 206 ±0.5 mm(8.11” ±0.02”) 48 ±0.5 mm(1.89” ±0.02”) Pilot hole for 3×20mm self-tapping screw. Cut out shaded area only Control Unit FAP-7001 Surface Mount Template...
  • Page 104 228 ±0.5 mm(8.98” ±0.02”) 218 ±1 mm(8.58” ±0.04”) 208 mm(8.19”) Cut out shaded area only Drill hole of 10mm(0.39”) in dia. Pilot hole for 3×20mm self-tapping screw. Control Unit FAP-7001 Flush Mount Template...
  • Page 105 80 ±0.5 mm(3.15” ±0.02”) 60 ±0.5 mm(2.36”±0.02”) Pilot hole for 3×20 mm self-tapping screw. Cut out shaded area only Control Unit FAP-7011 Drill hole of 3.5 mm(0.14”) 96 ±0.5 mm(3.78” ±0.02”) in dia. Surface Mount Template...
  • Page 106 118 ±0.5 mm(4.65” ±0.02”) 108 ±1 mm(4.25” ±0.04”) Pilot hole for 3×20 mm self-tapping screw. Cut out shaded area only Drill hole of 10 mm (0.39”) in dia. 96 mm(3.78”) Control Unit FAP-7011 Flush Mount Template...

This manual is also suitable for:

Navpilot 700Navpilot 720Navpilot 711cNavpilot 711c/ob-yanNavpilot 711c/ob-optNavpilot 711c/ob-ips ... Show all

Table of Contents
