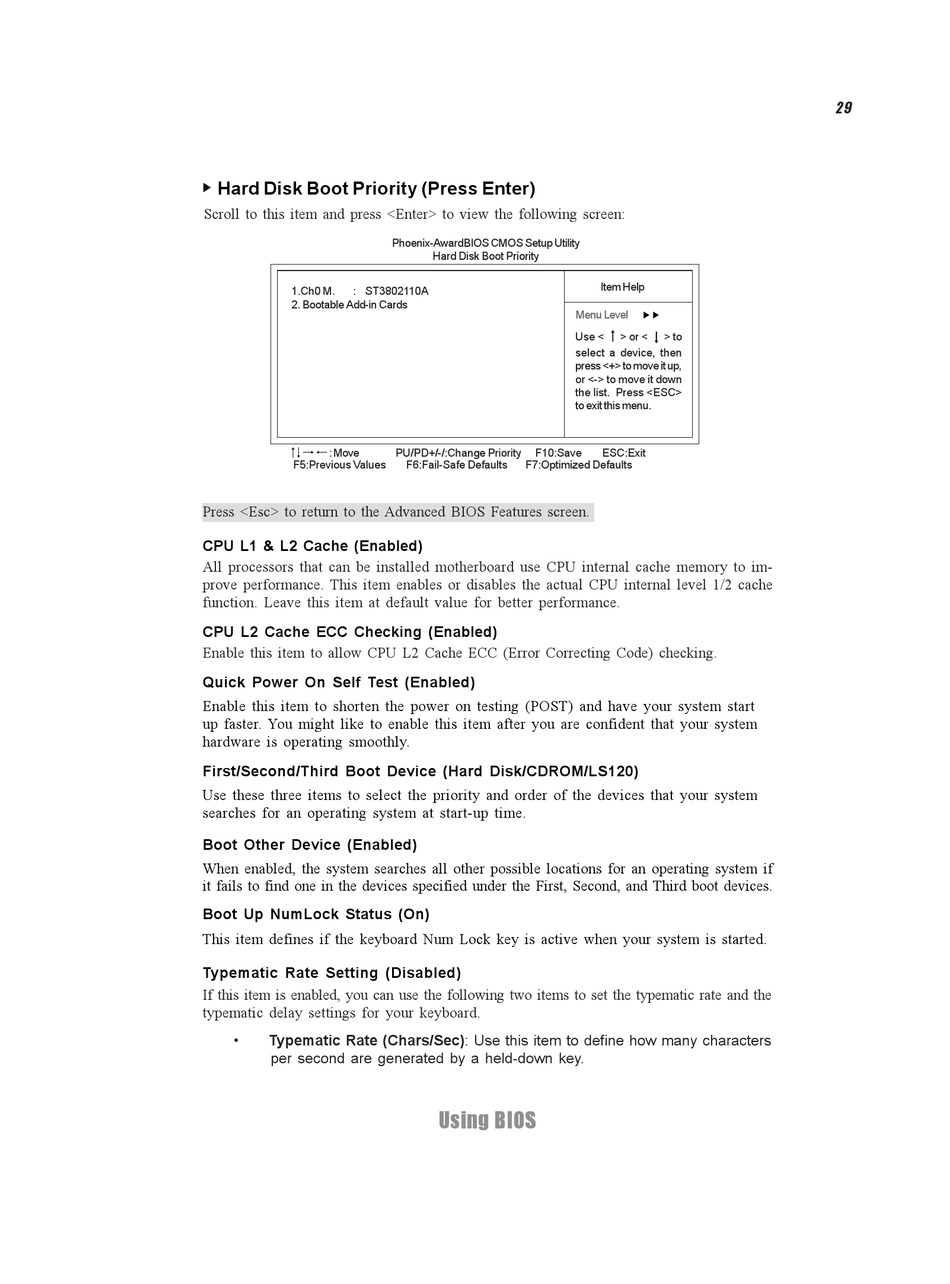

ECS C7VCM2 Manual page 35

Hard Disk Boot Priority (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
1.Ch0 M. : ST3802110A
2. Bootable Add-in Cards
: Move
F5:Previous Values
Press <Esc> to return to the Advanced BIOS Features screen.
CPU L1 & L2 Cache (Enabled)
All processors that can be installed motherboard use CPU internal cache memory to im-
prove performance. This item enables or disables the actual CPU internal level 1/2 cache
function. Leave this item at default value for better performance.
CPU L2 Cache ECC Checking (Enabled)
Enable this item to allow CPU L2 Cache ECC (Error Correcting Code) checking.
Quick Power On Self Test (Enabled)
Enable this item to shorten the power on testing (POST) and have your system start
up faster. You might like to enable this item after you are confident that your system
hardware is operating smoothly.
First/Second/Third Boot Device (Hard Disk/CDROM/LS120)
Use these three items to select the priority and order of the devices that your system
searches for an operating system at start-up time.
Boot Other Device (Enabled)
When enabled, the system searches all other possible locations for an operating system if
it fails to find one in the devices specified under the First, Second, and Third boot devices.
Boot Up NumLock Status (On)
This item defines if the keyboard Num Lock key is active when your system is started.
Typematic Rate Setting (Disabled)
If this item is enabled, you can use the following two items to set the typematic rate and the
typematic delay settings for your keyboard.
• Typematic Rate (Chars/Sec): Use this item to define how many characters
per second are generated by a held-down key.
Phoenix-AwardBIOS CMOS Setup Utility
Hard Disk Boot Priority
PU/PD+/-/:Change Priority F10:Save
F6:Fail-Safe Defaults F7:Optimized Defaults
Using BIOS
Item Help
Menu Level
Use < > or < > to
select a device, then
press <+> to move it up,
or <-> to move it down
the list. Press <ESC>
to exit this menu.
ESC:Exit
29
