10

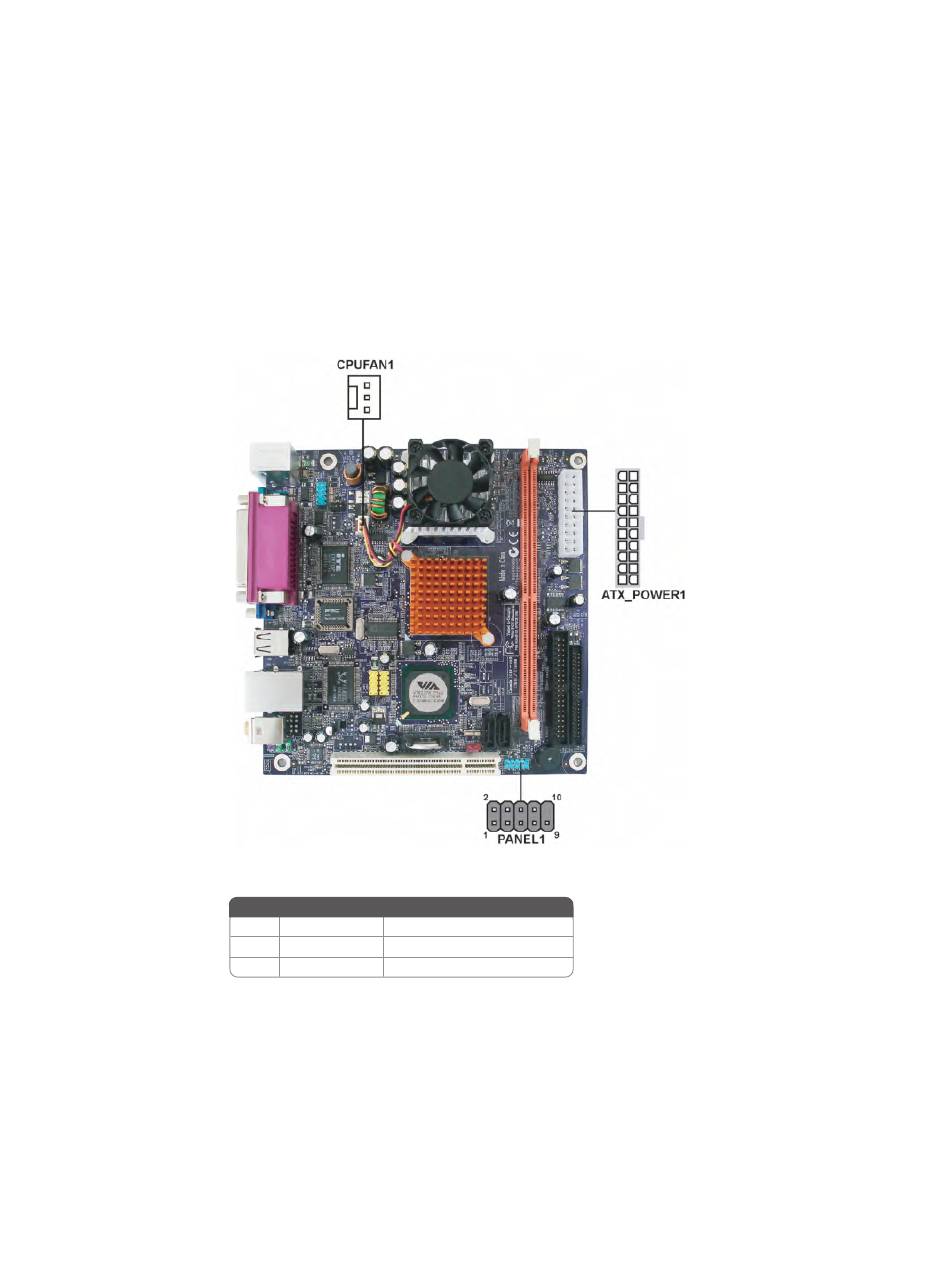

Connecting Case Components
After you have installed the motherboard into a case, you can begin con-
necting the motherboard components. Refer to the following:
1
Connect the CPU cooling fan cable to CPUFAN1.
2
Connect the case switches and indicator LEDs to the PANEL1.
3
Connect the standard power supply connector to ATX_POWER1.
CPU_FAN1: FAN Power Connector
Pin
1
2
3
Signal Name
Function
GND
System Ground
+12V
Power +12V
Sense
Sensor
Installing the Motherboard
