WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury,
death, or property damage.
— Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any
phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a qualified
installer, service agency or the gas fitter.
Installation & Maintenance Manual
Distinction

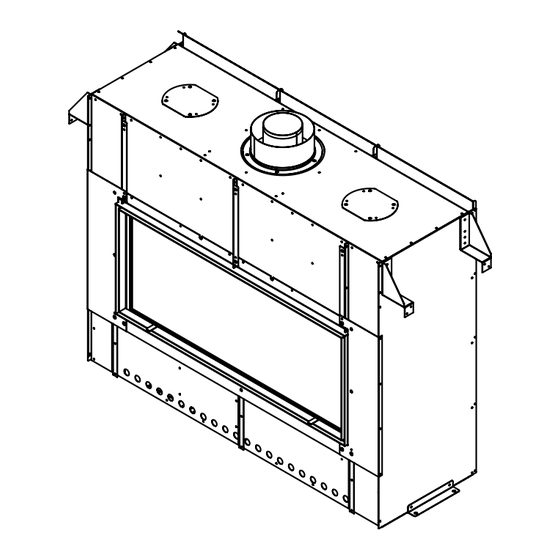

INDOOR DIRECT VENT GAS FIREPLACE
D3615, D3615ST
Natural Gas or Propane Gas
D4815, D4815ST
Natural Gas or Propane Gas
D7215, D7215ST
Natural Gas or Propane Gas
®
C
US
Installation and service must be performed by a qualified installer,
service agency or the gas fitter. Check local codes and read all
instructions prior to installation.
NOTICE
Installer: Leave this manual with the appliance. Please refer to the
Montigo website for the most current version of the fireplaces manual
Consumer: Retain this manual for future reference. Please refer to the
Montigo website for the most current version of the fireplaces manual
WARNING
Some materials used in the manufacturing process of this product can
expose you to Benzene which is known in the State of California to
cause cancer and birth defects or other reproductive harm. For more
information go to www.P65warnings.ca.gov
XG0222
Advertisement
Table of Contents
Related Manuals for Montigo D3615
Summary of Contents for Montigo D3615
- Page 1 Installer: Leave this manual with the appliance. Please refer to the Montigo website for the most current version of the fireplaces manual Consumer: Retain this manual for future reference. Please refer to the Montigo website for the most current version of the fireplaces manual...
-
Page 2: Safety Alert Key
Introduction Congratulations on your purchase of a Montigo Fireplace. With over 30 years of experience, Montigo is committed to providing you with a gas fireplace that is not only a beautiful addition to your Can reduce Unit Code... -
Page 3: Table Of Contents
Rating Plate Sample ........................6 Driftwood Logset confiuration ....................29 Section 1: Product Dimensions ....................7 Log Kit Installation ........................29 D3615 Single Sided Driftwood Kit..................30 Section 2: Framing ........................8 D3615ST See Through Driftwood Kit ..................30 Clearances ..........................8 D4815 Single Sided Driftwood Kit.................. -
Page 4: Section A: Before You Begin
NOTICE • Should it be impossible to meet the venting requirements laid out in Section 3: Venting, please contact your Montigo dealer regarding the use of a Montigo Power Vent. Do not use this appliance if any part has been under water. -
Page 5: Standard Installation Checklist
Customer Date Installed: Install Address: Location of Fireplace: Installer: Dealer Phone: Model (circle one): D3615, D3615ST, D4815, D4815ST, D7215, D7215ST Serial #: IF NO, WHY NOT? Appliance Install: Section 2 Framing complies with install manual. Standoffs have been installed. Proper clearances have been maintained. -
Page 6: Rating Plate Sample
General Rating Plate Sample Figure 1 Rating Plate for D7215 Figure 1.b Rating Plate for D7215ST XG0222... -
Page 7: Section 1: Product Dimensions
General Section 1: Product Dimensions SINGLE SIDED SEE THROUGH Figure 2. Distinction Fireplace dimensions (Tolerance ± ⅛"). Figure 2.b Distinction Fireplace dimensions (Tolerance ± ⅛"). D3615 SINGLE SIDED DIMENSIONS D3615 SEE THROUGH DIMENSIONS 517/8 517/8 173/8 403/4 593/4 377/8 151/2... -
Page 8: Section 2: Framing
1215.161 Non-Combustible stud, DL72097-20 16 " 16 " Horizontal DL72-Non-Combustible stud, DL72098-20 Vertical 2432 DL72-Non-Combustible Stud DL72099-20 813/16'' .5'' 89'' D3615 4 " Connector D3615ST 813/16'' 89'' 813/16'' .5'' 89'' D4815 DIMENSIONS ARE IN INCHES NAME DATE Description TOLERANCES: DL72ST-Non Combustible Framing FRACTIONAL 1/32"... -
Page 9: Framing The Single Sided Fireplace
Installation Framing the Single Sided Fireplace Framing the See-Through Fireplace Minimum Minimum chase chase height height 89” 89” D3615 SINGLE SIDED DIMENSIONS D3615 SEE THROUGH DIMENSIONS 4915/16 21/4 411/16 593/4 171/2 107/8 407/8 171/8 129/16 5311/16 4915/16 21/4 411/16 593/4... -
Page 10: Cement Board Recomendations
2 " It is highly recommended to apply high temp resistant RTV Silicone where cement board touches fireplace body. At least 48h cure time 13" before applying finishing or firing fireplace D3615 CEMENT BOARD DIMENSIONS 107/8 407/8 171/8 129/16 5311/16... -
Page 11: Chase Venting
Installation Chase venting TV recess framing At a minimum, a 120 square inch opening is required in the finished enclosure to keep temperatures within a safe level. This can be achieved 3" Min. from in a variety of ways such as the few shown below. ceiling The recess MUST be made from... -
Page 12: Framing With Cool Wall Advantage
Installation Framing with Cool Wall Advantage Below are basic instructions on the framing of the Cool Wall advantage kit. More detailed instructions including the installation diagrams are included with the kit. 1678 see unit 2015.73 2015.73 framing 79.4 79.4 16 " width 1653 1678 16 "... -
Page 13: Section 3: Venting
• Montigo recommends the use of a flex section for the final pipe connected directly to the fireplace offering greater flexibility of installation and absorption of movement. -
Page 14: Section 3-3-2: Venting Components
NOTICE The following components and associated Montigo part numbers are for installation of a roof or wall mounted termination. Use of non-Montigo approved parts will VOID the warranty and may impede operation of Reducing to 4/7 requires a reducer that is not supplied with the the fireplace. -
Page 15: Section 3-3-1: Venting Layouts
Installation NOTE: If using a restrictor, use an IR gun to measure the glass For vertically terminated vent runs: temperature after 1 hour of running, and ensure the glass temperature Vertical runs require ordering the PVVR8 or PVVR15 restrictor. Lengthy is within limits and ensure that none of the media and no part of the vertical runs will require the PVVR25 vertical vent restrictor (all installed door has discoloured. -
Page 16: Horizontal Termination - 2 Elbows
Installation Horizontal Termination - 2 Elbows Horizontal Section 3-2-1: Roof Venting termination Termination - 2 • The maximum termination point is 32’ above the fireplace (NOTE: Elbows if the maximum termination height is used, the flame pattern may be affected). •... -
Page 17: Section 3-3: Installing A Wall Mounted Termination
NOTE: If subject to a highly corrosive environment A Termination with a MOSR Frame is installed from the inside of the i.e. Seaside, Montigo recommends using Stainless Steel Termination. structure. These are commonly used in high-rise construction. -
Page 18: Section 3-3-3: Heat Sheilds
Installation Section 3-3-3: Heat Sheilds Installing a Wall Mounted Heat shield Drywall / sheetrock RHS10* Heat Shield Outer Section The RHS10* Heat shield must be used if vent pipe passes through a RHS10* Heat Shield, inner Section wall or ceiling within 6' of the unit. Termination Vent pipe, from fireplace To install the Heat shield, Slide the Inner Section over the vent pipe that... -
Page 19: Section 3-3-2.2: Alternate Venting Components 5"/8
Installation The following components are approved for use with Montigo products. Please contact your local Montigo dealer for further information. Section 3-3-2.2: Alternate Venting Components 5"/8" Component Duravent Part Number ICC Part MetalFab Part Number Selkirk Flexmaster Montigo Part Number... - Page 20 Section 3-3-2.2: Alternate Venting Components 4"/7" (For reduced D36 and D48 units) The following venting components are approved for use with Montigo products. Please contact your local Montigo dealer for further information. Component...
-
Page 21: Flexmaster As Alternate Venting
Flexmaster Flex includes all and any prepackaged vent kits by Montigo containing Flexmaster venting. All Montigo prepackaged vent kits may be used on any Montigo residential unit fireplace. When using a Power vent you must use Montigo pipe only. VERTICAL THROUGH THE ROOF: HORIZONTAL FLEX RUN REQUIREMENTS: Follow venting graph for each model as required. -
Page 22: Propane Conversion
Installation Propane Conversion Tools required To convert the Distinction 2. Loosen the 4 screws securing the burner strip to the stands. from Natural Gas to Propane, 1). Torx T20 Screw Driver Bit use the table below to determine the necessary 2). 3/8" Socket Driver kit. - Page 23 Installation Burner tray Removal Power and gas to the unit MUST be disconnected before installing 4. Carefully slide out burner strip from the firebox. For instructions on how to remove the door please see the door install/removal section. 1. Unscrew and remove the pilot cover from the burner tray. Figure 12.
- Page 24 Installation 6. Remove pilot hood, then use allen key to remove pilot orifice. 9. The manifold and inlet pressure can be verified by using a manometer and a 1/8” rubber hose attached to the valve ports shown here (top is manifold, bottom is inlet) Figure 13.e Removing the pilot hood, orifice 7.
-
Page 25: Section 4: Wiring
Installation Section 4: Wiring Distinction (N/L) I-2 Wiring Diagram BATTERY BATTERY PACK PACK 1.5V AA type 1.5V AA TYPE TO MAIN POWER 1.5V AA TYPE 1.5V AA type SPARK SPARK GREEN GREEN 1.5V AA TYPE 1.5V AA type MAIN WHITE WHITE BLACK Power... -
Page 26: Pod - Pilot On Demand
Installation POD - Pilot on Demand What is POD and CPI mode? Installing the CPI Jumper Cable This fireplace is equipped with an “On Demand” intermittent pilot 1). Access the control box. ignition system (IPI) which also includes a continuous pilot ignition (CPI) mode with an integrated seven day timer. In IPI mode, the pilot will light before the main burner, when the appliance is turned on using a wall switch, remote or from a thermostat. -
Page 27: Section 5: Installing The Gas Line
Installation Section 5: Installing the gas line Fuel Type DANGER Verify that your fireplace is compatible with your available gas type. Natural Gas or Propane shown by "N" or "L" in your model number on rating plate. See instructions on converting to propane. After gas line is connected, each appliance connection, valve and valve train MUST be checked while under normal operating pressure Gas Pressure... -
Page 28: Reinstalling The Screen
Installation Section 8: Removing & Installing the Screen / Door Removing the Screen Removing the door Follow the steps below to remove, or install the fireplace screen and The Distinction doors are removed in a few simple steps. Follow these door. Before beginning any screen or glass removal, make sure that the steps below to unlatch the door buckles and remove the door. -
Page 29: Section 9: Installing The Media
Do not cover the pilot with any media Figure 22. Do not cover the pilot with any media Firestone & Fireglass Quantity Firestone & Fireglass Quantity Unit Bags Needed D3615 D4815 D7215 Optional speckled stones Speckled stone quantity Unit Stones needed Order code D3615... -
Page 30: D3615 Single Sided Driftwood Kit
Installation D3615 Single Sided Driftwood Kit LGS60: LOG A LGS60: LOG B LGS60: LOG C LGS60: LOG D LGS59: LOG B LGS59: LOG A LGS59: LOG F LGS59: LOG D LGS59: LOG C LGS59: LOG E D3615ST See Through Driftwood Kit... -
Page 31: D4815 Single Sided Driftwood Kit
Installation D4815 Single Sided Driftwood Kit LGS61: LOG A LGS61: LOG D LGS59: LOG C LGS61: LOG C LGS61: LOG B LGS59: LOG B LGS59: LOG E LGS59: LOG F LGS59: LOG A LGS57 LGS57 LGS59: LOG D D4815ST See Through Driftwood Kit LGS59: LOG F LGS59: LOG C LGS59: LOG E... -
Page 32: D7215 Single Sided Driftwood Kit
Installation D7215 Single Sided Driftwood Kit LGS58: LOG F LGS59: LOG E LGS59: LOG C LGS58: LOG C LGS57 LGS58: LOG D LGS57 LGS59: LOG A LGS58: LOG A LGS58: LOG B LGS59: LOG F LGS58: LOG E LGS59: LOG D LGS59: LOG B D7215 See-Through Driftwood Kit LGS59: LOG B... -
Page 33: Distinction (N/L) I-2 Wiring Diagram
Installation Control Board upgrade/replace 4. New Board. Adding options to DL units requires control board upgrades for the following Pilot When upgrading the options Distinction control board, Fan Kit DFK-* the board will be shipped On/Off with the board installed in LED Kit MCLEDDL** Switch the drawer and with the Remote Control... - Page 34 Installation 5. Feed On/Off switch 6. Feed Fan, LED, PPO, 9. Place on LED wire on rightside firebox floor with adhesive through drawer frame and pilot wires through wire pad. For LED Install instructions see Optional LED kit drawer frame. Install/Replace instructions Figure 24.e On/Off switch through drawer Figure 24.f Fan, LED, PPO, and pilot wires...
-
Page 35: Led Strip Instructions
Installation LED Strip Installation LED Strip Instructions 4. Place Glass plate where metal plate sat before, secure using Power to the unit MUST be disconnected before installing existing metal brackets. Screw in halfway on one side first, then fully on the other side, then fully tighten first side. For instructions on how to remove the door please see the door install/removal section. -
Page 36: Glass Reflective Panels
Installation Decorative panel Installation Glass reflective panels Fluted panels SEE-THROUGH UNITS NOTE: see through units panel kits include only SEE-THROUGH UNITS NOTE: see through unit panel kits include only the two side panels, follow step 2 of the below to complete installation. the two side panels, follow step 4 of the below to complete installation. Step 1: Slide back panel(s) into top track, carefully push the base of the Step 1: Bend tabs on bottom Step 2: Place back liners, making... - Page 37 Installation should be carried out in a clean environment. WARNING! This modulating conversion kit must ONLY be applied as part of a conversion kit supplied by montigo for the specific appliance, and type of fuel, being converted. WARNING! Correct operation of the system cannot be guaranteed if the conversion kit or valve has been dropped or has sustained a strong impact.
-
Page 38: Before You Begin
Installation Fan kit Install/Replace 3. Repeat for the remaining fans, making sure connectors are on the right side. Figure 27.d secure the fans Figure 27. Fan kit 4. Locate fan wiring harness. Before you begin This kit requires a Proflame 2 control board. For burner and media tray removal instructions please see burner tray removal To Fan instructions. - Page 39 Operation DANGER HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL COOLED. NEVER ALLOW CHILDREN TO TOUCH GLASS. A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and must be installed for the protection of children and other at-risk individuals.
-
Page 40: Section 7: Finishing The Fireplace
2x4 and 13" platform noted in the framing section. The board will not fit if the unit is placed directly on D3615, D3615ST D4815, D4815ST D7215, D7215ST the floor. 10⅞ 10⅞... -
Page 41: Mantels, Combustibles And Tv
Installation Mantels, Combustibles and TV Mantels, Combustibles and TV without Cool Wall Advantage w/ Cool Wall Advantage The opening should be a minimum of 38” from the top of the fireplace and a minimum of 3” 2" min. chase opening to ceiling from the ceiling 4" min. Chase opening must add up to at least 120" WIRE MESH Combustible facing Combustible facing... -
Page 42: Sidewall Clearances
Installation Sidewall clearances Side wall clearances are 6". Combustible surrounds may be installed with 6" clearance to the side of the fireplace as shown. TOP OF UNIT Edge of door frame Sidewall 6" Min. NOTICE 6" clearance in sidewall drawing does not apply to recession, unit cannot be recessed into a wall. -
Page 43: Remote Operation
Operation Remote Operation The Proflame 2 System consists of the following elements: 1. Pilot Assembly Blue Back lit LCD display 2. Proflame Gas Valve. 3. Proflame 2 Control Module On/Off Key 4. Wiring Harness Thermostat Key 5. Variable Speed fans Up/Down Arrow Key 6. -
Page 44: Initializing The System For The First Time
Operation Initializing the System for the first time Turn Off the Fireplace 1. Set master override switch to off position. 2. Install four (4) AA batteries into the battery holder. With the system On, press the On/Off Key on the 3. -
Page 45: Room Thermostat (Remote Control Operation)
Operation Room Thermostat (Remote Control Disabling Thermostat Operation) Some jurisdictions and bedroom installations require the thermostat to be disabled. The Remote Control can operate as a room thermostat. The thermostat can be set to a desired temperature to control 1. Partially take out one battery. Insert the battery while holding the comfort level in a room. -
Page 46: Led Remote Control Operation
Adjustable Unadjustable moving along the wheel until the desired color is displayed White color gradual changes Adjustable Adjustable Montigo’s Distinction series fireplaces have integrated LED lighting All colors gradual change Adjustable Adjustable installed beneath the burner tray. The LEDs are controlled by the Red/green/ blue three colors included remote. The fireplace burner does not need to be lit for... -
Page 47: Pairing The Remote To The Module (Code Clearing And Code Matching)
Pairing the Remote to the Module (Code Clearing and Code Matching) Montigo ships the fireplace with a functional LED system, but, if you need to pair an alternate remote, follows these steps: 1. Switch off the power. Wait until power supply led indicator goes off. -
Page 48: Section 10: Cleaning And Maintenance
Operation Section 10: Cleaning and Maintenance General Cleaning • Have the fireplace and installation inspected yearly. The When the fireplace is first activated, there may be some smoking inspection must include, but is not limited to, the following: and a visible film may be left on the glass. This is a normal condition, and is the result of burning of protective coatings on new metal. -
Page 49: Indoor Fireplace In Protected Outdoor Applications
Appendix Indoor fireplace in protected outdoor applications This fireplace may be installed into outdoor locations provided they are suitably protected from direct water impingement. However, all installation clearances in the appliance manual must be observed. Framing, Clearances to Combustibles, Mantel Heights, Facing Requirements, Venting Installation, etc. -
Page 50: Appendix A: Venting Terminations
Appendix Appendix A: Venting Terminations Covered Covered Alcove Detail Alcove Detail Vinyl Siding 2’ 2’ 2’ 2’ 17.5’’ 29.5’’ 11.5’’ 17’’ Must use Vinyl Siding Termination Shield Location Canada* USA** clearance to the termination frame above grade, veranda, porch, deck, or balcony 12 inches 12 inches clearance to top of doors or operable windows... -
Page 51: Appendix B: Warranty
(collectively referred to herein as "The Companies"), warrants the If the components of the appliance covered by this warranty Montigo gas appliance (referred to herein as 'the appliance') to are found to be defective within the time frame stated (see The... -
Page 52: Appendix B: Warranty Continued
Montigo dealer (www.Montigo.com) or contact Montigo direct at techsupport@ montigo.com. Ensure you have your sales receipt and the model and serial number of your appliance. DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF If you cannot locate the installing dealer, or nearest dealer/ distributor, you must notify The Companies in writing. -
Page 53: Appendix C: Amendment
Appendix Appendix C: Amendment (Gas Fireplace / Equipment sold in the State of Massachusetts) 5.08: Modifications to NFPA-54, Chapter 10 (1) Revise NFPA-54 section 10.5.4.2 by adding a second exception as 4. INSPECTION. The state or local gas inspector of the side wall follows: horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes... - Page 54 Installation & Maintenance Manual DISTINCTION DISTINCTION Vented gas fireplace heater Vented gas fireplace heater XG0222...
