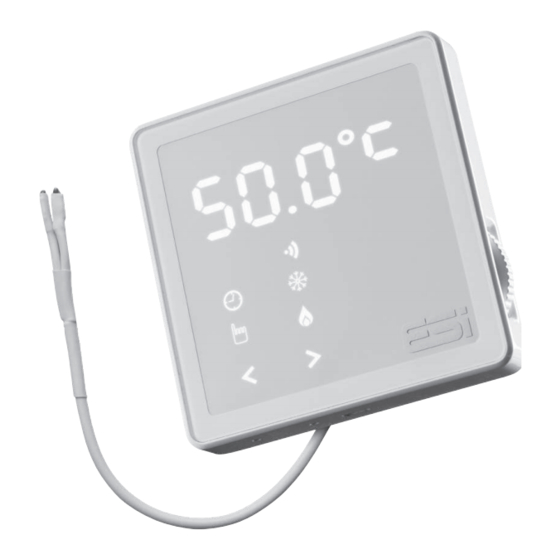

- Page 1 ESCTP5-RF and ESCTP5-W Programmable Cylinder Thermostat Installation instructions...
- Page 2 Thank you for choosing ESi Controls. All our products are tested in the UK so we are confident this product will reach you in perfect condition and give you many years of service. However, for additional peace of mind, we recommend you register your product online at www.esicontrols.co.uk/warranty for your...
-
Page 3: Table Of Contents
Contents Installation instructions 1. Technical specification Parameter settings Thermostat technical settings 2. Installation instructions Installation safety instructions General safety instructions Warning notices Maintenance Fitting the programmable cylinder thermostat Installing the programmable cylinder thermostat Wiring diagram 3. Main settings Menu settings... -
Page 5: Installation Instructions
Installation instructions... -
Page 6: Technical Specification
1. Technical specification Parameter settings Auto mode Set temperature 25°C - 65°C (Default: 55°C) Program event start/end time 00:00 - 23:50 (User manual section 6) Program operation mode 5/2 day, 7 day, 24hr (Default: 5/2 day) Number of programs 2 or 3 (Default: 2) Manual mode Manual mode temperature 25°C - 65°C (Default: 55°C) -
Page 7: Thermostat Technical Settings
Thermostat technical settings Power supply 230VAC, 3(1)A SPDT Temperature sensor accuracy +/- 1°C at 20°C Total switch rating 3(1)A 230VAC Plastic type Thermoplastic, flame retardant Protection rating IP30 Dimensions 95mm (L) x 95mm (W) x 39mm (D) BST/GMT Time change Automatic yes, (See section 6 of user manual) Factory pre-set programme... -
Page 8: Installation Instructions
2. Installation Installation safety instructions The unit must be installed by a suitably qualified person in accordance with the latest IEE Wiring Regulations. Isolate mains supply before commencing installation. Please read all instructions before proceeding. Ensure that the fixed wiring connections to the mains supply is via a fuse rated at not more than 3 Amps and Class ‘A’... -
Page 9: Maintenance
Maintenance Always isolate the mains supply before commencing any work, servicing or maintenance on the system. And please read all instructions before proceeding. Arrange for an annual maintenance and inspection schedule to be carried out by a qualified person on every part of the heating and hot water system. - Page 10 Installing the programmable room thermostat 1. Use a flat headed screwdriver to press the fastener at the top of the unit, then gently loosen from the unit, unhooking from top to bottom. 2. Fix the wall mount plate, into the cylinder itself or into a wall nearby, ensuring that the temperature probe will reach the cylinder temperature probe dry pocket.
-
Page 11: Wiring Diagram
Wiring diagram Check your boiler wiring diagram for the connection requirements. The wiring diagram below cover the most common connection methods. Incorrect wiring can cause damage to the boiler and the thermostat. VOLT-FREE S/L (Switched Live) BOILER BOILER COM NC NO COM NC Main Supply Main Supply... -
Page 12: Main Settings
3. Main settings Menu settings 1. In the home screen, press and hold until the displays shows tInE then release to enter main menu. 2. Use the dial to choose from the options below, press enter desired setting. Press to return to home screen. tInE: Set time and date. - Page 14 We are continuously developing our products to bring you the very latest in energy saving technology and simplicity. However, should you have any questions setting up your controls please email us at sales@esicontrols.co.uk or for technical queries call us on our dedicated technical helpline 01280 816868.
- Page 15 WARNING: Interference with sealed parts renders the guarantee void. In the interests of continuous product improvement we reserve the right to alter designs, specifications and materials without prior notice and cannot accept liability for errors.
- Page 16 Version 1.001 © ESi Controls Ltd 2021...
