ESI ESCTP-RF User Instructions

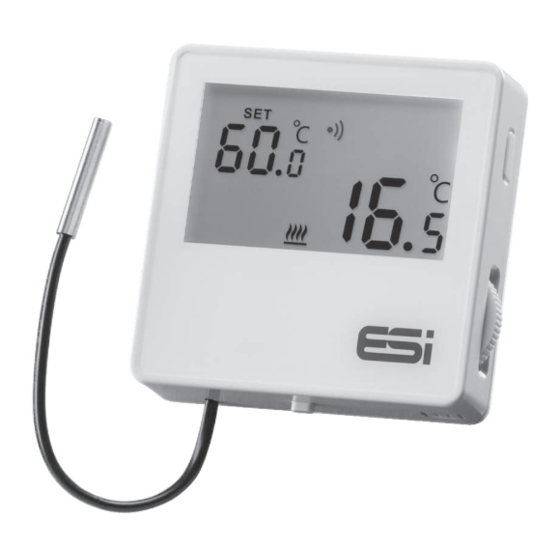

Programmable cylinder thermostat
Hide thumbs Also See for ESCTP-RF:
Table of Contents

Advertisement

Quick Links

Download this manual
ESCTP-RF
Programmable Cylinder
Thermostat
User instructions

Advertisement

Table of Contents
loading

Related Manuals for ESI ESCTP-RF

Summary of Contents for ESI ESCTP-RF

  • Page 1 ESCTP-RF Programmable Cylinder Thermostat User instructions...
  • Page 2 Thank you for choosing ESi Controls. All our products are tested in the UK so we are confident this product will reach you in perfect condition and give you many years of service. However, for additional peace of mind, we recommend you register your product online at www.esicontrols.co.uk/warranty for your...

  • Page 3: Table Of Contents

    Contents User instructions 1. Quick operating guide Display and button functions 2. Operation modes Manual Auto 3. Extra operation modes Boost 4. Set temperature 5. RF pairing 6. Factory reset 7. Program settings Factory pre-set program Default program settings: 5/2 day 7.1.1 Program settings: 7 day 7.1.2...

  • Page 5: User Instructions

    User instructions...

  • Page 6: Quick Operating Guide

    1. Quick operating guide Display and button functions (Outer) Set temperature Connection status (Standalone or RF connected) Boost status Flame symbol when system calling for heat RF working status MODE button Temperature Dial to adjust temperature and parameters Release button...
  • Page 7 Button functions (Inner) RF PAIR RESET RESET button RF pair button...

  • Page 8: Display And Button Functions

    (i.e. ESRTP6WHW, ESRTP6CW, etc.) The AUTO mode will be available both through the “heating and hot water schedule” on the room thermostat, or through the ESi Controls Centro app. Once the schedule has been set, the cylinder thermostat will ask for heat at the set ON times, and it will use the set temperature previously selected.

  • Page 9: Extra Operation Modes

    3. Extra operation mode Boost When the cylinder thermostat is in AUTO mode, the cylinder thermostat allows for a temporary override to the schedule. 1. When in AUTO mode, press mode button to make display show +1HR. 2. The cylinder thermostat will enter boost mode for one hour or until the next programme event.

  • Page 10: Set Temperature

    Set temperature range: 25.0 – 65.0°C. Default value 50.0°C 5. RF pairing The ESCTP-RF model can communicate wirelessly with some ESi Controls room thermostats or receivers, which can potentially grant access and control of the cylinder thermostat via the ESi Controls Centro APP.
  • Page 11 2. Press and hold PAIR button until the display shows PAIr. RF PAIR BUTTON 3. Make sure the other device being paired is also in pairing mode. 4. Once the RF has successfully paired with the other device, it will display SET and then it will return to the home screen.

  • Page 12: Factory Reset

    6. Factory reset This function will reset all the parameters to the factory default. 1. Press the release button on the bottom of the thermostat, to open it and have access to the RESET button on the inside of the thermostat. 2.

  • Page 13: Program Settings

    7. Program settings Factory pre-set programme Only available when paired with a compatible Wi-Fi room thermostat (i.e. ESRTP6WHW, ESRTP6CW, etc.) This unit has been designed to be a simple to use thermostat, requiring minimal user intervention with a pre-programmed heating profile. The pre-set heating times and temperatures will suit most people (See table below).
  • Page 14 We are continuously developing our products to bring you the very latest in energy saving technology and simplicity. However, should you have any questions setting up your controls please email us at sales@esicontrols.co.uk or for technical queries call us on our dedicated technical helpline 01280 816868.
  • Page 15 WARNING: Interference with sealed parts renders the guarantee void. In the interests of continuous product improvement we reserve the right to alter designs, specifications and materials without prior notice and cannot accept liability for errors.
  • Page 16 Version 1.001 © ESi Controls Ltd 2021...
