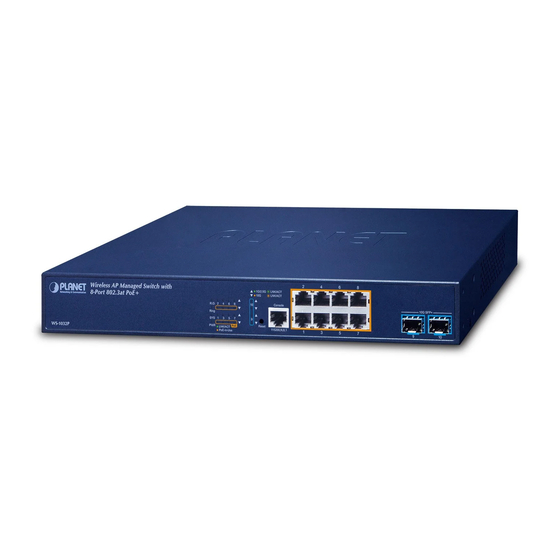

- Page 1 Wireless AP Managed Switch with 10/100/1000Mbps 802.3at PoE+ WS-1032P/WS-2864PVR Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..................3 2. Requirements ..................... 4 3. Starting Web Management ................5 3.1 Logging to the Web UI ................. 5 3.2 Function Icons ..................7 4. Starting AP Management ................8 5. Terminal Setup ..................10 5.1 Logging on to the Console..............11 5.2 Configuring IP Address ................12 6. Recovering Back to Default Configuration .............15... -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET Wireless AP Managed Switch with 10/100/1000Mbps 802.3at PoE+. Model No. 10G SFP+ WS-1032P 8 ports 2 ports WS-2864PVR 24 ports 4 ports The Wireless AP Managed Switch includes an AP Controller feature. The AP Controller mentioned in this Quick Installation Guide refers to the Wireless AP Managed Switch. -
Page 4: Requirements
2. Requirements z Workstations running Windows 10/XP/2003/Vista/7/8/2008, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP protocols. z Workstations are installed with Ethernet NIC (Network Interface Card) z Serial Port Connection (Terminal) The above Workstations come with COM Port (DB9) or USB-to-RS232 converter. The above Workstations have been installed with terminal emulator, such as Tera Term, PuTTY or Hyper Terminal included in Windows XP/2003. -
Page 5: Starting Web Management
3. Starting Web Management The following shows how to start up the Web Management of the AP Managed Switch. Note the AP Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. For example, the default IP address of the AP Managed Switch is 192.168.1.100, then the manager PC should be set to 192.168.1.X (where X is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0. - Page 6 It is recommended to use Google Chrome to access the AP Managed Switch. If the Web interface of the AP Managed Switch is not accessible, please turn off the anti-virus software or firewall Note and then try it again. 3. After entering the password, the main screen appears as Figure 3-3 shows. Figure 3-3 Web Main Screen The main menu on the top of the web page lets you access all the commands and statistics the AP Managed Switch provides. The menu contains one or more buttons, such as “AP Control”, “System”, “Switching”, “QoS”, “Security”,...
-
Page 7: Function Icons
The sub-menu on the left of the web page lets you access all the commands and statistics the AP Managed Switch provides. Figure 3-5 Sub-menu of AP Control Now, you can use the Web management interface to continue the AP management. Please refer to the user’s manual for more details. 3.2 Function Icons The function icons on the upper-right corner of the web page lets you quickly execute major system commands that include “Refresh”, “Save Configuration”, “Help” and “Logout”. -
Page 8: Starting Ap Management
4. Starting AP Management There are different models including indoor and outdoor AP series that can be managed by AP Managed Switch. Please regularly check PLANET website for the latest managed AP compatibility list. Note For the AP models that do not support DHCP IP, please configure them to use a different static IP before connecting them to the same managed network. - Page 9 Step 2. Go to the “AP Search” page and then click “Search” to discover the managed AP. Step 3. In the “Select Device” field, check the AP and then click “Apply”. Figure 4-3 AP Search Step 4. Then, you can go to the “AP Management” page to configure the general setting and designate the pre-defined profiles to the managed AP without logging on to the AP’s web page.
-
Page 10: Terminal Setup
5. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to the RJ45 type of the console port of the AP Controller. PC / Workstation with Terminal Emulation Software AP Managed Switch RS232 to RJ45 Cable Serial Port RJ45 Console Port Figure 5-1 AP Controller Console Connectivity A terminal program is required to make the software connection to the AP Controller. -
Page 11: Logging On To The Console
5.1 Logging on to the Console Once the terminal is connected to the device, power on the AP Managed Switch and the terminal will display “running testing procedures”. Then, the following message asks to log in user name and password. The factory default user name and password are shown as follows, and the login screen in Figure 5-3 appears. -
Page 12: Configuring Ip Address
5.2 Configuring IP Address The AP Managed Switch is shipped with default IP address shown below. IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0 To check the current IP address or modify a new IP address for the AP Managed Switch, please use the procedure as follows: Showing the current IP Address 1. At the “#” prompt, enter “show ip interface brief”. 2. The screen displays the current IP address as shown in Figure 5-4. Figure 5-4 IP Information Screen... - Page 13 3. At the “#” prompt, enter the following command and press <Enter> as shown in Figure 5-5. WS-1032P# configure terminal WS-1032P(config)# interface vlan 1 WS-1032P(config-if-vlan)# ip address 192.168.1.101 255.255.255.0 The previous command would apply the following settings for the AP Managed Switch. IP Address: 192.168.1.101 Subnet Mask: 255.255.255.0...
- Page 14 Storing current configuration 5. At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 5-6 Saving Current Configuration If the IP is successfully configured, the AP Managed Switch will apply the new IP address setting immediately. You can access the Web interface of the AP Managed Switch through the new IP address.
-
Page 15: Recovering Back To Default Configuration
10 seconds. After the device is rebooted, you can log in the management Web interface within the same subnet of 192.168.1.xx. 1G/2.5G LNK/ACT LNK/ACT Console 10G SFP+ Reset 115200,N,8,1 Reset Button Figure 6-1 Reset button of WS-1032P 1000 LNK 10/100 LNK bt PoE af/at PoE Console Ring WS-2864PVR Reset Smart LCD 115200, N, 8, 1... -
Page 16: Customer Support
7. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET support team. PLANET online FAQs: https://www.planet.com.tw/en/support/faq Support team mail address support@planet.com.tw WS-1032P/WS-2864PVR User’s Manual: https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword=W S&view=3#list WS-1032P/WS-2864PVR QR Code: Copyright © PLANET Technology Corp. 2021. Contents are subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp.
