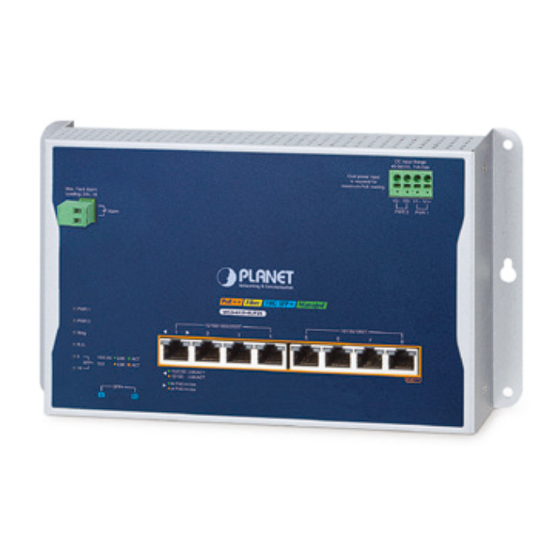

- Page 1 Industrial Wall-mount Managed Gigabit Ethernet Switch WGS-6325-8UP2X User's Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ................. 3 2. Requirements ..................4 3. Hardware Installation ................5 3.1 Wall Mount Installation ..............5 3.2 Wall Hanging Installation ..............6 3.3 Grounding the Device ..............7 4. Wiring the Power and Alarm Inputs ............8 4.1 Terminal Block Connector Pinout ............. -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET Industrial Wall-mount Managed Gigabit Switch, WGS-6325-8UP2X. The table below shows the model with the number of ports: Model Name Copper Port Fiber Port 4 x 10/100/1000/2500T (Ports 1-4) WGS-6325-8UP2X 2 x 1G/2.5G/10GX 4 x 10/100/1000T (Ports 5-8) In the following sections, unless specified, the term “Wall-mount Managed... -
Page 4: Requirements
2. Requirements • A flat-blade screwdriver • Workstations running Windows XP/2003/Vista/7/8/2008/10/11, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP proto- cols. • Workstations are installed with Ethernet NIC (Network Interface Card) • Ethernet Port Connection Network cables -- Use network (UTP) cables with RJ45 connectors. ... -
Page 5: Hardware Installation
3. Hardware Installation 3.1 Wall Mount Installation To install the Wall-mount Managed Switch on the wall, simply follow the following steps: Step 1: Drill 4 holes with 8mm diameter on the wall. The horizontal and vertical distances between the 2 holes are 230mm and 124mm, respectively. -
Page 6: Wall Hanging Installation
Step 3: Then the four given screws are screwed into the anchors to finish the wall-mount installation, as shown below. 2 3 0 m m 1 2 4 m m 3.2 Wall Hanging Installation To hang the Wall-mount Managed Switch on the wall, simply follow the following steps: Step 1: Drill 2 holes (one hole on each side) with 8mm diameter on the wall;... -
Page 7: Grounding The Device
Step 3: The switch, shown in the picture below, can now be hung on the wall. 1 Place against a wall 4mm Screw 2 Hang up Make sure the equipment is securely wall-mounted as strong vibration could cause it to drop or break. 3.3 Grounding the Device User MUST complete grounding wired with the device;... -
Page 8: Wiring The Power And Alarm Inputs
Power Input Range PWR1 PWR2 Model WGS-6325-8UP2X DC 48-54V, 11A max Note: Maximum power requirements also rely on the real site application. 4-pin Spring Terminal Block DC Input Range 48-54V , 11A max. -
Page 9: Terminal Block Connector Pinout
PWR1 and PWR2 must provide exactly the same DC voltage for power load balance while operating with dual power input. 4.1 Terminal Block Connector Pinout The Front Panel of the Wall-mount Managed Switch consists of one spring terminal block connector within 4 contacts. Please follow the steps below to insert the power wire. -
Page 10: Wiring The Alarm Contact
Wire Flat-blade screwdriver The wire gauge should be in the range from 12 to 16 AWG. 4.3 Wiring the Alarm Contact The alarm contacts are in the middle of the terminal block connector as the picture shows below. Inserting the wires, the Wall-mount Managed Switch will detect the event status of the port or power failure and then forms an open circuit. -
Page 11: Web Login
5. Web Login 5.1 Starting Web Management The following shows how to start up the Web Management of the Wall- mount Managed Switch. Note the Wall-mount Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. - Page 12 3. After entering the password, the main screen appears as Figure 5-3 shows. Figure 5-3: Web Main Screen of Wall-mount Managed Switch The Switch Menu on the top of the Web page lets you access all the commands and statistics the Wall-mount Managed Switch provides. The Switch Menu always contains one or more buttons, such as “System”, “Switching”, “Routing”, “QoS”, “Security”, “PoE”, “Ring”, “ONVIF”...
-
Page 13: Saving Configuration Via The Web
5.2 Saving Configuration via the Web To save all applied changes and set the current configuration as a startup configuration, the startup-configuration file will be loaded automatically across a system reboot. 1. Click the Save icon on the top Switch Menu bar. 2. Press the “Save Configuration” button. 3. Or the other way to save the setting is to Click Maintenance, Save Startup Config. -
Page 14: Ssh Login
6. SSH Login Wall-mount Managed Switch also supports SSHv2 remote management. The switch asks for user name and password for remote login when using SSHv2 client software; please use “admin” for both username and password. Default IP address: 192.168.0.100 Username: admin Password: admin... -
Page 15: Configuring Ip Address
Figure 6-1: Wall-mount Managed Switch SSHv2 Login Screen The user can now enter commands to manage the Wall-mount Managed Switch. For a detailed description of the commands, please refer to the following chapters. 1. For security reason, please change and memorize the new password after this first setup. - Page 16 Figure 6-2: IP Information Screen Configuration of the IP Address 3. At the “#” prompt, enter the following command and press <Enter> as shown in following. Figure 6-3: Set IP Address Command Screen The previous command would apply the following settings for the Wall-mount Managed Switch.
-
Page 17: Storing The Current Switch Configuration
6.2 Storing the Current Switch Configuration At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 6-4: Saving Current Configuration Command Screen If the IP is successfully configured, the Wall-mount Managed Switch will apply the new IP address setting immediately. You can access the Web interface of the Wall-mount Managed Switch through the new IP address. -
Page 18: Recovering Back To Default Configuration
5 seconds. After the device is rebooted, you can log in the Web interface management within the same subnet of 192.168.0.xx. 1G/2.5G/10G Reset Figure 7-1: WGS-6325-8UP2X Reset Button... -
Page 19: Customer Support
8. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team.
