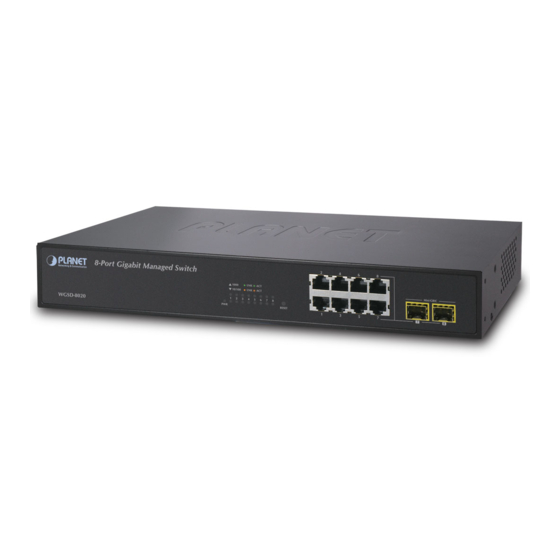

- Page 1 WGSD-8020 8-Port 10/100/1000Base-T with 2 Shared SFP Managed Gigabit Switch WGSD-8020P 8-Port 10/100/1000Base-T High PoE with 2 Shared SFP Managed Gigabit Switch Quick Installation Guide Version 1.0...
-
Page 2: Table Of Contents
Table of Contents 1. Package Content ..................3 2. Requirements ....................4 3. Terminal Setup .................... 5 4. Logon to the Console ................... 6 5. Configure IP address ..................7 6. Start Web Management ................9 7. While IP Address be changed or forgotten admin password – ......12 8. -
Page 3: Package Content
1. Package Content Thank you for purchasing PLANET Layer 2 Managed Switch, WGSD-8020 / WGSD- 8020P. Terms of “Managed Switch” means the Switches mentioned titled in the cover page of this Quick Installation Guide. Open the box of the Managed Switch and carefully unpack it. The box should... -
Page 4: Requirements
2. Requirements The Managed Switch provide remote login interface for manage; the following equipments are necessary for further management. Workstation installed with Ethernet NIC (Network Card) Workstations of subscribers running Windows XP/2003, Vista, Windows 7, MAC OS X, Linux, Fedora, Ubuntu or other platform compatible with TCP/IP protocols. Ethernet Port connect t Network cables - Use standard network (UTP) cables with RJ-45 connectors. -
Page 5: Terminal Setup
3. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to serial (console) port of the WGSD Managed Switch. The console port of the Managed Switch is DCE already, so that you can connect the console port directly through PC without the need of Null Modem. -
Page 6: Logon To The Console
4. Logon to the Console Once the terminal has connected to the device, power on the WGSD Managed Switch, the terminal will display that it is running testing procedures. Then, the following message asks the login user name and password. The factory default user name and password as following and the login screen in Figure 4-1 appears. -
Page 7: Configure Ip Address
5. Configure IP address The WGSD Managed Switch is shipped with default IP address as following. IP Address : 192.168.0.100 Subnet Mask : 255.255.255.0 To check the current IP address or modify a new IP address for the Managed Switch, please use the procedures as follow: n Show the current IP address 1. - Page 8 n Configure IP address 3. On “Switch/> ” prompt, enter the following command and press <Enter>. As show in Figure 5-2. Switch/> ip setup 192.168.1.100 255.255.255.0 192.168.1.1 The previous command would apply the follow settings for the Managed Switch. IP: 192.168.1.100 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 Figure 5-2 Set IP address screen 4.
-
Page 9: Start Web Management
6. Start Web Management The Managed Switch provides a built-in browser interface. You can manage it remotely by having a remote host with Web browser, such as Microsoft Internet Explorer, Mozilla Firefox, Google Chrome or Apple Safari. Managed Switch PC / Workstation with IE Browser RJ-45/UTP-Cable... - Page 10 2. When the following dialog box appears, please enter the default user name “admin” and password “admin” (or the password you have changed via console). The login screen in Figure 6-2 appears. Default User name: admin Default Password: admin Figure 6-2 Login screen 3.
- Page 11 4. The Switch Menu on the left of the Web page let you access all the commands and statistics that Managed Switch provides. Figure 6-4 Switch Menu If you do not familiar with Layer 2 / Layer 4 switch functions or the related parameter, press “Help icon”...
-
Page 12: While Ip Address Be Changed Or Forgotten Admin Password
8. Customer Support Thank you for purchase PLANET products. You can browse our online FAQ resource at the PLANET Web site first to check if it could solve you issue. If you need more support information, please contact PLANET switch support team.
