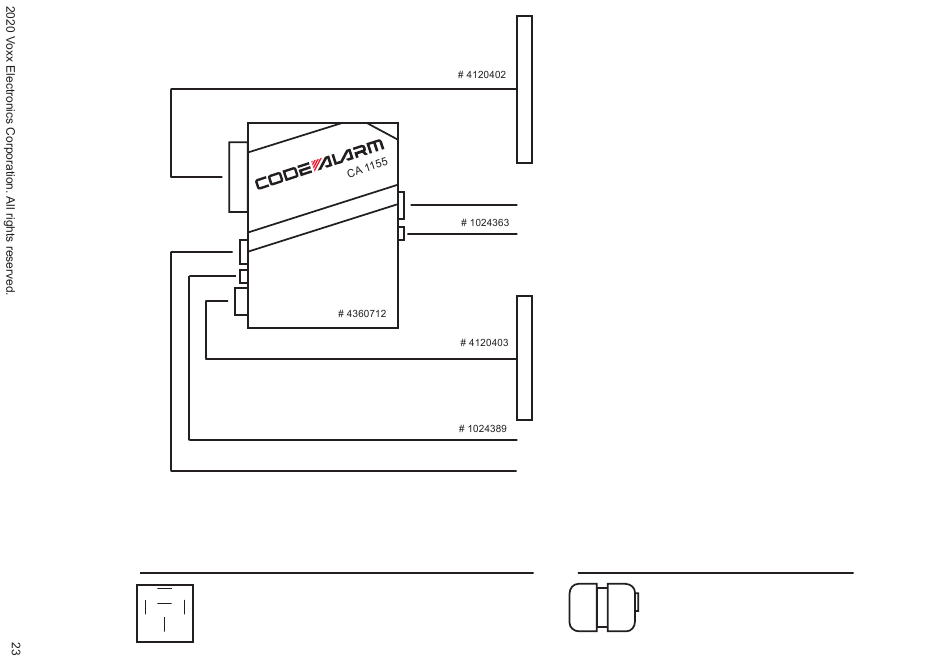

System Layout - Code Alarm PROFESSIONAL Series Installation Manual

STARTER INTERUPT RELAY & HARNESS
#1024405
ORANGE
87
RED
87a
BLACK
86 85
WHITE / BLACK
30
OPEN
86 - ARMED OUTPUT ( - )
85 - IGNITION ( + )
87A - STARTER OUTPUT - MOTOR SIDE
30 - STARTER INPUT - KEY SIDE
87 - OPEN
BROWN SIREN OUTPUT ( + )
RED BATTERY 12V ( + )
BLACK GROUND
BROWN/BLACK UNLOCK SWITCH ( 87A )
VIOLET/BLACK UNLOCK POLARITY ( 87 )
VIOLET LOCK POLARITY ( 87 )
GREEN/BLACK LOCK MOTOR ( 30 )
WHITE PARKING LIGHT OUTPUT
WHITE/RED PARKING LIGHT INPUT
WHITE PARKING LIGHT OUTPUT
WHITE/BLACK LOCK SWITCH ( 87A )
BLUE/BLACK UNLOCK MOTOR ( 30 )
SHOCK SENSOR PORT
LED PORT
PURPLE DOOR TRIGGER INPUT ( + )
GREEN/BLACK FACTORY DISARM OUTPUT ( - )
OPEN
GREEN DOOR TRIGGER INPUT ( - )
ORANGE ARMED OUTPUT ( - )
BROWN/BLACK HORN OUTPUT ( - )
VIOLET/BLACK AUX 1 OUTPUT ( - )
GRAY HOOD PIN INPUT ( - )
YELLOW IGNITION INPUT ( + )
RED/WHITE TRUNK RELEASE OUTPUT ( - )
PROGRAMMING / VALET PORT
DBI PORT
SHOCK SENSOR & HARNESS
#4700023
RED
BLACK
BLUE
GREEN
BATTERY 12V ( + )
GROUND WHEN ARMED ( - )
FULL TRIGGER ( - )
WARN AWAY TRIGGER ( - )
