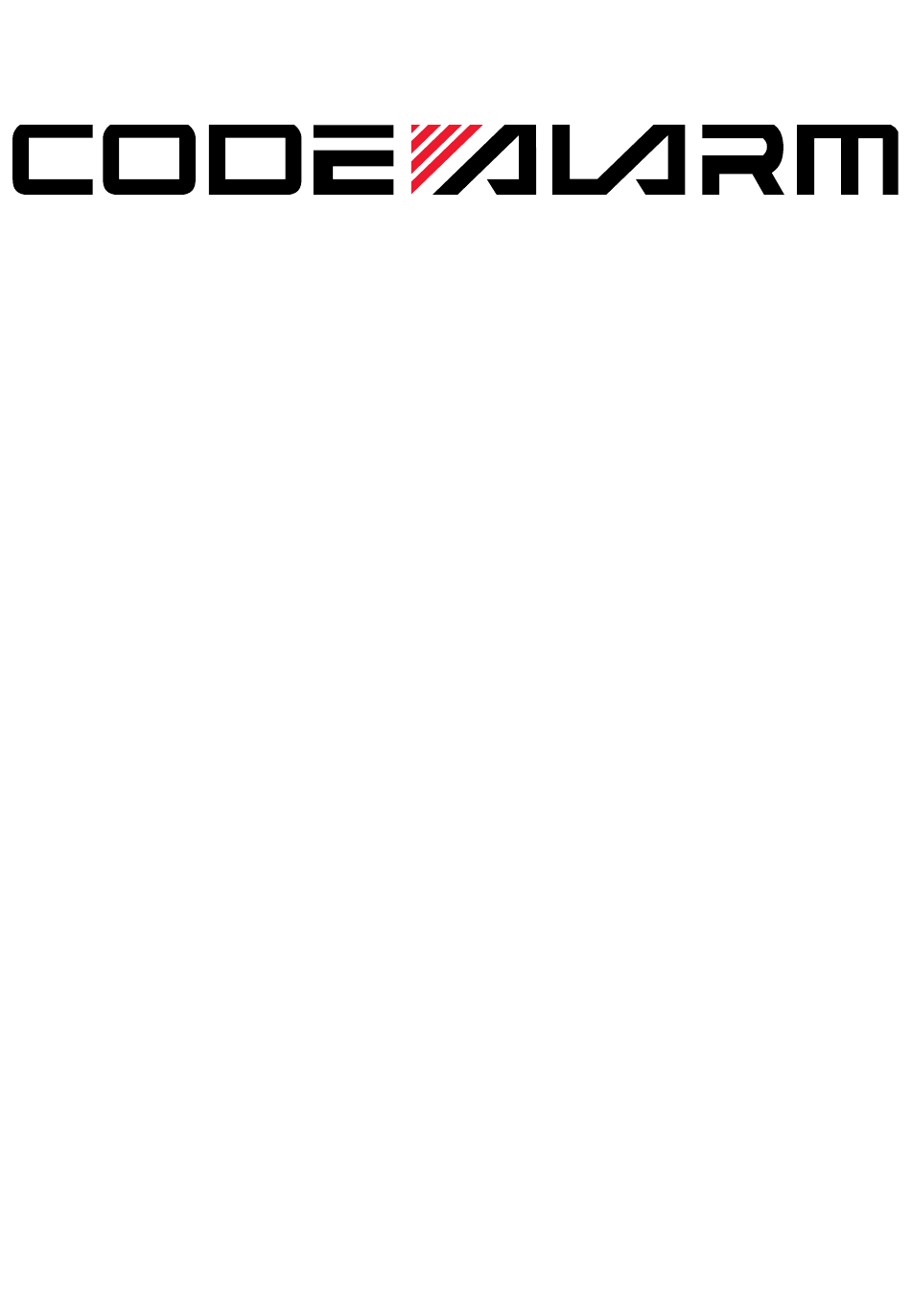

- Page 1 PROFESSIONAL SERIES Remote Keyless Entry Installation Guide CA 2050 2009 Audiovox Electronics Corporation. All rights reserved.
-
Page 2: Table Of Contents
Table of Contents Before You Begin ..................3 Wire Connection Guide ................4 8 Pin Main Harness ................... 5 6 Pin Door Lock Output Harness ............. 7 Additional Ports ..................8 LED Port ..................... 8 Programming Port ..................8 Set Up & Programming ................9 Transmitter Programming ................ -
Page 3: Before You Begin
BEFORE YOU BEGIN PROFESSIONAL INSTALLATION STRONGLY RECOMMENDED Installation Precautions: Roll down window to avoid locking keys in vehicle during installation Avoid mounting components or routing wires near hot surfaces Avoid mounting components or routing wires near moving parts Tape or loom wires under hood for protection and appearance Use grommets when routing wires through metal surfaces... -
Page 4: Wire Connection Guide
8 Pin Main Harness 6 Pin Door Lock Output Harness 2009 Audiovox Electronics Corporation. All rights reserved. -
Page 5: Pin Main Harness
8 Pin Main Harness WHITE/RED PARKING LIGHT INPUT WHITE PARKING LIGHT OUTPUT Locate the parking light output wire at the vehicle’s light switch. Verification: This wire registers positive voltage when the parking lights are turned on. Positive switching Parking Lights: Connect the WHITE/RED wire to a 15 Amp max fused battery source. - Page 6 BATTERY 12V ( + ) Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch. Verification: This wire will register ( + ) voltage in all positions of the ignition switch. Connect the RED wire to the constant 12 Volt battery wire. NOTE: Remove all fuses until all connections are made.
-
Page 7: Pin Door Lock Output Harness
6 Pin Door Lock Output Harness BROWN/BLACK UNLOCK SWITCH ( 87A ) BLUE/BLACK UNLOCK MOTOR ( 30 ) VIOLET/BLACK UNLOCK POLARITY ( 87 ) WHITE/BLACK LOCK SWITCH ( 87A ) GREEN/BLACK LOCK MOTOR ( 30 ) VIOLET LOCK POLARITY ( 87 ) The door lock / unlock outputs are designed to control several different types of systems which may require additional parts. -
Page 8: Additional Ports
Additional Ports LED Port The LED included in the kit will serve as a visual indicator of the alarm’s status. It should be installed in the dash, located where it can be easily seen from outside the vehicle, yet not be distracting to the driver. Once a location has been selected, check behind the panel for wire routing access, and to confirm the drill will not damage any existing components as it passes through the panel. -
Page 9: Set Up & Programming
Set Up & Programming Transmitter Programming - Feature Bank 1 1. Turn the ignition ON. 2. Press and hold the valet/override button. 3. Within 10 seconds the system will chirp (3) three times. 4. Press 1 button of each transmitter you wish to program. 5. -
Page 10: Programming Feature Banks
Feature Bank 1 - 3 Chirps Transmitter Programming Refer to transmitter programming. Chirp Delete - User Accessible System ARM/DISARM chirps can be toggled ON or OFF without entering the programming feature banks. 1. Turn the ignition ON then OFF. 2. Press and release the valet/programming button 3 times. The system will respond with 1 chirp for ON or 2 chirps for OFF. -
Page 11: Feature Descriptions
Feature Descriptions Feature Bank 2 - Security 1 - Silent Choice: Controls the normal arm/disarm chirps of the security system. ON - Silent arming/disarming upon first press of lock/unlock, pressing lock/ unlock a second time will activate the arm/disarm chirps respectively. The system will only sound the arm/disarm chirps upon a second press of the lock/unlock buttons. -
Page 12: Transmitter Button Functions
4 - Trunk Output Timing: Control of the RED/WHITE trunk release output wire when trunk release is activated from the transmitter. Push and Hold - Output is continuously active until transmitter button is released. 10 Seconds - Output stays active for 10 seconds regardless of length button press on transmitter. - Page 13 2009 Audiovox Electronics Corporation. All rights reserved.
- Page 14 Audiovox Electronics Corporation. Customer Service 1-800-421-3209 WWW.CODE-ALARM.COM FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
