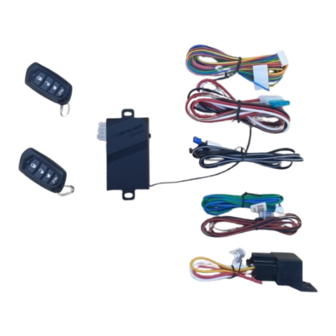

- Page 1 PROFESSIONAL SERIES Security and Keyless Entry Installation Guide ca1045 **This guide is a reference for module firmware version 5.0 or higher** 2020 Voxx Electronics Corporation. All rights reserved.
-
Page 2: Table Of Contents
Table of Contents Before You Begin ..................3 Wire Connection Guide ................4 5 Pin Main Harness ................... 5 6 Pin Input / Output Harness ..............6 2 Pin Door Lock Output Harness ............... 8 Additional Ports ..................12 LED Port ....................12 Programming Port ................... -
Page 3: Before You Begin
BEFORE YOU BEGIN PROFESSIONAL INSTALLATION STRONGLY RECOMMENDED Installation Precautions: Roll down window to avoid locking keys in vehicle during installation Avoid mounting components or routing wires near hot surfaces Avoid mounting components or routing wires near moving parts Tape or loom wires under hood for protection and appearance Use grommets when routing wires through metal surfaces... -
Page 4: Wire Connection Guide
5 Pin Main Harness WHITE/RED PARKING LIGHT INPUT WHITE PARKING LIGHT OUTPUT BLACK GROUND BROWN SIREN / HORN OUTPUT BATTERY 12V ( + ) 6 Pin Input / Output Harness PURPLE DOOR TRIGGER INPUT ( + ) BLUE TRUNK PIN INPUT ( - ) GREEN DOOR TRIGGER INPUT ( - ) YELLOW... -
Page 5: Pin Main Harness
5 Pin Main Harness WHITE/RED PARKING LIGHT INPUT WHITE PARKING LIGHT OUTPUT Locate the parking light output wire at the vehicle’s light switch. Verification: This wire registers positive voltage when the parking lights are turned on. Positive switching Parking Lights: Connect the WHITE/RED wire to a 15 Amp max fused battery source. -
Page 6: Pin Input / Output Harness
HORN: Locate the vehicle’s horn wire. Verification: This wire will register at positive voltage and register ground when the horn switch is pressed. Connect the BROWN wire to the vehicle’s horn wire. This is a low current output, 300mA. BATTERY 12V ( + ) Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch. - Page 7 GREEN DOOR TRIGGER INPUT ( - ) Locate the vehicle’s dome light or door pin switch wire. Verification: This wire will register ground (NEG) when the door is opened and the interior light is on. This wire will register positive voltage when the door is closed and the interior light is off.
-
Page 8: Pin Door Lock Output Harness
2 Pin Lock Output Harness BLUE UNLOCK ( - ) GREEN LOCK ( - ) The door lock / unlock outputs are designed to control several different types of systems which may require additional parts. Please review the wire and location chart to see which type of door lock system is in your vehicle. - Page 9 Positive Switching Locks All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock / unlock switch. Verification: These wires will register positive voltage when the Lock and Unlock switches are activated. Connect the GREEN and BLUE wires shown in the diagram below. Positive Locks: Fused +12 Volt Battery Souce...
- Page 10 Negative Multiplexed Locks All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock / unlock switch. Verification: This wire will show variable ground when the switch is activated. Please consult the wire and location chart for specific resistor values for your vehicle.
- Page 11 Adding Aftermarket Actuators After installing aftermarket actuators, (not supplied). Connect the GREEN and BLUE wires shown in the diagram below using (2) SPDT relays (not supplied). Fused +12 Volt Battery Source Door Lock GREEN ( - ) Lock Output Actuator Chassis Ground Fused +12 Volt...
-
Page 12: Additional Ports
Additional Ports LED Port The LED included in the kit will serve as a visual indicator of the alarm’s status. It should be installed in the dash, located where it can be easily seen from outside the vehicle, yet not be distracting to the driver. Once a location has been selected, check behind the panel for wire routing access, and to confirm the drill will not damage any existing components as it passes through the panel. -
Page 13: Set Up & Programming
Set Up & Programming Transmitter Programming - Feature Bank 1 Turn the ignition ON. Press and hold the valet/override button. Within 10 seconds the system will chirp (3) three times. Press 1 button of each transmitter you wish to program. The system will respond with 1 chirp for each accepted transmitter. -
Page 14: Programming Feature Banks
Feature Bank 1 - 3 Chirps Transmitter Programming Refer to transmitter programming. Feature Bank 2 - 4 Chirps 1 LED Flash 2 LED Flash 3 LED Flash 4 LED Flash 5 LED Flash 6 LED Flash Security Control Silent Choice Door Locks Active Passive... - Page 15 Feature Bank 3 - 5 Chirps 1 LED Flash 2 LED Flash 3 LED Flash 4 LED Flash 5 LED Flash 6 LED Flash Output Control 1 Sec. Lock, 30 Sec. Lock, 2x Lock, Lock / Unlock Timing 1 Sec. 3.5 Sec.
-
Page 16: Pc Based Feature Programming / Firmware Updates (Optional)
PC Based Feature Programming / Firmware Updates (optional) When using the NEW Code Alarm Utility App along with a VEPROG Programming tool you may program selectable features or update the firmware of this module. To Use a PC and VEPROG tool for Feature Programming or Firmware Updates: Download and install the Code Alarm Utility App. -
Page 17: Chirp Delete - User Accessible
Chirp Delete - User Accessible System ARM/DISARM chirps can be toggled ON or OFF without entering the programming feature banks. Turn the ignition ON then OFF. Press and release the valet/programming button 3 times. The system will respond with 1 chirp for ON or 2 chirps for OFF. User Selectable LED This feature will control whether the LED is ON or OFF when the system is Armed/ Locked. -
Page 18: Feature Descriptions
Feature Descriptions Feature Bank 2 - Security 1 - Silent Choice: Controls the normal arm/disarm chirps of the security system. ON - Silent arming/disarming upon first press of lock/unlock, pressing lock/ unlock a second time will activate the arm/disarm chirps respectively. The system will only sound the arm/disarm chirps upon a second press of the lock/unlock buttons. - Page 19 7 - Anti-Hijack Mode: Controls the Car Jack mode - ON / OFF. OFF - Standard security system operation. ON - Enables Car Jack mode functionality as described in the owners manual 8 - Not available on this model. 9 - DBI Port Protocol: Determines the protocol type in which the DBI port uses to interface with external modules.
- Page 20 13 - Extended Parking Lights: When selected, this feature will keep the parking lights on for an additional 30 seconds after the standard flashes when pressing lock or unlock. OFF – Normal parking light function. After Unlock – Parking lights will stay on for 30 seconds after normal unlock flashes.
- Page 21 Feature Bank 3 - Output Control 1 - Lock / Unlock Timing: Controls the timing of the BLUE and GREEN lock output wires. 1 Sec. - Single 1 second lock pulse, single 1 second unlock pulse. 3.5 Sec. - Single 3.5 second lock pulse, single 3.5 second unlock pulse. 1 Sec.
-
Page 22: Transmitter Button Functions
Transmitter Button Functions Car Find / Lock Unlock Trunk Operation Method Panic Lock Press and Release Unlock Press and Release Trunk Push and Hold (3 Sec) Car Finder Press and Release Panic Push and Hold (3 Sec) Press and Release Lock then Press Shock Bypass Lock + Car Find (within 5 Sec) Passive Arming... -
Page 23: System Layout
LED PORT BLUE UNLOCK OUTPUT ( - ) GREEN LOCK OUTPUT ( - ) WHITE/RED PARKING LIGHT INPUT WHITE PARKING LIGHT OUTPUT BLACK GROUND BROWN HORN / SIREN OUTPUT BATTERY 12V ( + ) ( - ) HORN / SIREN OUTPUT POLARITY JUMPER ( + ) DBI PORT # 1024389... - Page 24 Voxx Electronics Corporation. Customer Service 1-800-421-3209 WWW.CODE-ALARM.COM FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
