If a Forward Collision Warning with Mitigation event
begins at a speed below 39 mph (62 km/h), the
system may provide the maximum braking
possible to mitigate the potential forward collision.
If the Forward Collision Warning with Mitigation
event stops the vehicle completely, the system will
hold the vehicle at standstill for two seconds and
then release the brakes.

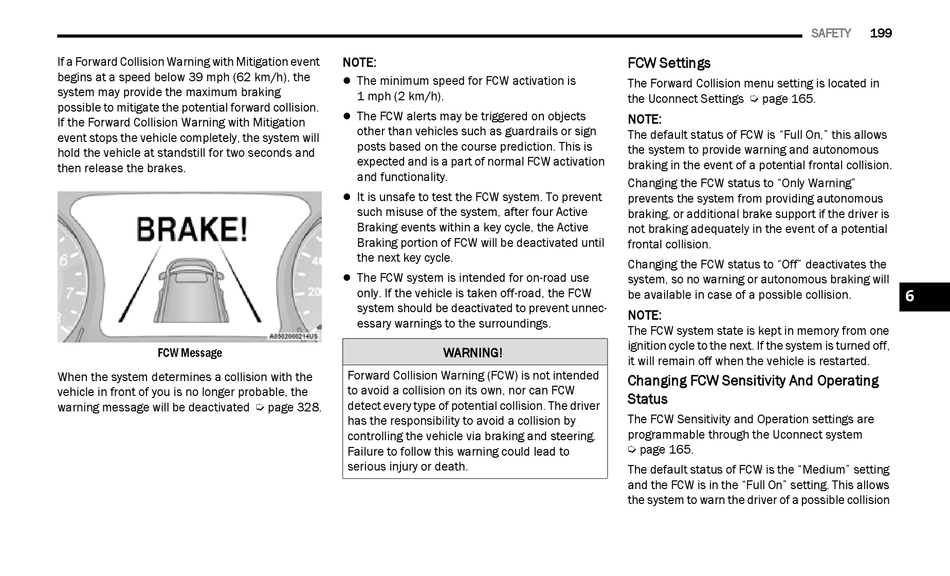

FCW Message
When the system determines a collision with the
vehicle in front of you is no longer probable, the
warning message will be deactivated Ú page 328.
NOTE:
The minimum speed for FCW activation is
1 mph (2 km/h).
The FCW alerts may be triggered on objects
other than vehicles such as guardrails or sign
posts based on the course prediction. This is
expected and is a part of normal FCW activation
and functionality.
It is unsafe to test the FCW system. To prevent
such misuse of the system, after four Active
Braking events within a key cycle, the Active
Braking portion of FCW will be deactivated until
the next key cycle.
The FCW system is intended for on-road use
only. If the vehicle is taken off-road, the FCW
system should be deactivated to prevent unnec-
essary warnings to the surroundings.
WARNING!
Forward Collision Warning (FCW) is not intended
to avoid a collision on its own, nor can FCW
detect every type of potential collision. The driver
has the responsibility to avoid a collision by
controlling the vehicle via braking and steering.
Failure to follow this warning could lead to
serious injury or death.
FCW Settings
The Forward Collision menu setting is located in
the Uconnect Settings Ú page 165.
NOTE:
The default status of FCW is "Full On," this allows
the system to provide warning and autonomous
braking in the event of a potential frontal collision.
Changing the FCW status to "Only Warning"
prevents the system from providing autonomous
braking, or additional brake support if the driver is
not braking adequately in the event of a potential
frontal collision.
Changing the FCW status to "Off" deactivates the
system, so no warning or autonomous braking will
be available in case of a possible collision.
NOTE:
The FCW system state is kept in memory from one
ignition cycle to the next. If the system is turned off,
it will remain off when the vehicle is restarted.
Changing FCW Sensitivity And Operating
Status
The FCW Sensitivity and Operation settings are
programmable through the Uconnect system
Ú page 165.
The default status of FCW is the "Medium" setting
and the FCW is in the "Full On" setting. This allows
the system to warn the driver of a possible collision
SAFETY
199
6
