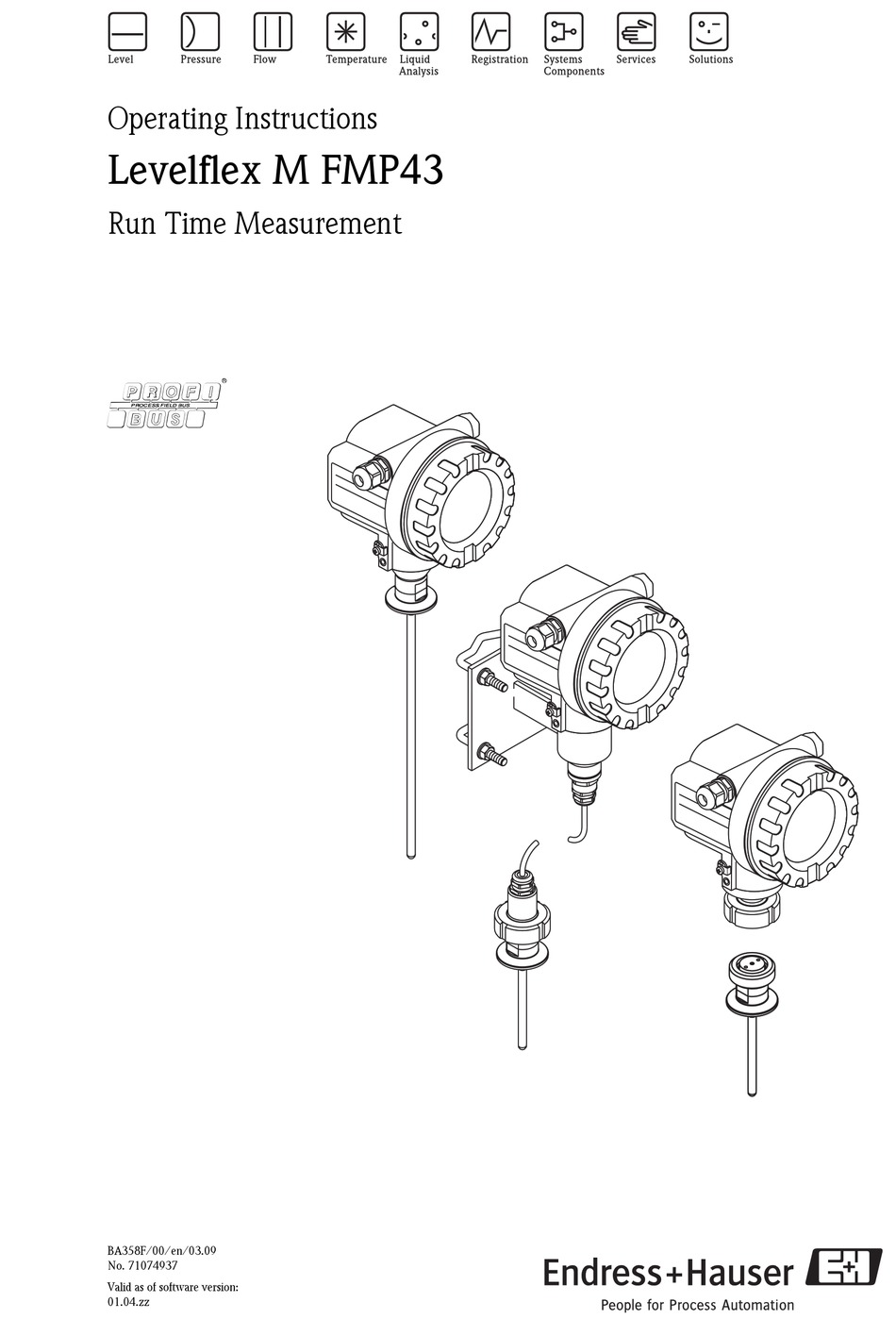

Operating Instructions
Levelflex M FMP43
Run Time Measurement
8
BA358F/00/en/03.09
No. 71074937
Valid as of software version:
01.04.zz

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser PROFIBUS Levelflex M FMP43

Summary of Contents for Endress+Hauser PROFIBUS Levelflex M FMP43

  • Page 1 Operating Instructions Levelflex M FMP43 Run Time Measurement BA358F/00/en/03.09 No. 71074937 Valid as of software version: 01.04.zz...
  • Page 2 Commissioning via Endress+Hauser operating program In the "Commissioning" section, you learn how to switch on the instrument and check the functions. Additional information on the operation via the Endress+Hauser operating program (FieldCare) can be found in Operating Instruction BA027S/04. Æ...
  • Page 3 An overview of all the Instrument functions can be found on → ä 100. An extensive description of all the instrument functions can be found in BA245F – "Description of Instrument Functions" on the CD-ROM provided. Operating Instructions can also be found on our homepage: www.endress.com Endress+Hauser...
  • Page 4 Brief overview Levelflex M FMP43 with PROFIBUS PA Endress+Hauser...

  • Page 5: Table Of Contents

    Software history ......92 Contact addresses of Endress+Hauser ... 92 Wiring .

  • Page 6: Safety Instructions

    The instrument is accompanied by separate “Ex documentation”, which is an integral part of this documentation. The installation regulations, connection values and safety instructions listed in this document must be observed. • Ensure that all personnel are suitably qualified. • Measuring point requirements with regard to measurement and safety must be observed. Endress+Hauser...

  • Page 7: Notes On Safety Conventions And Icons

    Temperature resistance of the connecting cables t >85°C Indicates that the connecting cables have to withstand a temperature of 85 C at least. Safety instruction For safety instructions refer to the manual for the appropriate instrument version. Endress+Hauser...

  • Page 8: Identification

    2.1.1 Nameplate The following technical data are given on the instrument nameplate: Order No Designation according to Directive 94/9/EC (see Order Information) and designation of protection ENDRESS+HAUSER Made in Germany Serial number LEVELFLEX-M D-79689 Maulburg Order Code: Ser.-No.: IP68 / NEMA 6P...
  • Page 9 EN10204-3.1 material (316L wetted parts), inspection certificate CoC, EN 10204-3.1 material (316L wetted parts) inspection certificate *5-point, CoC, 3.1, 5-point linearity protocol, see additional spec., EN10204-3.1 material (316L wetted parts), inspection certificate Special version, to be specified Marking: 1 Tagging (TAG) 2 Bus address Endress+Hauser...
  • Page 10 You can fill in the options of the respective feature into the following table. The filled in options result in the complete order code. FMP43- complete product designation ⇓ Please enter probe length in mm or inch / 0.1 inch inch / 0.1 inch probe lenght LN → Page 14 OVP = overvoltage protection Endress+Hauser...

  • Page 11: Scope Of Delivery

    The instrument takes into account applicable standards and regulations which are listed in the EC declaration of conformity and thus meets the legal requirements of the EC Directives. Endress+Hauser confirms the successful testing of the instrument by affixing to it the CE mark.

  • Page 12: Installation

    Pack the measuring instrument in such a way as to protect it reliably against impact for storage and transportation. The original packing material provides the optimum protection for this. The permissible storage temperature is -20 °C to +80 °C. Endress+Hauser...

  • Page 13: Installation Conditions

    Installation Installation conditions 3.2.1 Dimensions Housing (see feature 80 in "Ordering information") - dimensions and materials Dimensions for the process connection and the probe type → ä 14. max. 110 ENDRESS+HAUSER F12 housing (Aluminium) L00-F12xxxx-06-00-00-en-001 max. 100 ENDRESS+HAUSER T12 housing...
  • Page 14 - 20 °C to 149 °C (3A Class. I, USP Cl. VI) ➂ Probe (see Feature 20 in "Ordering information) Material Version Option ➂ 0.76 μm mechanically polished K, M 316L (1.4435) 0.38 μm electropolished S, T Hastelloy C22 Special version available on request process connection (example) Endress+Hauser...
  • Page 15 Process connections (see Feature 40 in "Ordering information") - Dimensions and materials Endress+Hauser supplies DIN/EN flanges made of stainless steel AISI 316L with the material number 1.4435 or 1.4404. With regard to their stability-temperature property, the materials 1.4435 and 1.4404 are grouped together under 13E0 in EN1092-1 Tab.18. The chemical composition of the two materials can be identical.
  • Page 16 • 0.38 μm electropolished Ø 42,9 NEUMO BioControl DN25 PN16* = 16 bar 30,4 30,4 1-1/2" 150lbs RF Flange ANSI B16.5* = 16 bar 17,5 • 0.76 μm 2" 150lbs RF 152,4 Flange ANSI B16.5* = 16 bar 19,1 Endress+Hauser...
  • Page 17 Levelflex M FMP43 with PROFIBUS PA Installation Process connection Designation Versions Approvals Option Thread M24 x 1.5 Accessory: weld-in adapter Weld-in adapter • 0.76 μm order number: 71041381 = 16 bar Ø 65 All metal parts used in the process in 316L (1.4435) Endress+Hauser...

  • Page 18: Installation Instructions

    Optimization options • Interference echo suppression: measurement can be optimized by electronically suppressing interference echoes. L00-FMP43xxx-17-00-00-xx-002 Note! You must ensure that the probe does not come into contact with the container wall, container bottom and tank internals. Endress+Hauser...
  • Page 19 Density [ρ] in kg/m 1000 (e.g. water) Probe diameter [d] in m 0.008 L = L (worst case) L00-FMP43xxx-16-00-00-xx-003 Bending torque [M] on rod probes 20.0 18.0 16.0 14.0 12.0 10.0 v=0.5m/s v=0.7m/s v=1.0m/s Probe length [ ] in meters L00-FMP43xxx-16-00-00-de-004 Endress+Hauser...
  • Page 20 • For mechanical reasons, the probe should be installed as vertically as possible. • The maximum mounting angle is – up to 1 m = 30° – up to 2 m = 10° – up to 4 m = 5°. L00-FMP43xxx-17-00-00-xx-006 Endress+Hauser...
  • Page 21 ≥ DN 50 / 2" metallic flange, or a metal sheet with diameter of ≥ 200 mm must be mounted under the screw-in piece. metal sheet or metal flange silo roof of plastic or wood metal sheet or metal flange Wall thickness for GFK/PP < 15 mm L00-FMP4xxxx-17-00-00-en-018 Endress+Hauser...
  • Page 22 • The wall retainer can also be used for mounting in display panels. Please observe the dimensions on → ä 13 for the cutout. display plate wall ENDRESS+HAUSER Levelflex M 4 x Ø 8,5 Ø 5 ENDRESS+HAUSER Levelflex M pipe Ø...

  • Page 23: Post-Installation Check

    • Does the instrument correspond to specifications at the measuring point, including process temperature and pressure, ambient temperature, measuring range, etc.? • Are the measuring point number and labeling correct (visual inspection)? • Is the instrument adequately protected against rain and direct sunlight (→ ä 82)? Endress+Hauser...

  • Page 24: Cleaning Of The Probe

    Installation in the center of the tank • If the probe is mounted in the center of the tank, it may be necessary to use a second spray ball. The spray balls should then be mounted to the left and right of the probe. L00-FMP43xxx-17-00-00-xx-004 Endress+Hauser...
  • Page 25 4.5 Nm. • The O-rings r of the probe rod and adapter are now free accessible respectively L00-FMP43xxx-17-00-00-xx-007 changeable. The probe rod can be cleaned (autoclaved). O-ring order numbers, see → ä 91. Endress+Hauser...
  • Page 26 • screw the adapter into the container process connection together with the probe rod and tighten with 20 Nm • stick housing n with housing adapter on the adapter and bolt it with the grooved nut m - torque 20 Nm. Endress+Hauser...

  • Page 27: Wiring

    Wiring in F12/F23 housing " Vor dem Anschluss bitte folgendes beachten: Profibus-Geräte sind auf dem Typenschild (1) gekennzeichnet. Die Versorgungsspannung muss dem Achtung! ENDRESS+HAUSER Made in Germany LEVELFLEX-M Profibus PA Standard und dem gewählten Sicherheitskonzept D-79689 Maulburg Order Code: entsprechen (s. Kapitel 4.3).
  • Page 28 Wiring Levelflex M FMP43 with PROFIBUS PA Wiring in T12 housing " Before connection please note the following: ENDRESS+HAUSER PROFIBUS devices are marked on the nameplate (1). The LEVELFLEX M IP65 voltage is determined by the PROFIBUS standard and the...
  • Page 29 " ● PROFIBUS devices are marked on the nameplate (1). The voltage is determined by the PROFIBUS standard and the Caution! desired safety concept. (see chapter 4.3). ENDRESS+HAUSER Made in Germany LEVELFLEX-M D-79689 Maulburg Order Code: ● Connect potential matching line to transmitter earth terminal Ser.-No.:...

  • Page 30: Connecting The Measuring Unit

    • this protection is achieved by the use of other appropriate measures (external protection instruments e.g. HAW262Z). Connection with M12 plug The Levelflex M PROFIBUS PA sensor version with M12 plug is supplied ready wired and need only be connected to the bus by means of a suitable cord set. Endress+Hauser...

  • Page 31: Recommended Connection

    • Is the terminal assignment correct (→ ä 27 and → ä 28)? • Is the cable gland tight? • Is the M12 connector screwed tight? • Is the housing cover screwed tight? • If power is supplied: Is the instrument ready for operation and is the LCD display lit? Endress+Hauser...

  • Page 32: Operation

    (e.g. "medium property (003)") ➜ 5) Press ) once return to previous function (e.g. "tank shape (002)") ➜ Press ) twice return to Group selection 6) Press ) to return to Measured value display L00-FMP4xxxx-19-00-00-en-001 Endress+Hauser...
  • Page 33 The third digit numbers the individual functions within the function group: → • Basic setup • Tank properties • Medium property • Process propert. In the following section, the position is always given in brackets (e.g. "tank properties" (002)) after the function described. Endress+Hauser...

  • Page 34: Display And Operating Elements

    Position indicator ENDRESS + HAUSER Symbol Main value Bargraph Unit – Selection list Function groups -> Functions HOME F000 F001 F002 F003 F004 ... FG00 FG01 FG02 Help text FG03 FG04 FG05 FG06 Envelope FG07 curve L00-FMRxxxxx-07-00-00-de-007 Fig. 2: Display Endress+Hauser...
  • Page 35 Navigate to the right within a function group, confirmation Contrast settings of the LCD Hardware locking/unlocking After hardware locking, operation via display and communication is not possible! The hardware can only be unlocked via the display. A release code must be entered for this purpose. Endress+Hauser...

  • Page 36: Local Operation

    It is not possible to unlock the hardware by communication. All parameters can be displayed even if the instrument is locked. ⇒ ENDRESS + HAUSER Press simultaneously – ⇓ ⇓ The LOCK_SYMBOL appears on the LCD. Endress+Hauser...
  • Page 37 There is no need to change these parameters under normal circumstances and consequently, they are protected by a special code known only to the Endress+Hauser service organization. Please contact Endress+Hauser if you have any questions.
  • Page 38 • Sep. character (096) • End of probe (030) • Unlock parameter (0A4) • Level/ullage (040) • application par (0A8) • Linearization (041) • tag no (0C0) • Customer unit (042) A complete “basic setup" (00) must be activated. Endress+Hauser...

  • Page 39: Displaying And Acknowledging Error Messages

    • The "diagnostics" (0A) function group can display the current error as well as the last error that occurred. • If several errors are currently pending, use to scroll through the error messages. • The last error to occur can be deleted in the "diagnostics" (0A) function group with the function "clear last error" (0A2). Endress+Hauser...
  • Page 40 5.4.2 Endress+Hauser operating program FieldCare is an Endress+Hauser Plant Asset Management Tool based on FDT technology. You can use Field-Care to configure all your Endress+Hauser devices, as well as devices from other manufacturers that support the FDT standard. It is compatible with the following operating systems: Win2000, WinXP and Windows Vista.
  • Page 41 Levelflex M FMP43 with PROFIBUS PA Operation Signal analysis via envelope curve L00-FMP4xxxx-20-00-00-en-007 Tank linearization L00-fmp-Ixxx-20-00-00-en-041 Endress+Hauser...

  • Page 42: Profibus Pa Communication

    Ex ia IIC according to the FISCO model). The bus power is supplied by the segment coupler. On- site- as well as remote operation are possible. For detailed information on the PROFIBUS PA standard refer to Operation Instructions BA 198F/00/en and the standards EN 50 170/DIN 19 245 (PROFIBUS PA) and EN 50 020 (FISCO model). Endress+Hauser...
  • Page 43 DIP-switches 1 to 7 according to the following table: Switch No. Value in position "OFF" Value in Position "ON" The new address becomes valid 10 seconds after switching. It results a new instrument restart. Endress+Hauser...
  • Page 44 PA139700.gsd for instruments with one analogue input block. This file supports the transmission of the main value. Transmission of a second cyclic value or a display value is not supported. When the universal database is used, the option "profile" must be selected in the function "Ident number" (061). Endress+Hauser...
  • Page 45 This is a value which can be transferred from the PLC to the Levelflex M in order to be shown on the display. FREE PLACE This module must be applied during configuration (see below), if the 2nd cyclic value or the display value are not to appear in the data telegram. Endress+Hauser...
  • Page 46 Die Output-Daten von der SPS für das Display am Gerät haben folgende Struktur: Index Data Access Format/Remarks Input Data 0, 1, 2, 3 Display value write 32 bit floating point number (IEEE-754) Status code for Display value write see "Status codes" Endress+Hauser...
  • Page 47 40 F0 00 00 (hex) = 0100 0000 1111 0000 0000 0000 0000 0000 (bin) (129-127) = (-1) x (1 + 2 = 1 x 2 x (1 + 0.5 + 0.25 + 0.125) = 1 x 4 x 1.875 = 7.5 Endress+Hauser...
  • Page 48 89 Hex GOOD LOW_LIM (alarm active) 8A Hex GOOD HI_LIM (alarm active) 8D Hex GOOD LOW_LOW_LIM (alarm active) 8E Hex GOOD HI_HI_LIM (alarm active) If a status other than "GOOD" is sent to the instrument, the display indicates an error. Endress+Hauser...
  • Page 49 If the application program is badly designed, however, this limit can be reached quickly, and the RAM will fail The Levelflex M supports MS2AC communication with two SAP´s. The Levelflex M does not support MS1AC communication. Endress+Hauser...
  • Page 50 Linearisation type UNSIGNED8 static Channel UNSIGNED16 static PV fail safe time FLOAT non-vol. Fail safe type UNSIGNED8 static Fail safe value FLOAT static Alarm Hysteresis FLOAT static HI HI Limit FLOAT static HI Limit FLOAT static LO Limit FLOAT static Endress+Hauser...
  • Page 51 Instrument certification OSTRING constant Security locking V9H9 UNSIGNED16 non-vol. Factory reset V9H5 UNSIGNED16 non-vol. Descriptor OSTRING static Instrument message OSTRING static Instrument instal. date OSTRING static Gap reserved Ident number select V6H0 UNSIGNED8 static HW write protection UNSIGNED8 dynamic Endress+Hauser...
  • Page 52 Up Down control UNSIGNED8 dynamic Up Down param OSTRING dynamic Bus address UNSIGNED8 dynamic Instrument SW No. UNSIGNED16 dynamic set unit to bus UNSIGNED8 static input value FLOAT+U8+U dynamic Select Main value UNSIGNED8 dynamic PA profile revision OSTRING constant Endress+Hauser...
  • Page 53 V2H1 UNSIGNED8 static Probe free V2H2 UNSIGNED8 static Probe length V2H3 FLOAT static Probe length setup V2H4 UNSIGNED8 static 163- Level/ullage V3H0 UNSIGNED8 static Linearisation mode V3H1 UNSIGNED8 static Customer unit V3H2 UNSIGNED16 static Table no. V3H3 UNSIGNED8 static Endress+Hauser...
  • Page 54 Display test V6H7 UNSIGNED8 static 206 - 218- Actual alarm V9H0 STRUCT dynamic Last alarm V9H1 STRUCT dynamic Clear last alarm V9H2 UNSIGNED8 static Reset V9H3 UNSIGNED16 static Operating code V9H4 UNSIGNED16 static Measured distance V9H5 FLOAT dynamic Endress+Hauser...
  • Page 55 On-site display The on-site display always displayes the main value V0H0 directly from the Transducer Block. Digital output For the digital output this value is rescaled in two steps: PV_SCALE_MAX from Transducer V0H0 block PV_SCALE_MIN AI_OUT OUT_SCALE OUT_SCALE (V6H2) L00-FMUx3xxx-05-00-00-en-001 Endress+Hauser...
  • Page 56 Thereby the new unit also becomes effective at the output. " Caution! If a linearisation has been carried out, it must be confirmed by the "Set unit to bus" (062) function in order to become effective at the digital output. Endress+Hauser...

  • Page 57: Commissioning

    Select the basic unit (this message appears the first time the instrument is switched on) ⇓ The current measured value is displayed ⇓ After pressing , you are taken to the group selection. This selection enables you to perform the basic setup Endress+Hauser...

  • Page 58: Basic Setup

    059 D = distance (distance flange / product) SD = safety distance display in 0A5 setting in 015 = level linearisation display in 0A6 extended calibr. L00-FMP43xxx-19-00-00-en-001 The basic setup is sufficient for successful commissioning in most applications. Endress+Hauser...
  • Page 59 • If the power supply fails, all preset and configured values remain safely stored in the EEPROM. " Caution! All functions are described in detail, as is the overview of the operating menu itself, in BA245F – "Description of Instrument Functions" on the CD-ROM supplied. Endress+Hauser...

  • Page 60: Basic Setup With Display Vu331

    (see installation in plastic containers). When using a metallic surface at the process connection, the "standard" option is sufficient! Note! In principle, it is preferable to use a metallic surface at the process connection! Endress+Hauser...
  • Page 61 – Mineral oils, fuels – Benzene, styrene, toluene 2.5 to 4 – Furan 4 m (354") – Naphthalene – Chlorobenzene, chloroform 4 to 7 – Cellulose spray – Isocyanate, aniline – Aqueous solutions > 7 – Alcohols – Acids, alkalis Endress+Hauser...
  • Page 62 The signal from the probe end is positive if the attachment is grounded. Only the setting "free" is permitted for the FMP43. Options: • Free • Tie down isol. • Tie down gnd. These settings lead to a false output signal for empty tanks. Endress+Hauser...
  • Page 63 (034) function. If the probe is covered, a correct entry is required in the "probe length" (033) function. Options: • Free • Covered Function "probe length" (033) ⇒ ENDRESS + HAUSER – Use this function to enter the probe length manually. Endress+Hauser...
  • Page 64 10 s. Function "empty calibr." (005) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the flange (reference point of the measurement) to the minimum level (=zero). E = empty calibration (= zero) L00-FMP4xxxx-14-00-06-en-008 Endress+Hauser...
  • Page 65 Function "full calibr." (006) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the minimum level to the maximum level (=span). 100% F = full calibration (= span) F max = E – upper blocking distance L00-FMP4xxxx-14-00-06-en-009 Endress+Hauser...
  • Page 66 The following options are available: Options: • Distance = ok • Dist. too small • Dist. too big • Dist. unknown • Manual • Probe free distance too small distance = ok L00-FMP4xxxx-14-00-06-en-010 Endress+Hauser...
  • Page 67 Function "start mapping"(053) ⇒ ENDRESS + HAUSER – This function is used to start the interference echo suppression up to the distance entered in "range of mapping" (052). Options: • Off: no mapping is carried out • On: mapping is started Endress+Hauser...
  • Page 68 ENDRESS + HAUSER – ⇓ After 3 s, the following message appears Note! After the basic setup, it is recommended to evaluate the measurement with the aid of the envelope curve ("envelope curve" (0E) function group) (→ ä 71). Endress+Hauser...

  • Page 69: Blocking Distance

    The blocking distance is preset to 0.2 m for rod probes. The blocking distance can be reduced if the probe is mounted flush with the wall or in a nozzle, max. 50 mm in height. When using a spray ball the blocking distance may not be smaller than 50 mm. Endress+Hauser...
  • Page 70 - 20 mm - 30 mm (water-based - 40 mm DK > 7 medium) - 50 mm oils and solvents - 60 mm DK = 2 100 mm 200 mm 200 mm 80 mm 40 mm 20 mm L00-FMP43xxx-05-00-00-en-001 Endress+Hauser...

  • Page 71: Envelope Curve With Vu331

    – Note! If the envelope curve mode is active on the display, the measured values are updated in a slower cycle time. Thus, it is advisable to leave the envelope curve mode after the measuring point has been optimized. Endress+Hauser...

  • Page 72: Function "Envelope Curve Display" (0E3)

    Difference curve = envelope curve - mapping (empty curve) The mapping (empty curve) should be a good representation of the probe and the empty tank or silo. Ideally, only the signals from the medium being measured remain in the difference curve. Endress+Hauser...
  • Page 73 Horizontal zoom mode Press , to switch to the envelope curve navigation. You are now in the horizontal zoom mode. Either is displayed. You now have the following options: • increases the horizontal scale. • decreases the horizontal scale. L00-FMPxxxxx-07-00-00-xx-001 Endress+Hauser...
  • Page 74 The set increases and shifts are retained. Only when you reactivate the "recording curve"(0E2) function does the Levelflex use the standard display again. ⇒ ENDRESS + HAUSER – ⇓ After 3 s, the following message appears Endress+Hauser...

  • Page 75: Basic Setup With The Endress+Hauser Operating Program

    Levelflex M FMP43 with PROFIBUS PA Commissioning Basic setup with the Endress+Hauser operating program To carry out the basic setup with the operating program, proceed as follows: • Start the operating program and establish a connection. • Select the "basic setup" function group in the navigation window.
  • Page 76 • Enter the application parameters (see chapter basic setup with "VU331"): – tank properties – medium properties – process properties l00-fmp4xxxx-20-00-00-en-002 Basic setup step 3/6: • Enter the application parameters (see chapter basic setup with "VU331"): – end of probe l00-fmp4xxxx-20-00-00-en-003 Endress+Hauser...
  • Page 77 • Enter the application parameters (see chapter basic setup with "VU331"): – probe length – probe – probe length – determine length l00-fmp4xxxx-20-00-00-en-004 Basic setup step 5/6: • Enter the application parameters (see chapter basic setup with "VU331"): – empty calibration – full calibration l00-fmp4xxxx-20-00-00-en-005 Endress+Hauser...
  • Page 78 Signal analysis via envelope curve After the basic setup, it is recommended to evaluate the measurement with the aid of the envelope curve. L00-FMP4xxxx-20-00-00-en-007 Note! In the event of severe interference echoes, installing the Levelflex at another point can optimize the measurement routine. Endress+Hauser...
  • Page 79 Level echoes are indicated as positive signals in the envelope curve. Interference echoes can be both positive (e.g. reflections from internals) and negative (e.g. nozzles). The envelope curve, the map and the differential curve are used for the evaluation. Level echoes are searched for in the differential curve. Endress+Hauser...
  • Page 80 0.00 0.20 0.40 0.60 0.80 1.00 Differential curve = Envelope curve Mapping L00-FMP40xxx-05-00-00-en-025 6.8.2 User-specific applications (operation) For details of setting the parameters of user-specific applications, see separate documentation BA245F – "Description of Instrument Functions" on the CD-ROM supplied. Endress+Hauser...

  • Page 81: Maintenance

    • Carry out repairs according to the instructions. On completion of repairs, carry out the specified individual test on the instrument. • Only Endress+Hauser Service may convert a certified instrument into a different certified version. • Document all repair work and conversions.

  • Page 82: Accessories

    Welding adapter with M 24 x of 1.5 - threads for the front-concise assembly of the sensor. Material: corrosion-resistant steel 1.4435 (AISI 316L) Ø 65 Weight: 0.22 kg For details refer to BA361F/00/A6. L00-FMP43xxx-06-00-00-xx-016 • Standard Order No.: 71041381 • With 3.1 inspection certificate Order No.: 71041383 Endress+Hauser...

  • Page 83: Remote Display And Operation Fhx40

    Basic version Mounting bracket, pipe 1"/ 2" Special version, to be specified Marking: Tagging (TAG) FHX40 - Complete product designation For connection of the remote display FHX40 use the cable which fits the communication version of the respective instrument. Endress+Hauser...

  • Page 84: Commubox Fxa291

    Levelflex M FMP43 with PROFIBUS PA Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field instruments with CDI interface (= Endress+Hauser Common Data Interface) to the USB port of a computer or laptop. For details refer to TI405C/07/en. Note! For the following Endress+Hauser instruments you need the "ToF Adapter FXA291" as an additional accessory: •...

  • Page 85: Protective Cover

    For details refer to BA362F/00/A6. Order No.: 71041379 L00-FMP43xxx-06-00-00-xx-016 Calibration kit The calibration kit is used to regularly test the accuracy and reproducibility of the Levelflex M FMP43 level measurement instrument. For details refer to BA360F/00/en. Order No.: 71041382 Endress+Hauser...

  • Page 86: Troubleshooting

    Ready Communication ok? terminator function Check screening (see BA Section EMC interference? Communication ok? Ready 'Connection’) Contact Endress+Hauser Service Communication via Service adapter Not ok Check configuration Correct configuration Communication ok? Ready does not function of COM port on PC...

  • Page 87: System Error Messages

    A251 feedthrough lost contact in the process feedthrough replace process feedthrough Endress+Hauser...
  • Page 88 A671 linearization ch1 not linearization table is in edit mode activate linearization table complete, not usable W681 current ch1 out of range current out of range check basic setup and linearization (3.8 mA to 21.5 mA) Endress+Hauser...

  • Page 89: Application Errors

    Noise level during the Repeat empty calibr. (005) once echo) after event of echo loss the output is set to any initialization phase too more. switching on the value/current. high. Caution! power supply Before confirmation change with to the edit mode. Endress+Hauser...
  • Page 90 (slope incorrect. properties selected → error in the entire Calibration not possible. 100% → measuring range) Selection expected → Select standard → Thresholds too high 2.) actual 1.) actual t → L00-FMP4xxxx-19-00-00-en-021 Medium properties Select lower medium properties. incorrect. Endress+Hauser...

  • Page 91: Spare Parts

    Select the required spare parts (You may also use the overview drawing on the right side of the screen.) When ordering spare parts, always quote the serial number indicated on the nameplate. As far as necessary, the spare parts also include replacement instructions. Endress+Hauser...

  • Page 92: Return

    Instrument Functions 07.2007 01.04.02 Original software. BA358F/00/en/07.07 BA245F/00/en/07.07 71041163 71040940 BA358F/00/en/03.09 71074937 Contact addresses of Endress+Hauser Contact addresses can be found on our homepage: www.endress.com/worldwide. If you have any questions, please do not hesitate to contact your Endress+Hauser representative. Endress+Hauser...

  • Page 93: Technical Data

    The measurements are carried out in accordance with EN 61298-3: temperature • Digital output (HART, PROFIBUS PA, FOUNDATION Fieldbus): – average T : 0.6 mm/10 K, max. ±3.5 mm over the entire temperature range -40 °C to +80 °C Endress+Hauser...
  • Page 94 Thick layers can dampen the signal and then reduce the measuring range. Heavy, uneven buildup, adhesion through crystallization, for example, can lead to incorrect measurement. In such instances, we recommend you use a non-contact measuring principle, or check the probe regularly for soiling. Endress+Hauser...
  • Page 95 • ASME B 16.5a - 1998 Tab. 2-2.2 F316 • ASME B 16.5a - 1998 Tab. 2.3.8 N10276 • JIS B 2220 See chapter "Dimensions" from → ä 13. Materials in contact with process ε r ≥ 1.6 Dielectric constant Endress+Hauser...
  • Page 96 See "Ordering structure" on → ä 8. Process connection See "Ordering structure" on → ä 8. Probe Note! The modular structure of the probe makes a simple possible exchanges of the process seals, the probe rod and the process coupling ring. Endress+Hauser...
  • Page 97 The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the instrument by affixing to it the CE mark. Certificates The instruments are certified for use in hazardous areas.
  • Page 98 The gap-free connections can be cleaned without residue using the usual cleaning methods. Many versions of the Levelflex M meet the requirements of 3A-Sanitary Standard No. 74. Endress+Hauser confirms this by attaching the 3A symbol. Pharma (CoC) Certificate of Compliance (CoC) •...
  • Page 99 Levelflex M FMP43 with PROFIBUS PA Technical data Endress+Hauser...

  • Page 100: Appendix

    + sw-no. serial no. Note! The default values of the parameters are typed in boldface. L00-FMP4xxxx-19-00-01-en-007 Endress+Hauser...
  • Page 101 . point , comma detection window measured dist. measured level application par. not modified modified reset distance unit download mode L00-FMP4xxxx-19-00-02-en-007 Endress+Hauser...

  • Page 102: Description Of Functions

    The dielectric constant (DK) of the medium has a direct impact on the degree of reflection of the high-frequency pulses. In the case of large DK values, such as for water or ammonia, there is strong pulse reflection while, with low DK values, such as for hydrocarbons, weak pulse reflection is experienced. Endress+Hauser...
  • Page 103 • With a personal computer, FXA291 and ToF Adapter FXA291 (USB) and the operating software "FieldCare". The FieldCare is a graphical operating software for instruments from Endress+Hauser (radar, ultrasonic, guided micro-pulse). It assists with commissioning, data backup, signal analysis and documentation of the measuring point.
