Technical Information

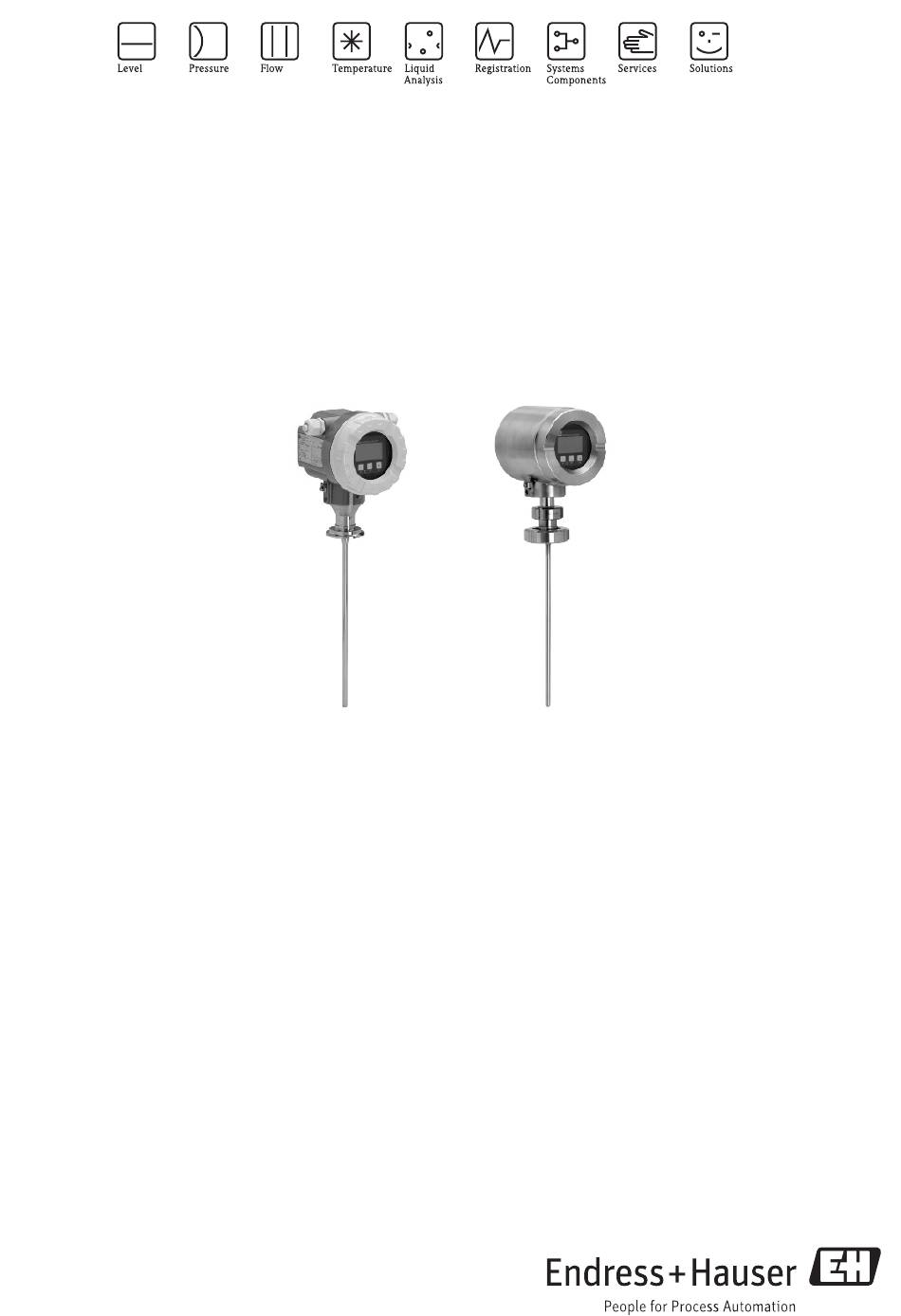

Levelflex M FMP43
Guided Level-Radar
Continuous Level Transmitter for continuous level measurement
in liquids in hygienic applications.
Application
The Levelflex M FMP43 is used for continuous level
measurement of liquids in applications with special
hygienic requirements:
Materials
• All wetted components are FDA-listed and tested in
accordance with USP Cl. VI.
• Choice of mechanically polished or electropolished
metal surfaces up to 0.38 μm and low Δ ferrite
content.
Design
• The design is flush-mounted and gap-free and meets
ASME BPE requirements.
• The probe is completely dismountable; the probe rod,
process connection and seals are replaceable.
• Aseptic process connections from DN25 (1") are
available.
• The probe is autoclavable and suitable for CIP, SIP.
Approvals (hygiene)
• Approvals according to 3A and EHEDG
• Certificate of Compliance (CoC)
The following interfaces are available for system
integration:
• HART (standard) with 4 to 20 mA analog;
PROFIBUS PA, FOUNDATION Fieldbus
TI00424F/00/EN/15.12
71198463
Your benefits
• Measurement independent of product properties
such as:
– density,
– dielectric constant,
– conductivity.
• Measurement possible despite very turbulent
surfaces or foam.
• Easy menu-guided onsite operation via four-line plain
text display.
• Convenient remote operation, diagnosis and
documentation of the measuring point via the
FieldCare operating program which is provided free of
charge.
• Optional remote display and operation.
• Envelope curve presentation onsite on the display for
easy diagnosis.
• Electronics can be replaced without opening the tank.
• Application in safety related systems (Overfill
prevention) with requirements for functional safety up
to SIL 2 in accordance to IEC 61508/IEC 61511-1.
• Approvals:
– Europe: ATEX
– North America: FM, CSA
– China: NEPSI (in preparation)
