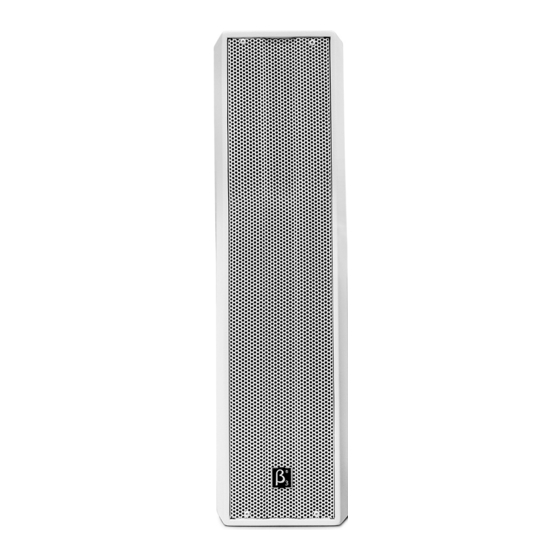

4x4" two way full range speaker
Hide thumbs
Also See for MU Series Pro:
- User manual (11 pages) ,
- User manual (11 pages) ,
- User manual (11 pages)
Related Manuals for Beta Three MU Series Pro
Summary of Contents for Beta Three MU Series Pro
- Page 1 MU404 4x4" Two Way Full Range Speaker MU Series Pro Loudspeaker System User Manual U M - M U 4 0 4 - 2 0 1 2 0 4 1 0 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buying product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
MU404 CONTENT MU Series Pro Loudspeaker System CONTENT PRODUCT INTRODUCTION Main Features Product Description Applications CONNECTION Push Terminals System Reference Diagram INSTALLATION Optional Installation Accessories Installation Options TECHNICAL SPECIFICATIONS Specifications Frequency Response and Impedance Curve Dimensions Product information may be updated without notification, please visit www.elderaudio.com for... -
Page 4: Product Introduction
MU404 PRODUCT INTRODUCTION MU Series Pro Loudspeaker System MU404 4x4" Two Way Full Range Speaker Main Features With 4 inches all frequency unit and 44 core compression of medium-sized column speaker. Frequency response 160Hz-20kHz(-3dB). Sensitivity 88dB, Max SPL 109dB. Dispersion 150 x 150 . -
Page 5: Connection
MU404 CONNECTION MU Series Pro Loudspeaker System The 4 way push terminal connectors are available for amplifier connections. Paralelled connector is very convenient for another speaker connection. Push Terminals INPUT Crossover System Reference Diagram Processor (Optional EQ curves available on CD) -
Page 6: Installation
MU404 INSTALLATION MU Series Pro Loudspeaker System Installation Accessories(Optional) Installation Reference 1.Hanging A The standard flying mounting hardware is very convenient for different installations and applications. 1.Wall bracket 2. U-Bracket 2.Hanging B(U-Bracket) 3. L-Bracket 3.Hanging B(L-Bracket) Warning: Always ensure the mounting accessories safety factor is not less than 5:1 or that it meets the local standards. -
Page 7: Technical Specifications
MU404 TECHNICAL SPECIFICATIONS MU Series Pro Loudspeaker System Specifications Speaker Testing Method 1. Frequency Response Passive Wooden Speaker Product: 4 x 4'' LF , 1x44mmHF Use Pink noise to test the speaker in the anechoic chamber, adjust the Transducer: level to make the speaker work at its rated impedance and set the output... -
Page 8: Dimensions
MU404 TECHNICAL SPECIFICATIONS MU Series Pro Loudspeaker System Dimensions Top view 144mm [5.7in] Side view Front view Back view Bottom view... - Page 9 Notes:...
