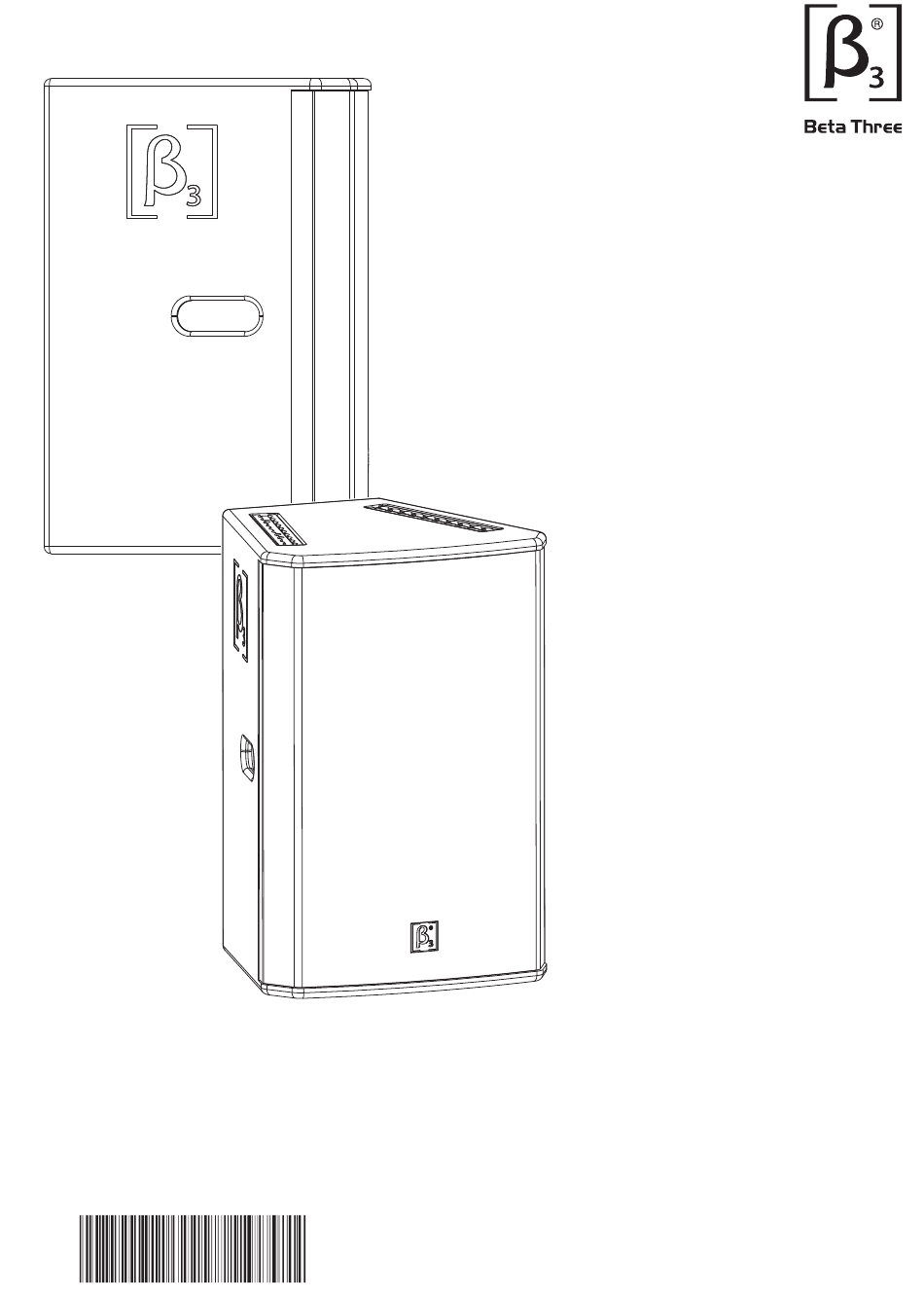

- Page 1 MU12a Two Way12" Full Range Active Speaker MU Series Pro Loudspeaker System User Manual UM- MU1 2 a - 2 0 1 0 0 5 1 4 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
MU12a CONTENT MU Series Pro Loudspeaker System CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Amplifier Module INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve 2D Dimension Product information subjects to be updated without notification, please visit www.elderaudio.com for... -
Page 4: Introduction
Sound quality: clear, mellow and stretchy. Description Applications β3 MU12a is a two way full range active speaker adopting the new structure and new painting technology. It consists of Church one 12" transducer, one 3" compression driver and one two Small Auditorium channel high power amplifier module. -
Page 5: Amplifier Module
MU12a CONNECTION MU Series Pro Loudspeaker System AMPLIFIER MODULE MU12a 12-Inch Two-Way Full-Range Active Speaker System VOLUME BASS TREBLE CLIP LINE INPUT OUTPUT LINE RoHS S/N: POWER SOURCE: 220V 50Hz POWER CONSUMPTION: 460W FUSE: T 5AL 250V ELDER AUDIO MANUFACTURE CO., LTD. -
Page 6: Installation
MU12a INSTALLATION MU Series Pro Loudspeaker System Mounting Accessories(Optional) Installation Reference The standard flying mounting hardware is very convenient 1. Vertical flying mounting installation for different installations and applications. 1. Speaker stand SPS-502BC Black 2. Horizontal flying mounting installation 2. Standard flying mounting ring... -
Page 7: Technical Specification
MU12a TECHNICAL SPECIFICATION MU Series Pro Loudspeaker System Specification 55Hz-16kHz Frequency response(-3dB): Max.SPL(1m): 121dB/127dB(PEAK) Dispersion(H×V): 60 ×40 × Transducer: 12" Woofer × 3" Compression Driver Connector: 6.35/XLR for input, XLR for output Input: One channel balanced input(line and MIC) Input impedance(line):... -
Page 8: 2D Dimension
MU12a TECHNICAL SPECIFICATION MU Series Pro Loudspeaker System 2D Dimension Top view 420mm [16.54in] Side view Front view Back view Bottom view... - Page 9 Notes:...
- Page 10 www.beta3pro.com...
