Beta Three MU Series User Manual
Two way full range speaker with dual 15" woofers
Hide thumbs
Also See for MU Series:
- User manual (11 pages) ,
- User manual (11 pages) ,
- User manual (10 pages)
Related Manuals for Beta Three MU Series
Summary of Contents for Beta Three MU Series

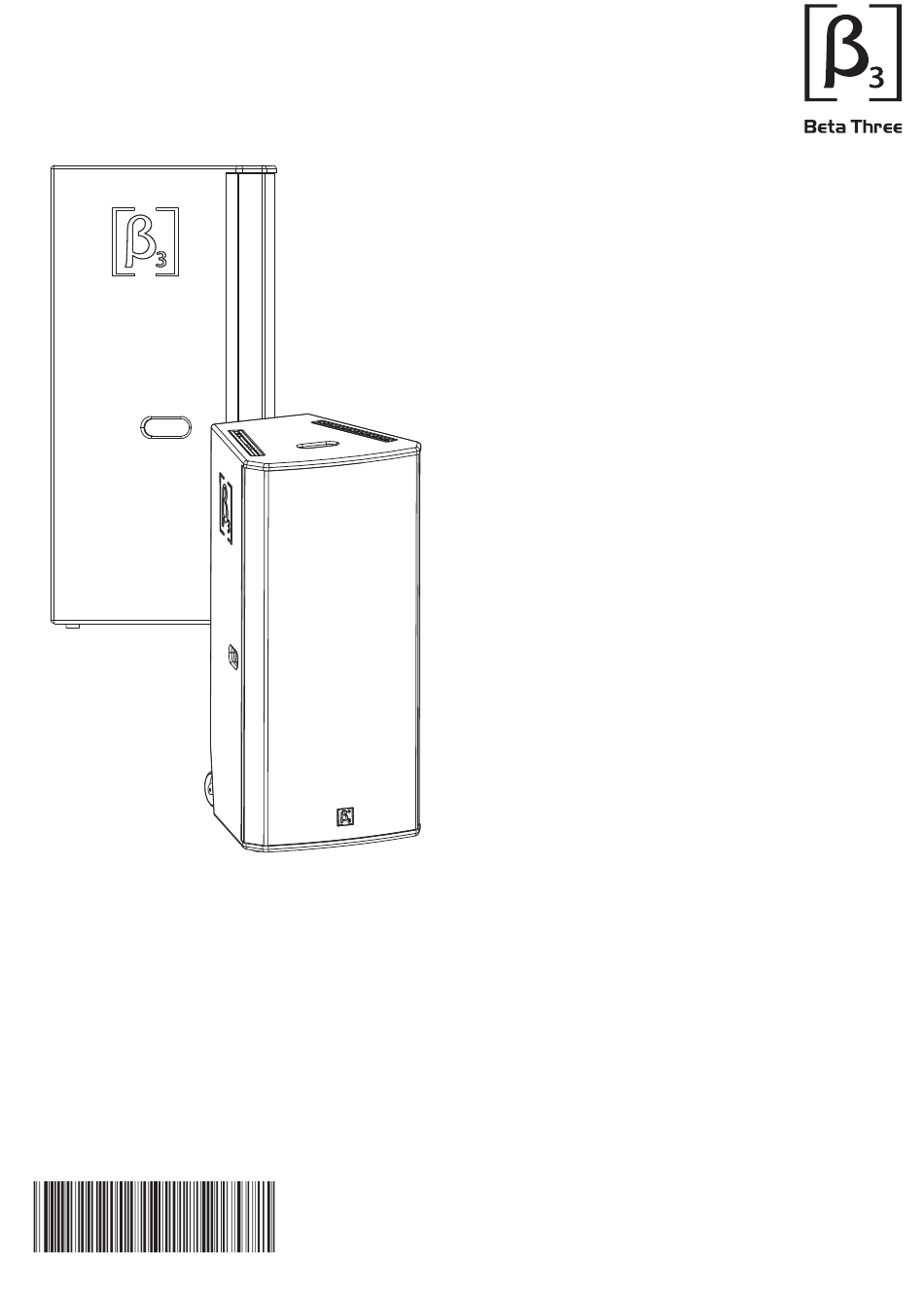

- Page 1 MU215 Two Way Full Range Speaker With Dual 15" Woofers MU Series Pro Loudspeaker System User Manual UM- MU21 5 - 2 0 1 8 0 1 0 5 Ve r...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buying product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
MU215 CONTENT MU Series Pro Loudspeaker System CONTENT INTRODUCTION Features Description Applications CONNECTION Terminal Plate NL4 Connection System Connection Reference Loudspeaker Connection INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve Frequency Response And Impedance Curve... -
Page 4: Introduction
MU215 INTODUCTION MU Series Pro Loudspeaker System MU215 Built-in crossover dual 15" full range speaker Features Two way full range phase inverted speaker with double 15" woofers and 3" compression driver. Dispersion 90 x40 . Advanced free protection crossover assure the reliability of driver. -
Page 5: Connection
MU215 CONNECTION MU Series Pro Loudspeaker System Two NL4 connectors are available for amplifier connection. Paralelled connector is very convenient for another speaker connection. Terminal Plate 1+ 1- INPUT MU215 Warranty does not cover damage caused by incorrect installation, operation or overload. -
Page 6: Loudspeaker Connection
MU215 CONNECTION MU Series Pro Loudspeaker System Speaker Wiring 1. Banana plugs to NL4 Connect to amplifier Connect to speaker 2. NL4 to NL4 Connect to amplifier Connect to speaker 3. Consumption curve of connection cable(Only for reference, the result is different if adopting the different cables) -
Page 7: Installation
MU215 INSTALLATION MU Series Pro Loudspeaker System Mounting Accessories(Optional) Installation Reference The standard flying mounting hardware is very convenient 1. Vertical flying mounting installation: for different installation and applications. 1. Standard flying mounting ring 2. Mobile Caster Caster: φ100 *34mm 2 pcs Screws: M8 *30 Hexagon 8 pcs Spring washers: φ8 (Black) 8 pcs... -
Page 8: Technical Specification
MU215 TECHNICAL SPECIFICATION MU Series Pro Loudspeaker System Specification Speaker Testing Method System: Passive full range wooden speaker with painting 1. Frequency Response Tweeter: 3" Compression Driver Use Pink noise to test the speaker in the anechoic chamber, 2×15" Neodymium woofers... -
Page 9: 2D Dimension
MU215 TECHNICAL SPECIFICATION MU Series Pro Loudspeaker System 2D Dimension Top view 530mm [20.87in] Side view Front view Back view Bottom view... - Page 10 Notes:...
- Page 11 www.beta3pro.com.
