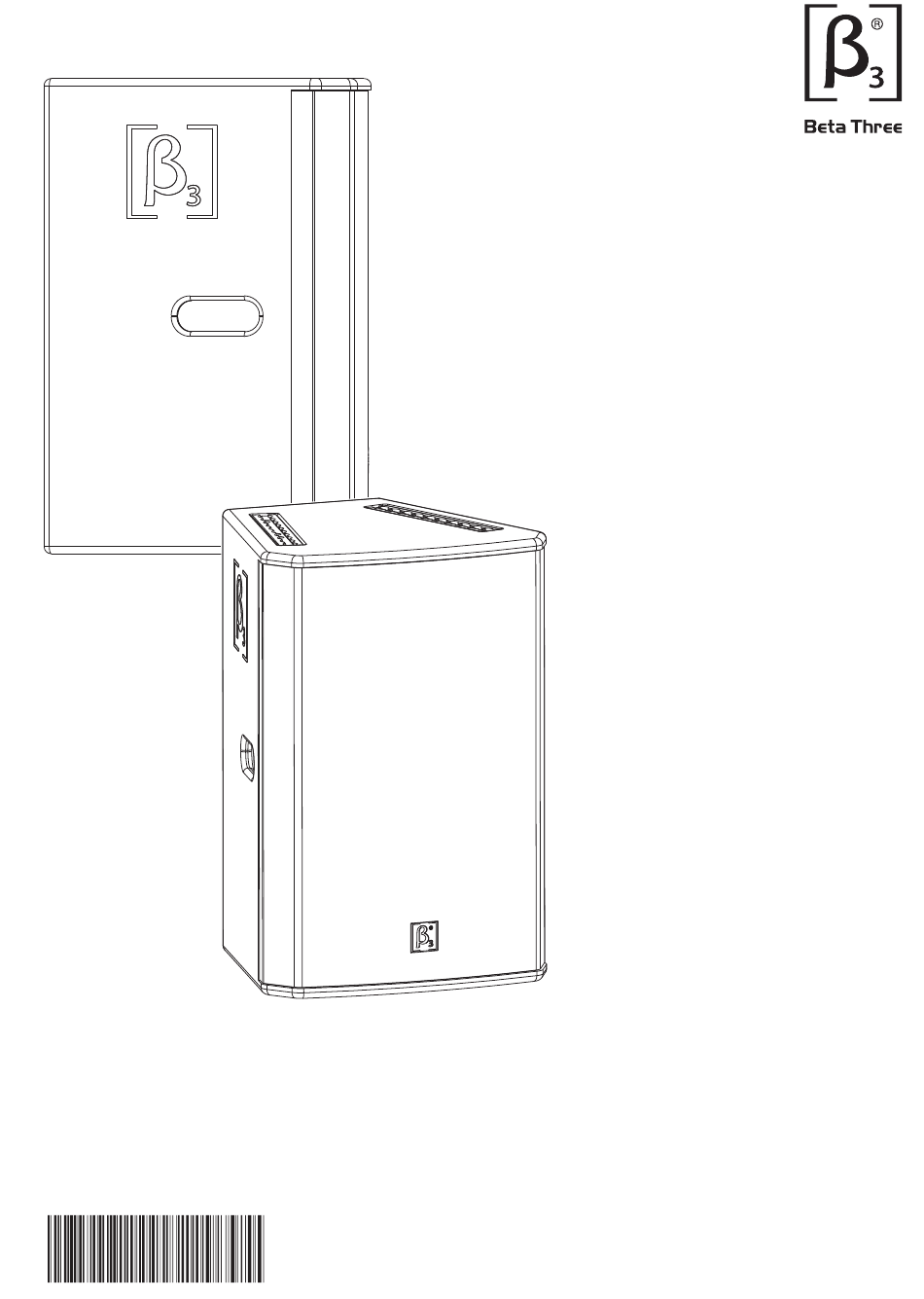

- Page 1 MU12 12" Two Way Full Range Speaker With Built-in Crossover MU Series Pro Loudspeaker System User Manual UM- MU1 2 - 2 0 0 9 1 2 2 5 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
MU12 CONTENT MU Series Pro Loudspeaker System CONTENT INTRODUCTION Features Description Applications CONNECTION Terminal Plate NL4 Connection System Connection Reference Loudspeaker Connection INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve 2D Dimension Product information subjects to be updated without notification, please visit www.elderaudio.com for latest update. -
Page 4: Introduction
MU12 INTODUCTION MU Series Pro Loudspeaker System MU12 12" two way full range speaker with built-in crossover Features Two way full range phase inverted speaker with 15" woofer and 3" compression driver. Dispersion 60 x40 , the controlled frequency reach to 1kHz. Advanced free protection design assure the reliability of tweeter. -
Page 5: Connection
MU12 CONNECTION MU Series Pro Loudspeaker System Two NL4 connectors are available for amplifier connections. Paralelled connector is very convenient for another speaker connection. Terminal Plate MU12 Warranty does not cover damage caused by incorrect installation, operation or overload. 1+ 1- INPUT No.: INPUT 1+ 1- : INPUT... -
Page 6: Loudspeaker Connection
MU12 CONNECTION MU Series Pro Loudspeaker System Speaker Wiring 1. Banana plugs to NL4 Connect to amplifier Connect to speaker 2. NL4 to NL4 Connect to amplifier Connect to speaker 3. Consumption curve of connection cable(Only for reference, the result is different if adopting the different cables) 8 Ohm 4 Ohm 2 Ohm... -
Page 7: Installation
MU12 INSTALLATION MU Series Pro Loudspeaker System Mounting Accessories Installation Reference The standard flying mounting hardware is very convenient 1. Vertical flying mounting installation for different installations and applications. 1. Speaker stand SPS-502BC Black 2. Horizontal flying mounting installation 2. Standard flying mounting ring Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local... -
Page 8: Technical Specification
MU12 TECHNICAL SPECIFICATION MU Series Pro Loudspeaker System Technical Specification Speaker Testing Method System: Passive full range wooden 1. Frequency Response speaker with painting Use Pink noise to test the speaker in the anechoic chamber, Tweeter: 1×3"compression driver adjust the level to make the speaker work at its rated impedance and set the output power at 1W, then test the frequency response... -
Page 9: 2D Dimension
MU12 TECHNICAL SPECIFICATION MU Series Pro Loudspeaker System 2D Dimension Top view 420mm [16.54in] Front view Side view Back view Bottom view... - Page 10 Notes:...
