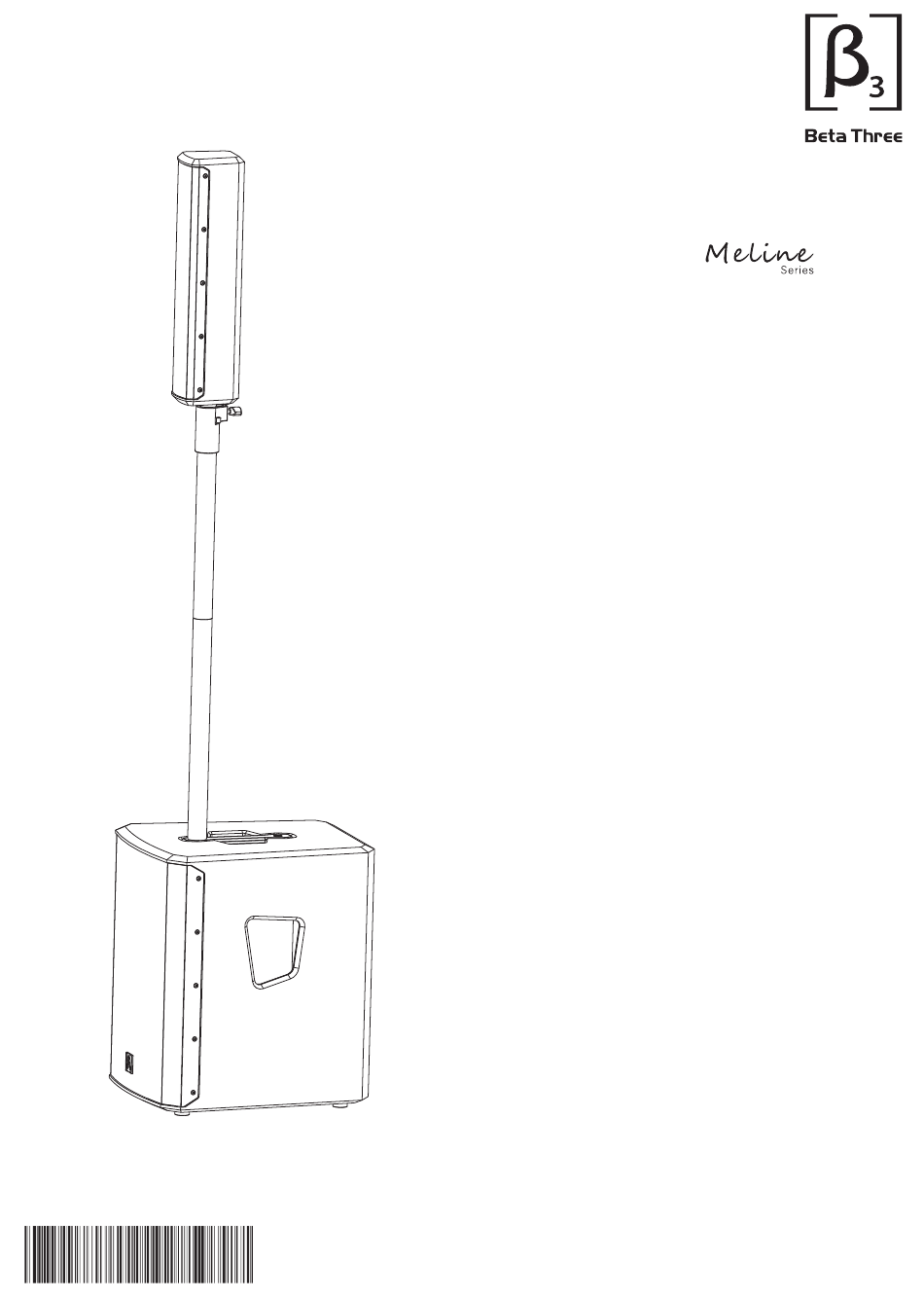

- Page 1 Professional Active Performance System User Manual U M - M e l i n e S 1 5 - 2 0 1 8 0 4 0 3 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
CONTENT CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Amplifier Module INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response Curve and THD Curve 2D Dimension Product information is subject to change without prior notification. Please visit www.beta3pro.com for the latest updates. -
Page 4: Introduction

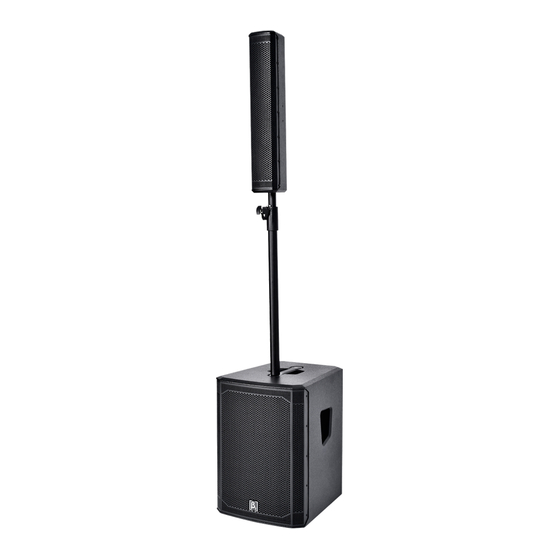

Meline S15 is an active two-way 9-unit inverting full-range speaker, specially designed for small touring performance. Meline S15 is a perfect sound reinforcement solution that can be used quickly and easy setup . Installment and inter- connecting can be done with one minute,easily carry with bags. -
Page 5: Amplifier Module
AMPLIFIER MODULE Amplifier Module 1、MAIN VOL KNOB: The master volume control , MIN is the minimum volume, MAX is the volume maximum. 2、SUB VOL KNOB: The master volume control , MIN is the minimum volume, MAX is the volume maximum. 3、TREBLE VOL KNOB: Treble volume control , 12dB attenuation at -12 , 12dB increase at +12... -
Page 6: Installation
INSTALLATION Installation Accessories Installation Reference 1.Full Frequency Speaker BAG: 101.05.0007.00083 1. Fast Installation Following the instruction arrow to install , turn it clockwise to fix it. 2.Support Rod: 101.06.0036.00530 2.Bass Speaker BAG : 101.05.0007.00085(Optional) -
Page 7: Technical Specification
TECHNICAL SPECIFICATION Specification Frequency response(-3dB): 45Hz-18kHz 119dB/125dB(PEAK) Max.SPL: Dispersion(H×V): 90 ×40 Transducer: 1× 15" Woofer 8× 2" Full-frequency unit Power: LF:350W,MF:200W Rated impedance: 4 Ohms XLS、RCA、6.35 MIC INPUT 、Mixed male output Connector: Input: Three channel balanced input XLR/ 6.35、TRS、RCA Input impedance(line): 20kohm balanced input, 10kohm unbalanced input Input impedance(MIC): 2kohm balanced input, 1kohm unbalanced input... -
Page 8: 2D Dimension
TECHNICAL SPECIFICATION 2D Dimension Front view Side view Back view 420mm 490mm (16.54in) (19.29in) Meline S15 EXT: Top view Front view Top view (subwoofer) Side view Back view 130mm (5.12in) 110mm (4.33in) Bottom view... - Page 9 Notes:...
