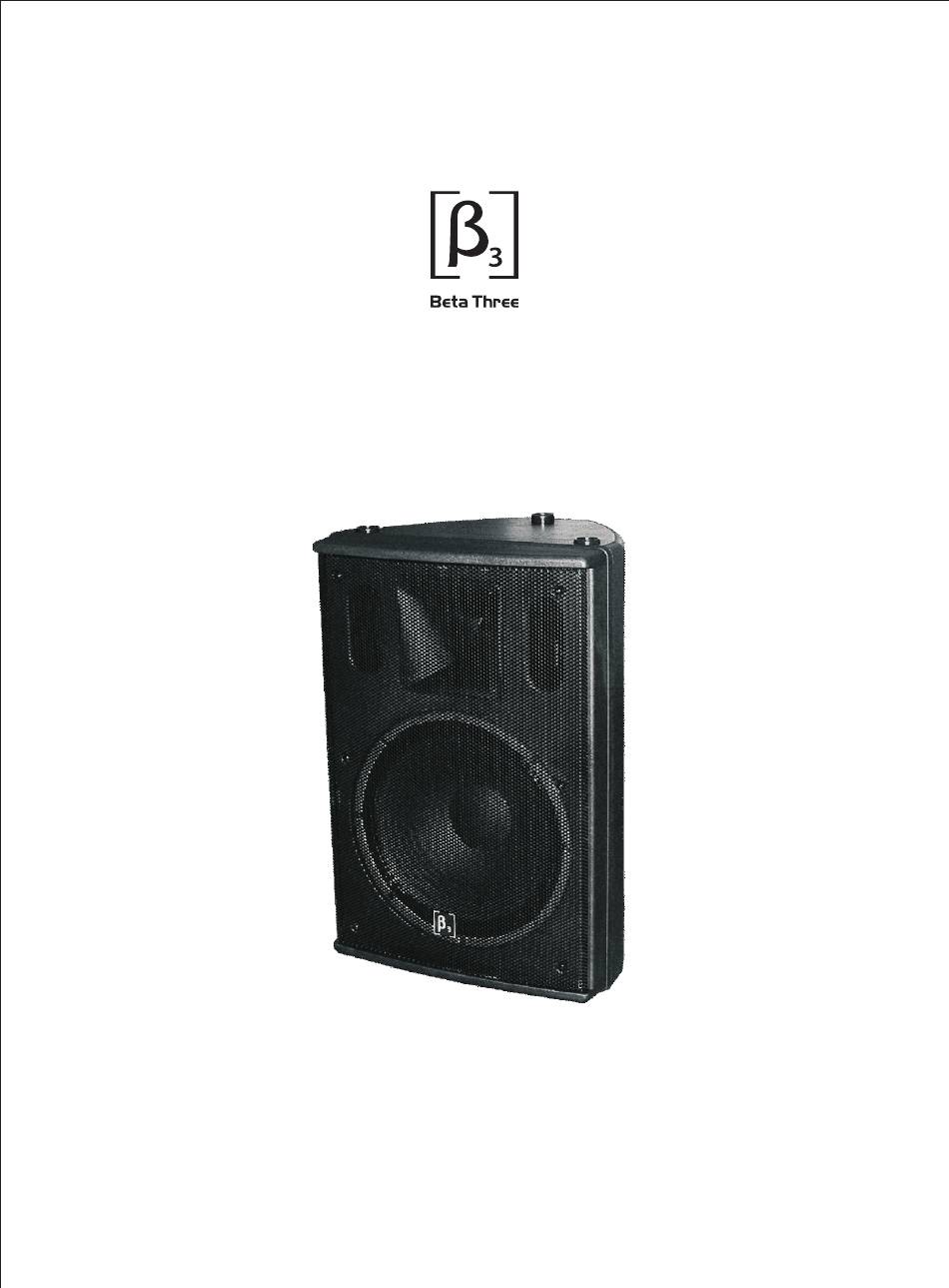

- Page 1 N15a USER'S MANUAL 3G-β3-MA-171101-001...
-
Page 2: Table Of Contents
CONTENTS Product features Specifications Acoustic charts Amplifier module Installation Dimensions Limited warranty... -
Page 3: Product Features
Two transducers two-way full range plastic speaker, adopting high efficiency transducers. With computer simulation design. □ N15a is high SPL, dynamic power full range active plastic speakers. □ 90°x 40°dispersion □ Used for full fields sound reinforcement, bar and dancing pool applications □... - Page 4 N15a FREQUENCY RESPONSE 1 0 0 D e g - 36 - 108 - 180 PHASE CURVE D e g D e g - 36 - 36 - 108 - 108 - 180 - 180...
- Page 5 N15a WATERFALL - 10 - 15 - 20 - 25 10.0 1 50 2 00 50 0 1 0K 2 0K 100.0 D e g dBSPL 90.0 80.0 70.0 - 36 60.0 - 108 50.0 - 180 Frequency Response 2nd Distortion...
- Page 6 N15a HORIZONTAL DIRECTIVITY The data of N15a horizontal directivity were collected by testing the speaker system in a big anechoic chamber. 0° 0° 0° 330° 30° 330° 30° 330° 30° 60° 60° 60° 300° 300° 300° 270° 90° 270° 90°...
- Page 7 N15a VERTICAL DIRECTIVITY The data of N15a vertical directivity were collected by testing the speaker system in a big anechoic chamber. 0° 0° 0° 30° 30° 30° 330° 330° 330° 300° 60° 300° 60° 300° 60° 270° 90° 270° 90°...
-
Page 8: Amplifier Module
N15a AMPLIFIER MODULE N15a POWER: 300W+100W ACTIVE 2 WAY FULL RANGE ELECTRONIC COMPENSATION SPEAKER VOLUME BASS TREBLE CLIP LINE INPUT OUTPUT LINE This series of products are authorized to be produced by Elder Audio Manufactory with Germany computer aided design software and testing system according to IEC standard. -
Page 9: Installation
N15a INSTALLATION DIMENSIONS 488mm Front view Planform 460mm Back view Side view... -
Page 10: Limited Warranty
To obtain warranty service, customer must deliver proof of purchase of the product in the form of a bill of sale or receipt invoice. N15a Speakers and Speaker Systems are guaranteed against malfunction due to defects in materials or workmanship for a period of three (3) years from the date of original purchase. The Limited Warranty does not apply to burned voice coils or malfunctions such as cone and/or coil damage resulting from improperly designed enclosures. - Page 11 N15a www.beta3pro.com.
