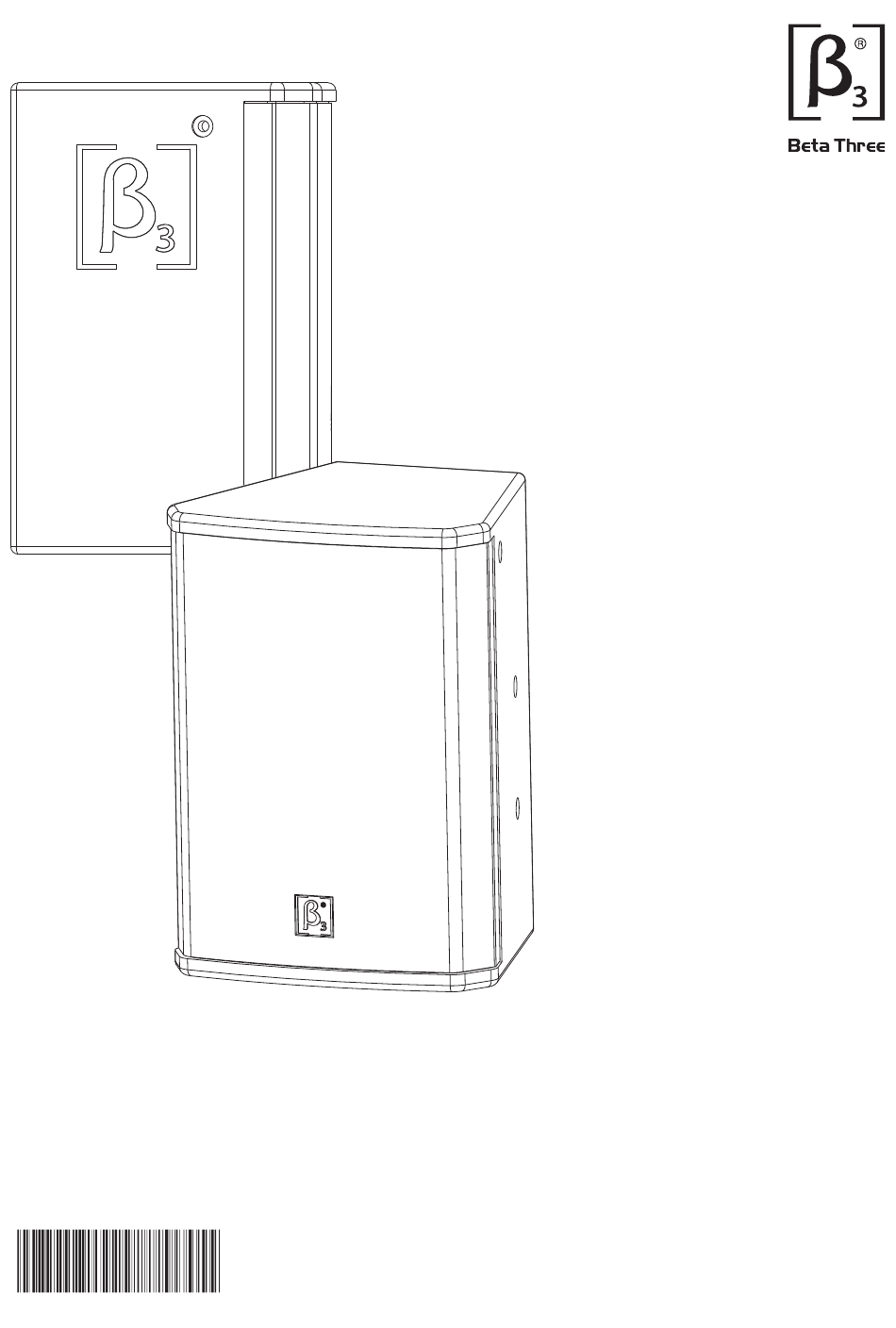

- Page 1 MU8a Two way full range active speaker MU series professional loudspeaker system User Manual U M- MU 8 a - 2 0 0 9 1 1 0 7 v e r B...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thanks for buying roducts. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using the hanging and rigging parts that are not appointed, please ensure the intensity of the structure comply with the local safety criterion.
-
Page 3: Table Of Contents
MU8a CONTENT MU series professional loudspeaker system CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Rear Panel INSTALLATION Installation Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve 2D Dimension Product information may be updated without notification, please visit www.elderaudio.com for... -
Page 4: Introduction
The sound is very clean, powerful and stretchy. Description Applications β3 MU8a is a very compact design active speaker integrated multifunctional hall the coaxial transducer.It consists of one 8" Neodymium woofer small hall with 34MM voice coil and one 1.4" compression driver . The rated power is 150W. -
Page 5: Amplifier Module
MU8a AMPLIFIER MODULE MU series professional loudspeaker system Introduction Of Amplifier Module CLIP VOLUME 120Hz LOW CUT INPUT OUTPUT MU8a ACTIVE COAXIAL SPEAKER No.: ELDER AUDIO MANUFACTURE Co.,Ltd. ~ 110V/220V 50Hz/60Hz ,T2.5AL HE MAX. CONSUMPTION POWER 180W 1. Overload indicator... -
Page 6: Installation
MU8a INSTALLATION MU series professional loudspeaker system Installation Accessories(Optional) Installation Reference Support flange and three special mounting points are very 1.Installation reference convenient for the different applications. 1. Speaker stand 2.Installation reference 3. Speaker stand application Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local standard during installation . -
Page 7: Technical Specification
MU8a TECHNICAL SPECIFICATION MU series professional loudspeaker system Specification Frequency response(-3dB): 80Hz-20Hz 113dB/119dB(PEAK) Max.SPL(1m): Dispersion: Horizontal 90 Vertical90 1X 8" Neodymium woofer, 8ohm, 140W Transducer: 1X1.4" compression driver(Neodymium coaxial design) Input: one channel balanced input(6.35/XLR) 6.35/XLR for input, XLR for output... -
Page 8: 2D Dimension
MU8a TECHNICAL SPECIFICATION MU series professional loudspeaker system 2D Dimension Top view 280mm [11.02in] Side view Front view Back view Bottom view... - Page 9 Notes:...
- Page 10 www.beta3pro.com...
