Installing Optional Mini-GBICs

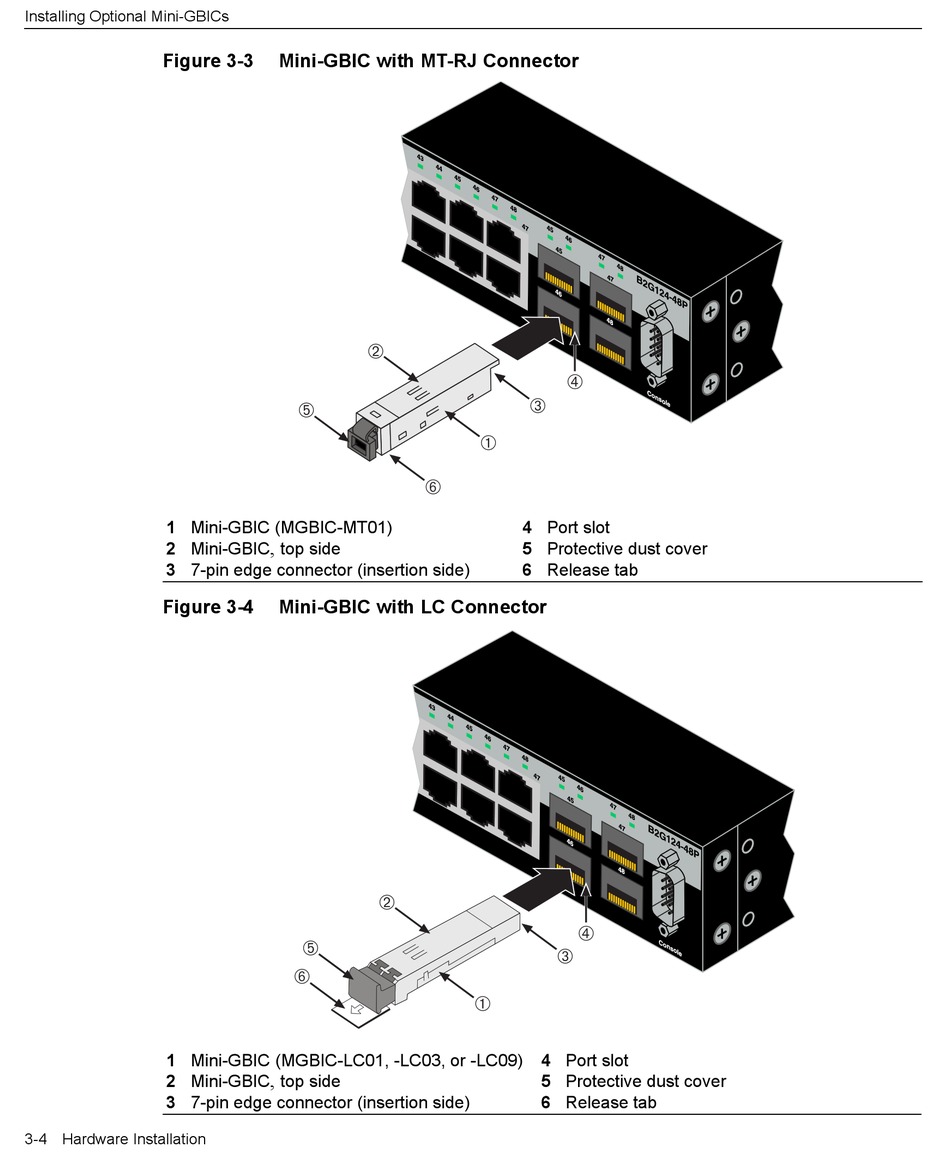

Figure 3-3
1 Mini-GBIC (MGBIC-MT01)
2 Mini-GBIC
3 7-pin edge connector (insertion side)
Figure 3-4
1 Mini-GBIC (MGBIC-LC01, -LC03, or -LC09) 4 Port slot
2 Mini-GBIC
3 7-pin edge connector (insertion side)
3-4 Hardware Installation

Mini-GBIC with MT-RJ Connector

Á
Ä
Å
,
top side

Mini-GBIC with LC Connector

Á
Ä
Å
,
top side
Ã
Â
À
4 Port slot
5 Protective dust cover
6 Release tab
Ã
Â
À
5 Protective dust cover
6 Release tab
