3
Installing the Switch

Desktop or Shelf Mounting

1. Attach the four adhesive feet to the bottom of the first switch.
2. Set the device on a flat surface near an AC power source, making sure there
are at least two inches of space on all sides for proper air flow.
3. If installing a single switch only, go to "Connecting to a Power Source" at the
end of this chapter.
4. If installing multiple switches, attach four adhesive feet to each one. Place each
device squarely on top of the one below, in any order.

Installing an Optional Module into the Switch

3-4

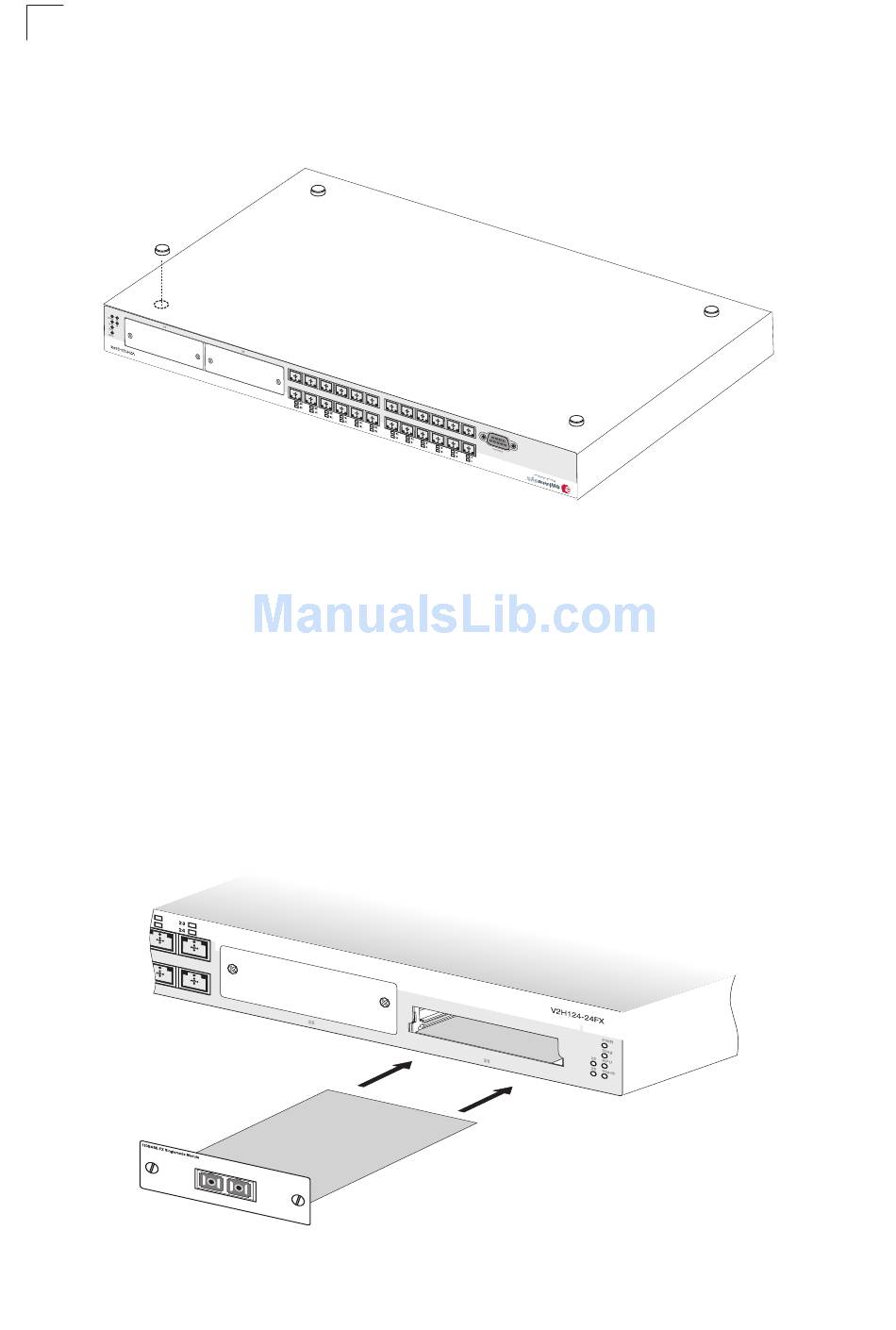

Figure 3-3. Attaching the Adhesive Feet

Figure 3-4. Installing an Optional Module
