Introduction

Optional Media Extender Modules

100BASE-FX Multimode Module

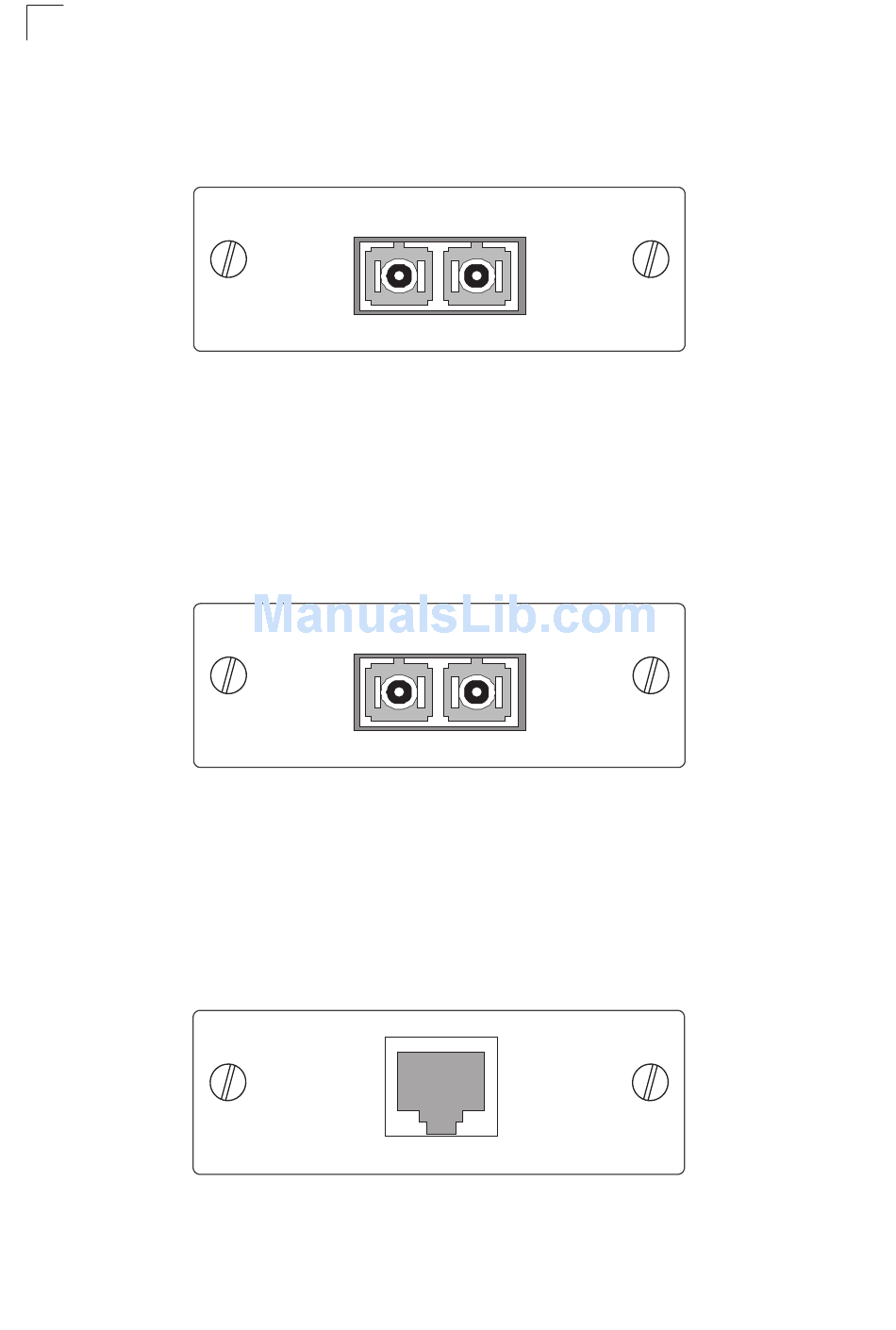

Figure 1-5. Single-Port 100BASE-FX Multimode Module

Using multimode fiber optic cable, the 100BASE-FX port can be connected to a
remote site up to 2 km (1.24 miles) away. The 100BASE-FX module is fixed to
operate at 100 Mbps full duplex, and supports auto-negotiation for flow control. The
module is fitted with an SC connector.
100BASE-FX Single-Mode Module

Figure 1-6. Single-Port 100BASE-FX Single-Mode Module

Using single-mode fiber optic cable, the 100BASE-FX port can be connected to a
remote site up to 20 km (12.4 miles) away. The 100BASE-FX module is fixed to
operate at 100 Mbps full duplex, and supports auto-negotiation for flow control. The
module is fitted with an SC connector.
1000BASE-T Module
1-6
100BASE-FX Multimode Module
100BASE-FX Singlemode Module
1000BASE-T RJ45 Module

Figure 1-7. Single-Port 1000BASE-T Module

V2H151-1M
V2H151-1S
V2G121-1
