• Grounding: Rack-mounted equipment should be properly grounded. Particular
attention should be given to supply connections other than direct connections to
the mains.
To rack-mount devices:
1. Attach the brackets to the device using the screws provided in the Bracket
Mounting Kit.
2 5
2. Mount the device in the rack, using four rack-mounting screws (not provided).
3. If installing a single switch only, turn to "Connecting to a Power Source" at the
end of this chapter.
4. If installing multiple switches, mount them in the rack, one below the other, in
any order.
2 6
L in k
/A c t
P W R
P o E
D ia g
2 5
V 2 H
2 6
S ta c
k in g
M o d
e
P o E
/L in k

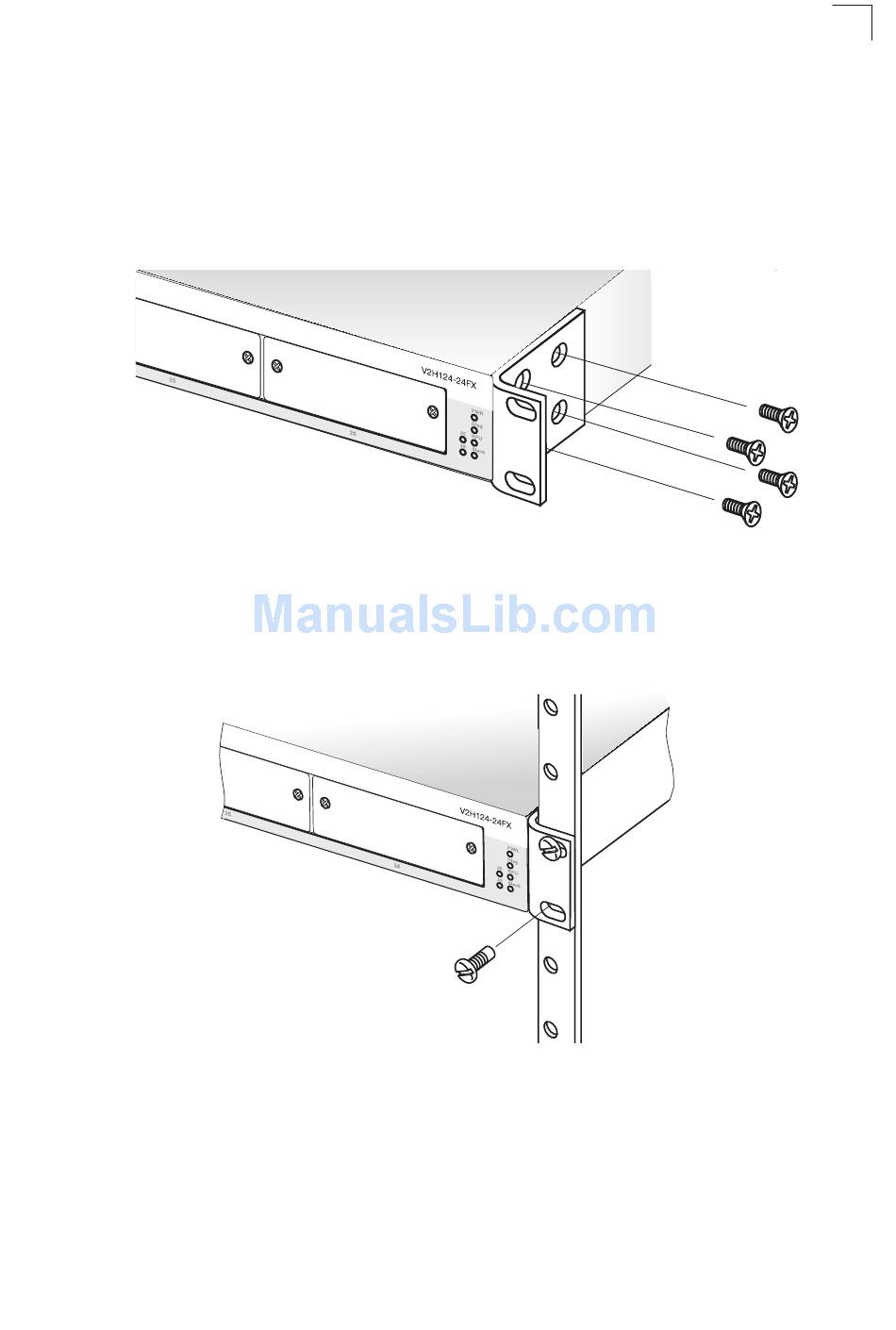

Figure 3-1. Attaching the Brackets

2 5
2 6
L in k
/A c t
P W R
P o E
D ia g
2 5
2 6
S ta c
k in g
M o d
e
P o E
/L in k

Figure 3-2. Installing the Switch in a Rack
