Installing the Switch

Connecting to the Console Port

The DB-9 serial port on the switch's front panel is used to connect to the switch for
out-of-band console configuration. The command-line-driven configuration program
can be accessed from a terminal or a PC running a terminal emulation program. The
pin assignments used to connect to the serial port are provided in the following table.

Wiring Map for Serial Cable

2 RXD (receive data)
3 TXD (transmit data)
5 SGND (signal ground) ------------------------------ 5 SGND (signal ground)
No other pins are used.
The serial port's configuration requirements are as follows:
• Default Baud rate—9,600 bps
• Character Size—8 Characters
• Parity—None
• Stop bit—One
• Data bits—8
3-8

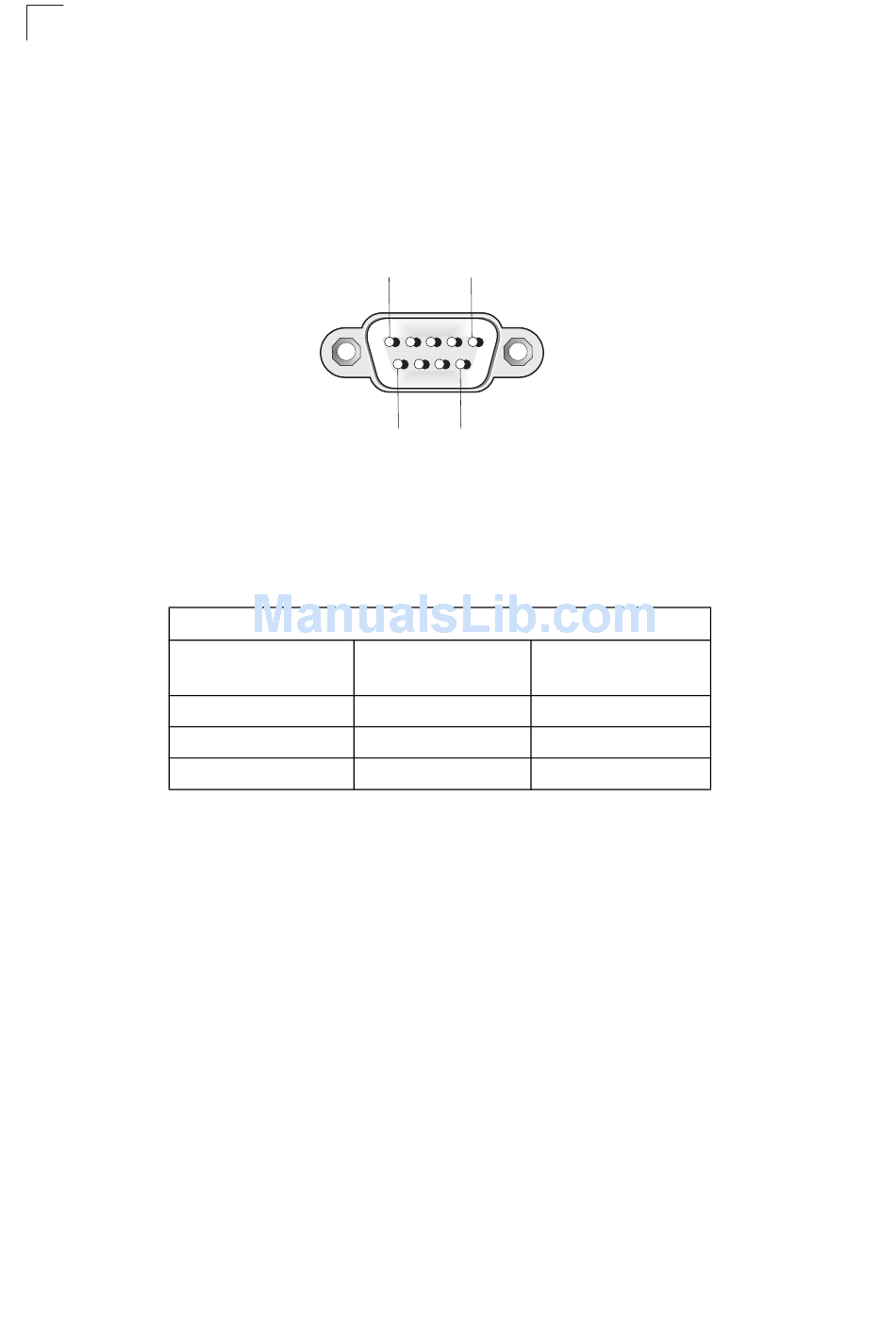

Figure 3-8. Serial Port (DB-9 DTE) Pin-Out

Table 3-1. Serial Cable Wiring

Switch's 9-Pin
Serial Port
<----------------------------
-----------------------------> 2 RXD (receive data)
1
5
6
9
Null Modem
3 TXD (transmit data)
PC's 9-Pin
DTE Port
