Installing The Control Panel Cage - Dell EMC PowerEdge T150 Installation And Service Manual

Next steps
1. Connect the control panel cable to the control panel.
2. Install the control panel
3. Follow the procedure listed in

Installing the control panel cage

Prerequisites
1. Follow the safety guidelines listed in the
2. Follow the procedure listed in
Steps
1. Align and insert the control panel cage into the control panel cage slot in the system.
2. Secure the control panel cage to the system with screws.
3. Route the control panel cable and control panel USB cable through the system clip.
4. Connect the control panel cable and control panel USB cable to the system board.

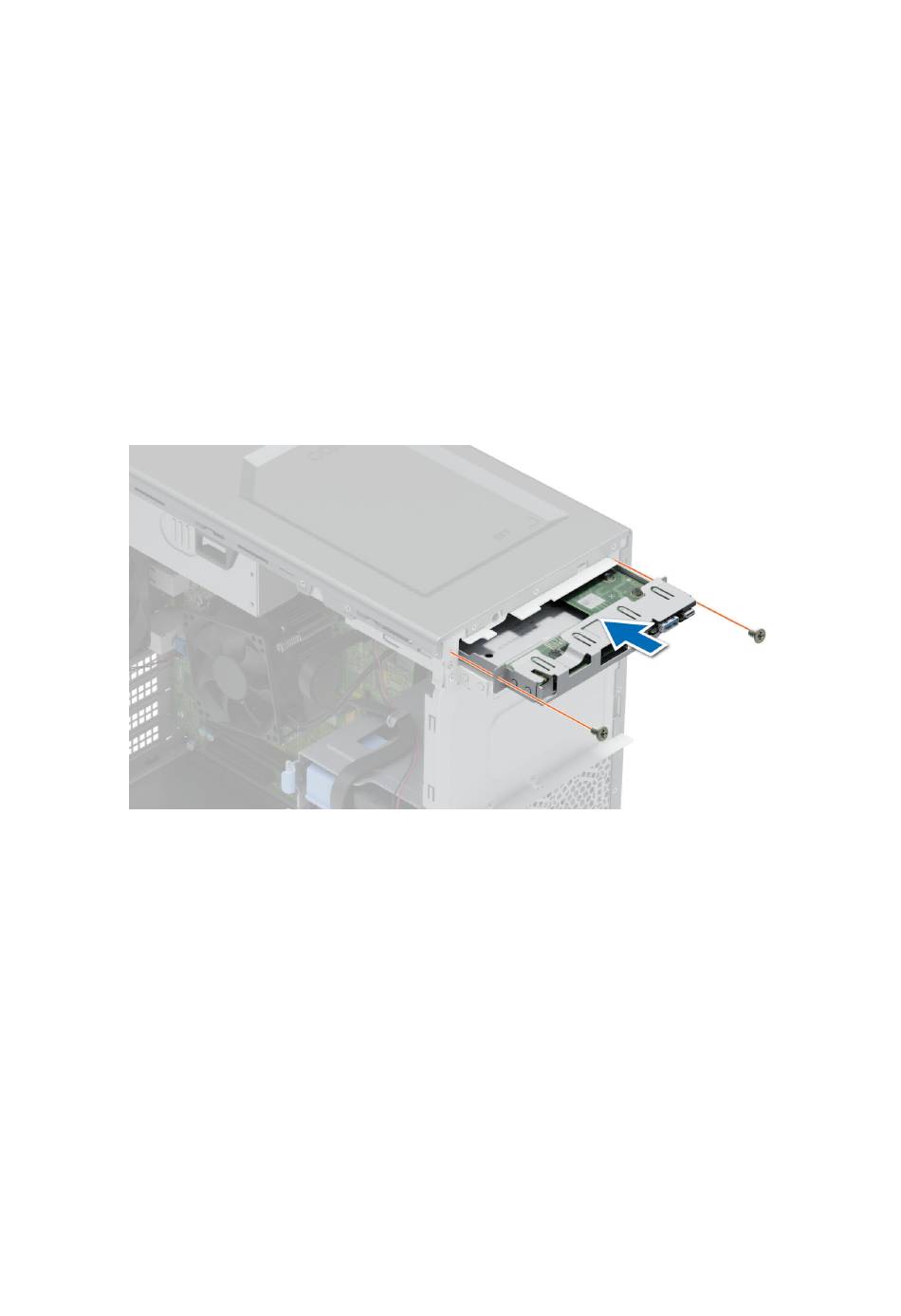

Figure 62. Installing the control panel cage
Next steps
1. Install the front bezel.
2. Reconnect the disconnected peripherals from the control panel assembly.
3. Follow the procedure listed in
cage.
After working inside your
Safety instructions.
Before working inside your
After working inside your
system.
system.
system.
Installing and removing system components 71
