NOTE:

Ensure that the processor and the bracket are placed in the tray after you remove the heat sink.

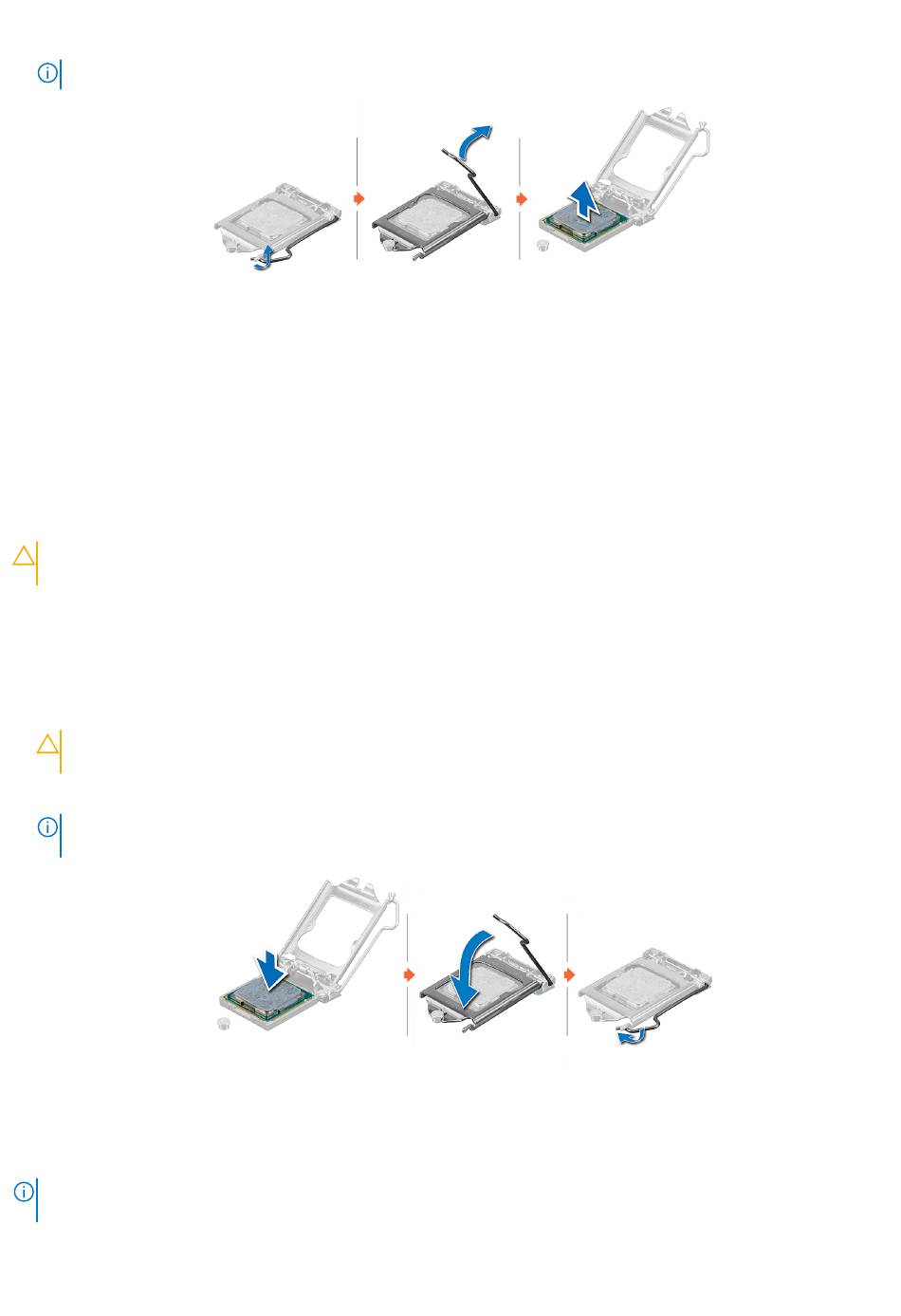

Figure 44. Removing the processor

Next steps

Replace the

processor.

Installing the processor

Prerequisites

CAUTION:

Never remove the heat sink from a processor unless you intend to replace the processor. The heat

sink is necessary to maintain proper thermal conditions.

1. Follow the safety guidelines listed in the

2. Follow the procedure listed in

Remove the

processor.

Steps

1. Align the pin 1 indicator of the processor with the triangle on the socket and place the processor on the socket.

CAUTION:

Positioning the processor incorrectly can permanently damage the system board or the processor.

Be careful not to bend the pins in the socket.

2. Lower the socket lever and push it under the tab to lock it.

NOTE:

If the processor has previously been used in a system, remove any remaining thermal grease from the processor

by using a lint-free cloth.

Figure 45. Installing the processor

Next steps

NOTE:

Ensure that you install the heat sink after you install the processor. The heat sink is necessary to maintain proper

thermal conditions.

Installing and removing system components

Safety

instructions.

Before working inside your

system.
