Termination details

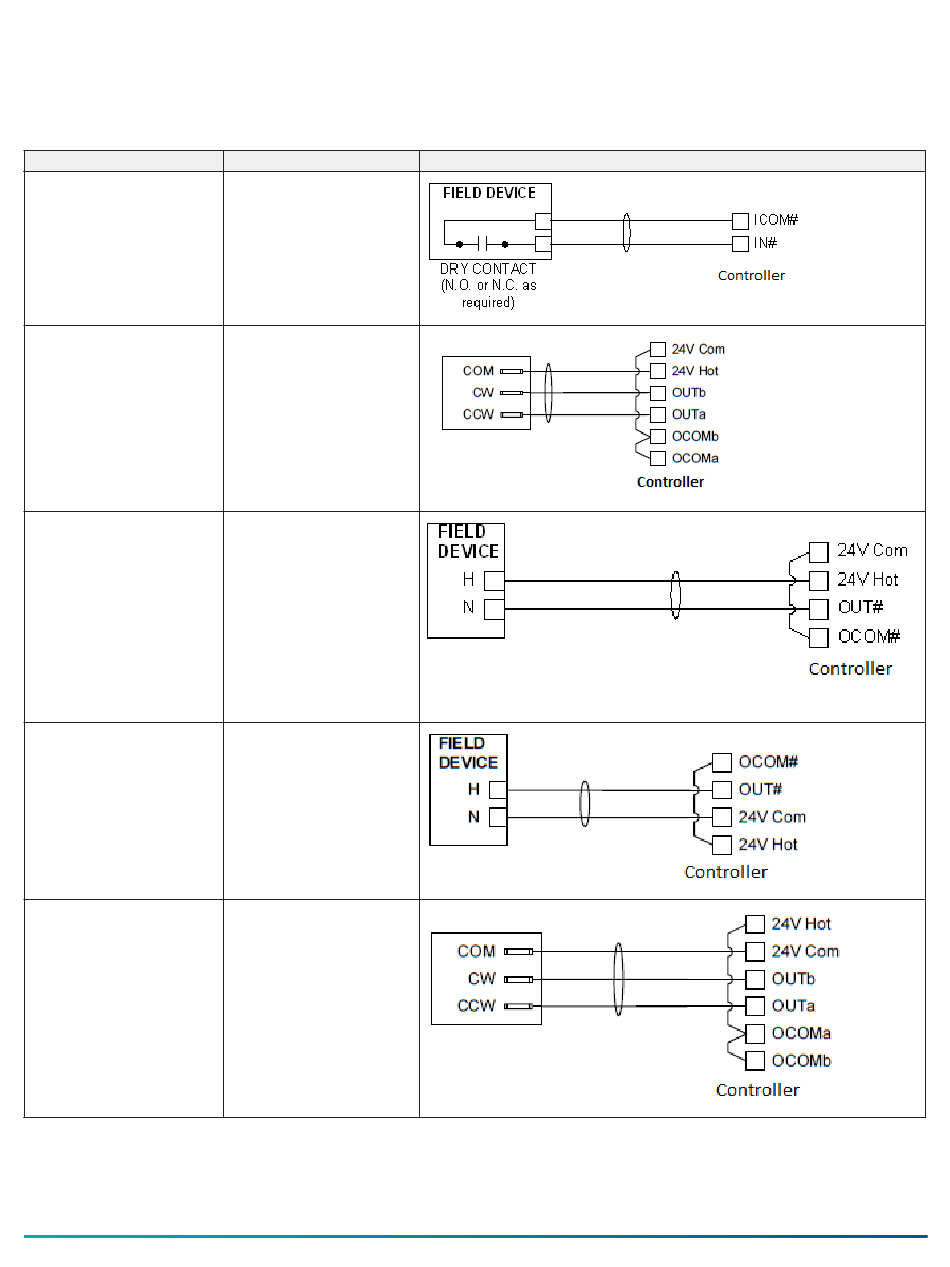

A set of Johnson Controls termination diagrams
provides details for wiring inputs and outputs.
Table 5: Termination details
Type of device
Dry Contact (Binary Input) BI
Incremental Control to
Actuator (Switch Low,
Externally Sourced)
24 VAC Binary Output
(Switch Low, Externally
Sourced)
24 VAC Binary Output
(Switch High, Externally
Sourced)
Incremental Control to
Actuator (Switch High,
Externally Sourced)
10 IOM3733 Input/Output Module Installation Guide
Type of Input/Output
BO
BO
BO
BO
See the figures in this section for the applicable
termination diagrams.
Termination diagrams
