2 Enterprise Management Engine Quick Start Guide

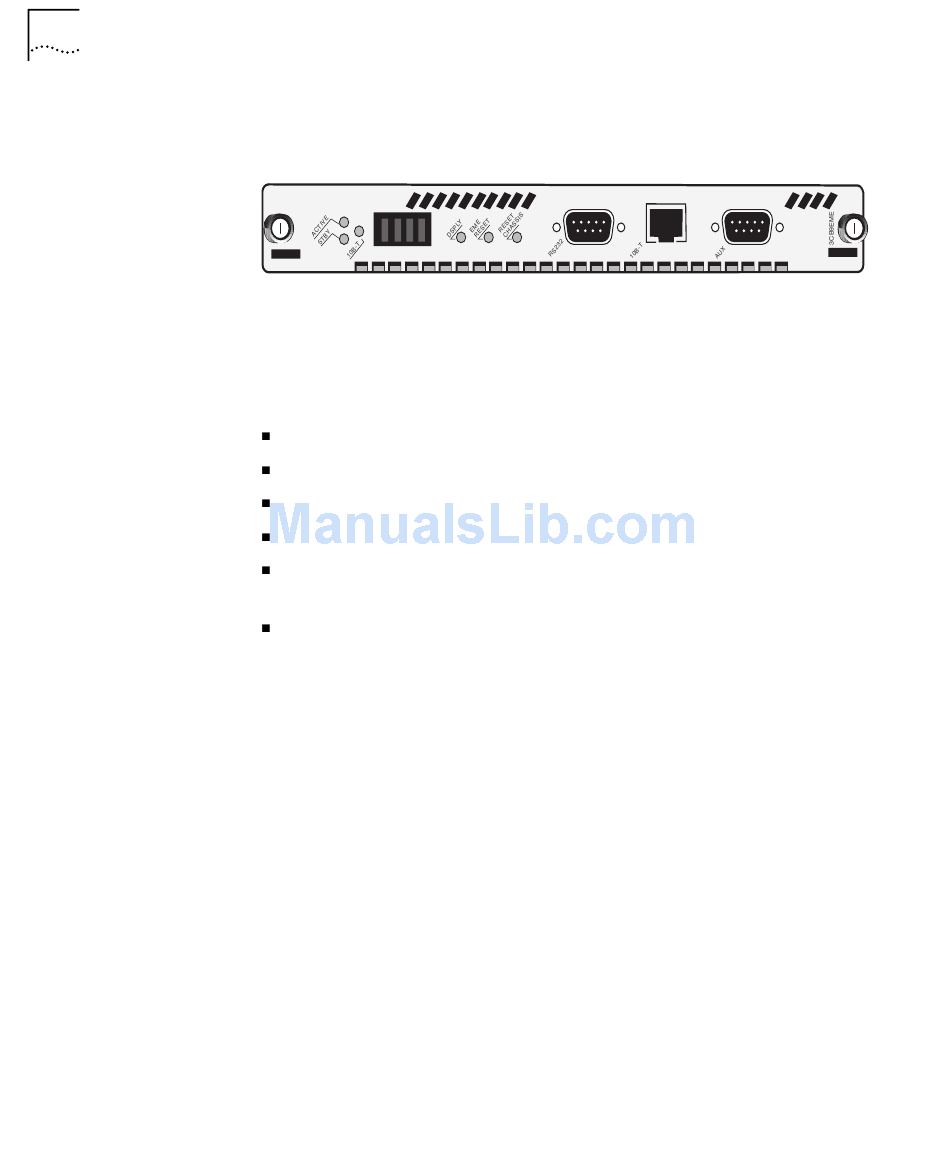

Figure 1 shows the EME front panel.
Figure 1 The EME Front Panel
In the 7-slot chassis, you install the module horizontally as shown in
Figure 1. In the 8-slot chassis and 16-slot chassis, you install the module
vertically, with the LEDs at the top.
The EME module front panel is configured with the following:
Status LEDs
A four-character LED display with a display (DSPLY) button
One module reset (EME Reset) button
One chassis reset (Reset Chassis) button
Two RS-232 (serial) port connectors, which are used to connect the
EME to a console terminal or a modem
One RJ-45 10BASE-T Ethernet port
