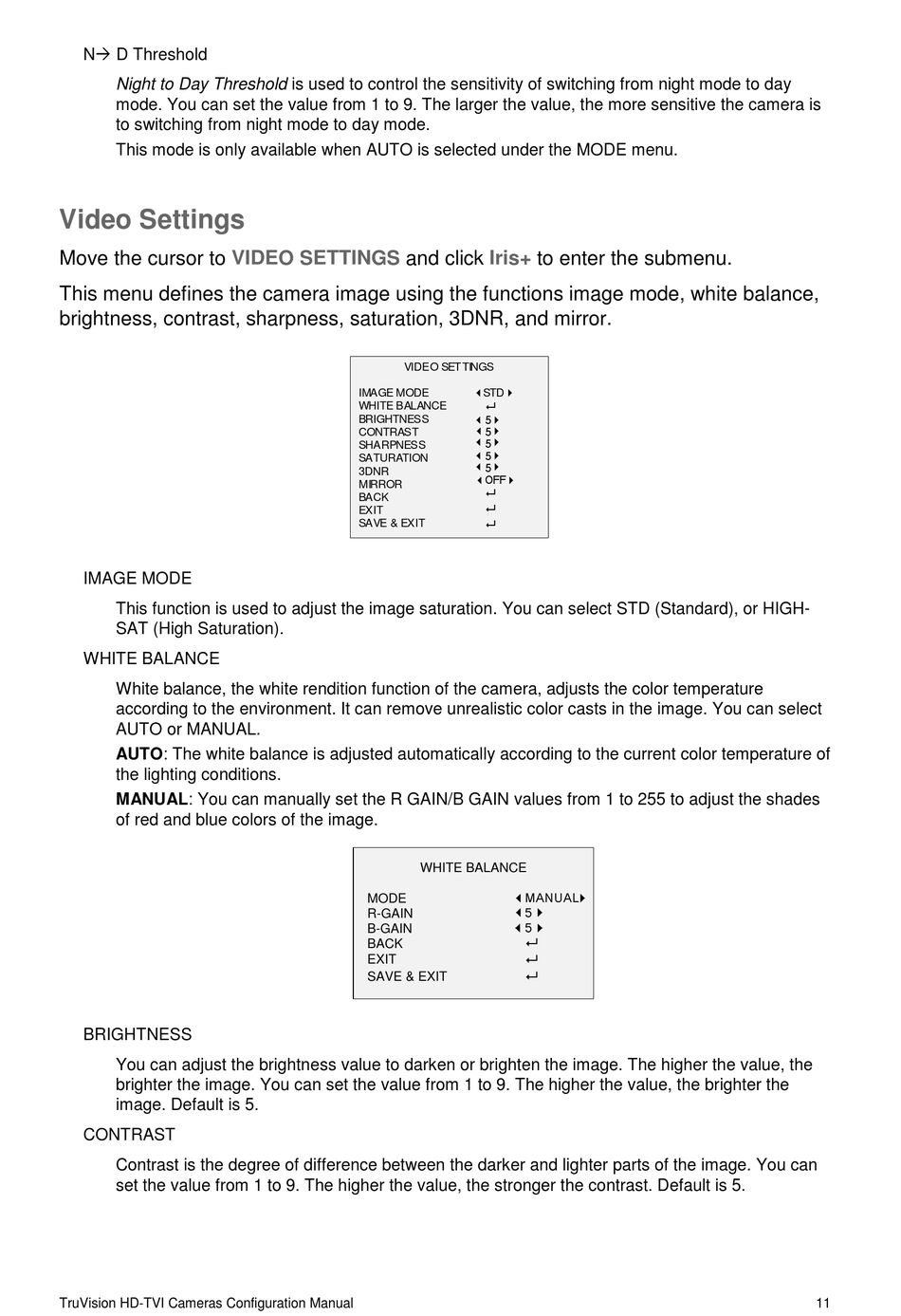

Video Settings - Interlogix TVB-6101 Manual

Nà D Threshold
Night to Day Threshold is used to control the sensitivity of switching from night mode to day
mode. You can set the value from 1 to 9. The larger the value, the more sensitive the camera is
to switching from night mode to day mode.
This mode is only available when AUTO is selected under the MODE menu.

Video Settings

Move the cursor to
This menu defines the camera image using the functions image mode, white balance,
brightness, contrast, sharpness, saturation, 3DNR, and mirror.
IMAGE MODE
This function is used to adjust the image saturation. You can select STD (Standard), or HIGH-
SAT (High Saturation).
WHITE BALANCE
White balance, the white rendition function of the camera, adjusts the color temperature
according to the environment. It can remove unrealistic color casts in the image. You can select
AUTO or MANUAL.
AUTO: The white balance is adjusted automatically according to the current color temperature of
the lighting conditions.
MANUAL: You can manually set the R GAIN/B GAIN values from 1 to 255 to adjust the shades
of red and blue colors of the image.
BRIGHTNESS
You can adjust the brightness value to darken or brighten the image. The higher the value, the
brighter the image. You can set the value from 1 to 9. The higher the value, the brighter the
image. Default is 5.
CONTRAST
Contrast is the degree of difference between the darker and lighter parts of the image. You can
set the value from 1 to 9. The higher the value, the stronger the contrast. Default is 5.
TruVision HD-TVI Cameras Configuration Manual
VIDEO SETTINGS
IMAGE MODE
WHITE BALANCE
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
3DNR
MIRROR
BACK
EXIT
SAVE & EXIT
MODE
R-GAIN
B-GAIN
BACK
EXIT
SAVE & EXIT
and click Iris+ to enter the submenu.
VIDEO SET TINGS
STD

5
5
5
5
5
OFF



WHITE BALANCE
MANUAL
5
5



