Troubleshooting

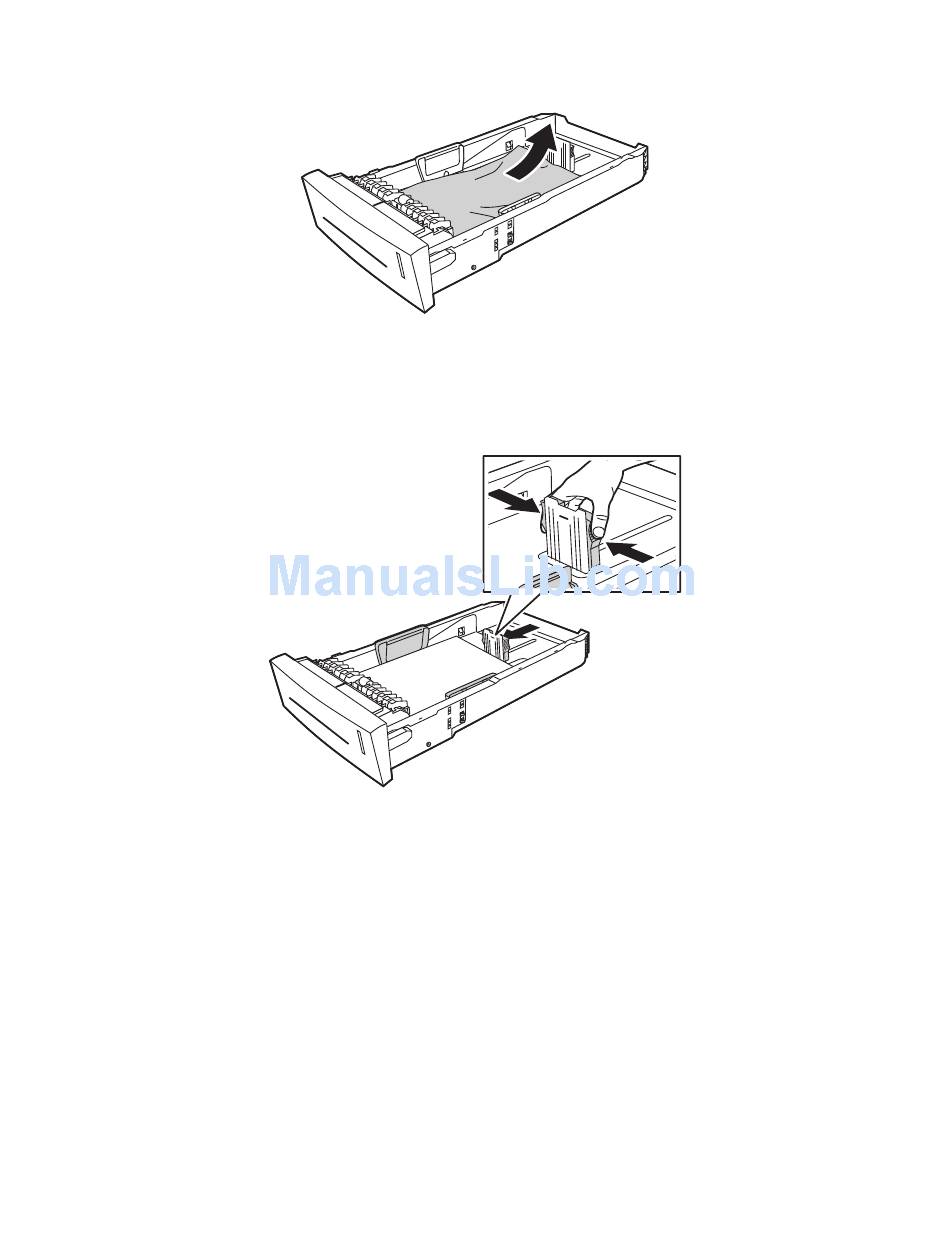

2. Remove the top sheet from the tray.
3. Verify that the paper is loaded correctly in the tray. Adjust the length and width paper guides:
a. Length guide: Press the sides, then slide the guide until the arrow on the guide points to the
appropriate paper size imprinted on the bottom of the tray. When properly positioned, the
guide clicks into place.
154 ColorQube 8570/8870 Color Printer
User Guide
8X70-022
8X70-107
