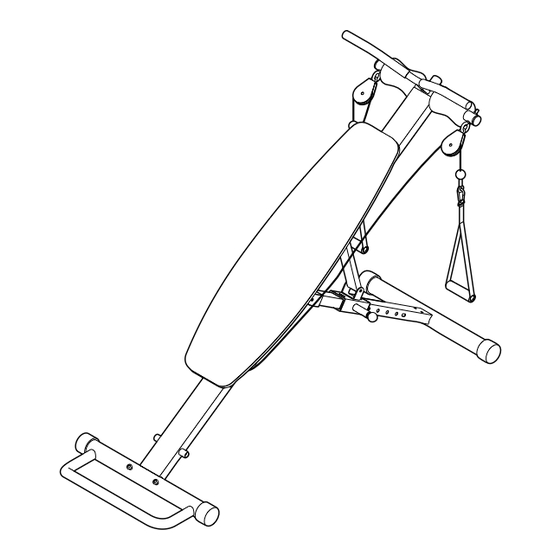

Model No. WEBE14010
Serial No.
Write the serial number in the space
above for future reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are
committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee you complete sat-
isfaction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Patent Pending
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
Visit our website at
Advertisement
Table of Contents
Related Manuals for Weider WEBE14010
Summary of Contents for Weider WEBE14010
- Page 1 Model No. WEBE14010 Serial No. Write the serial number in the space above for future reference. Serial Number Decal QUESTIONS? As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, we...
-
Page 2: Table Of Contents
LIMITED WARRANTY ............Back Cover WEIDER is a registered trademark of ICON Health & Fitness, Inc. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precau- tions before using the weight training system. 1. Read all instructions in this manual before using the weight training system. 2. It is the responsibility of the owner to ensure that all users of the weight training system are adequately informed of all precautions. -
Page 4: Before You Begin
The model number is WEBE14010. The serial number can be found on a decal attached to the weight training sys- tem (see the front cover of this manual). -
Page 5: Part Identification Chart
PART IDENTIFICATION CHART Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each drawing is the key number of the part from the Part List on page 10. Note: Some small parts may have been pre-attached for shipping purposes. -
Page 6: Assembly
ASSEMBLY Make Things Easier for Yourself! Everything in this manual is designed to ensure that the weight training system can be assem- bled successfully by anyone. However, it is important to realize that the versatile weight training system has many parts and that the assembly process will take time. - Page 7 3. Note: The following steps require two people. Attach the Adjustment Leg (8) to the Rail (3) with an M10 x 90mm Bolt (44) and an M10 Nylon Locknut (32). Attach the Support Leg (6) to the Rail (3) with an M10 x 75mm Bolt (43) and an M10 Nylon Locknut (32).
- Page 8 6. Remove the Large Pulley (15) from a Pulley Housing (16). Wrap one end of the Cord (30) around the Large Pulley (15). Reattach the Large Pulley inside the Pulley Housing (16) with an M10 x 28mm Bolt (45) and an M10 Nylon Locknut (32). Note: Do not over tighten the Bolts;...
-
Page 9: Adjusting The Weight Training System
ADJUSTING THE WEIGHT TRAINING SYSTEM The weight training system is designed to use your own body weight as resistance. The steps below explain how the weight training system can be adjusted and folded for storage. Refer to the accompanying exercise poster to see the correct form for each exercise. -
Page 10: Part List
PART LIST—Model No. WEBE14010 Key No. Qty. Description Seat Seat Bracket Rail Stabilizer Upper Bar Support Leg Adjustment Foot Adjustment Leg Adjustment Bracket Adjustment Bushing 60mm Round Outer Cap M8 Nylon Locknut Foam Pad 25mm x 50mm Inner Cap Large Pulley... -
Page 11: Exploded Drawing
EXPLODED DRAWING—Model No. WEBE14010 22 23 22 23 37 14 R0401A... -
Page 12: Ordering Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre- pared to give the following information when calling: 1. The MODEL NUMBER of the product (WEBE14010) 2. The NAME of the product (WEIDER 3.
