Nameplate Description (PVE-EX db version)

© Danfoss | October 2017

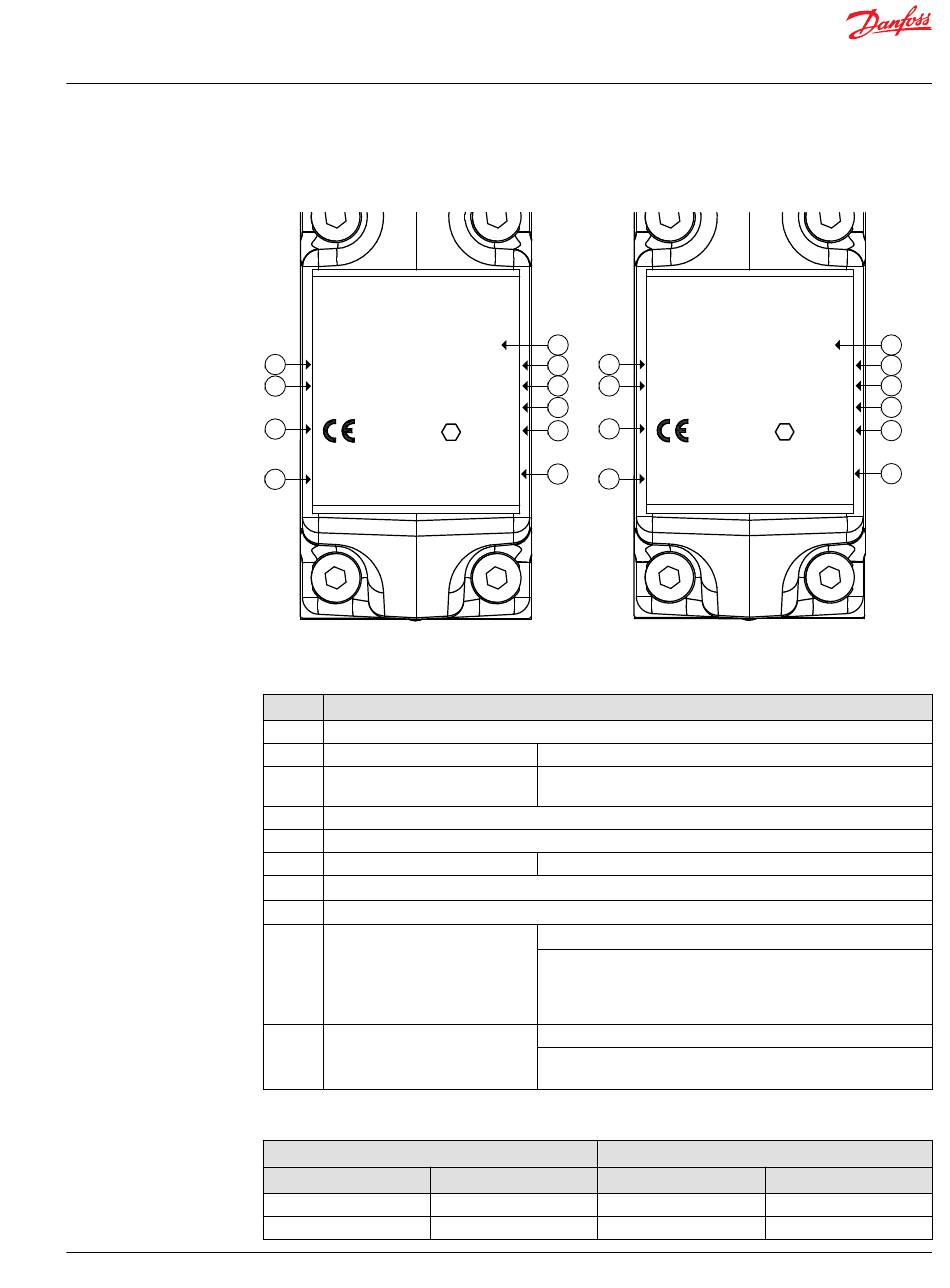

PVE-EX Ex db version, Group I (left) and Group II (right)
Danfoss
6430 Nordborg, Denmark
Type PVEx-yy-EX
2
111xxxxx wwyyd47xxxx
5
Ta -40° to + 60°C xx-yyVDC
Ex db I Mb
6 0470
Presafe 14ATEX5153X
9
IECEx PRE14.0008X
MA: J201408x
Nameplate legend
Number Description
1 PVE-EX type, see the table below.
2 Part Number
3
Production date and serial number
4 Supply voltage
5 Ambient temperature range
6 Notified body
7
IECEx Equipment Group and protection category X-marking
8
ATEX Equipment Group and protection category X-marking
9 Ex Certificate Number
10 Thread
PVE-EX Ex db types with part numbers, Group I and Group II
Group I
Type Part No.
PVEO-EX-12V 11156462
PVEO-EX-24V 11123165
1
2
3
4 5
7
6
I M 2
8
Ԑx
Thread:
10
9
"M20"
Example: 111xxxxx
Example: 42 12 C xxxxxx
Week: 42 Year: 2012 Day: C=Wednesday (A=Monday) serial Number
Example: NEMKO/Presafe
Specific conditions for safe use ("X"-mark)
Originally supplied "SD cable glands" may not provide sufficient
clamping. User shall provide additional clamping of the cable to
ensure that pulling and twisting is not transmitted to the
terminations.
Threaded entry: M20 x 1.5
Determined temperature at entry point is +76º C, use appropriate
cables and cable gland
Type
PVEO-EX-24V
PVEH-EX
Danfoss
6430 Nordborg, Denmark
Type PVEx-yy-ZZ
111xxxxx wwyyd47xxxx
Ta -40° to + 60°C xx-yyVDC
Ex db IIB T5 Gb
0470 II 2G
Ԑx
Presafe 14ATEX5153X Thread:
IECEx PRE14.0008X "M20"
MA: J201408x
Group II
Part No.
11156467
11156463
