Internal and external earth-connection

Earthing terminals

Internal earth-connection

© Danfoss | October 2017
4-pin earthing terminal
1
2

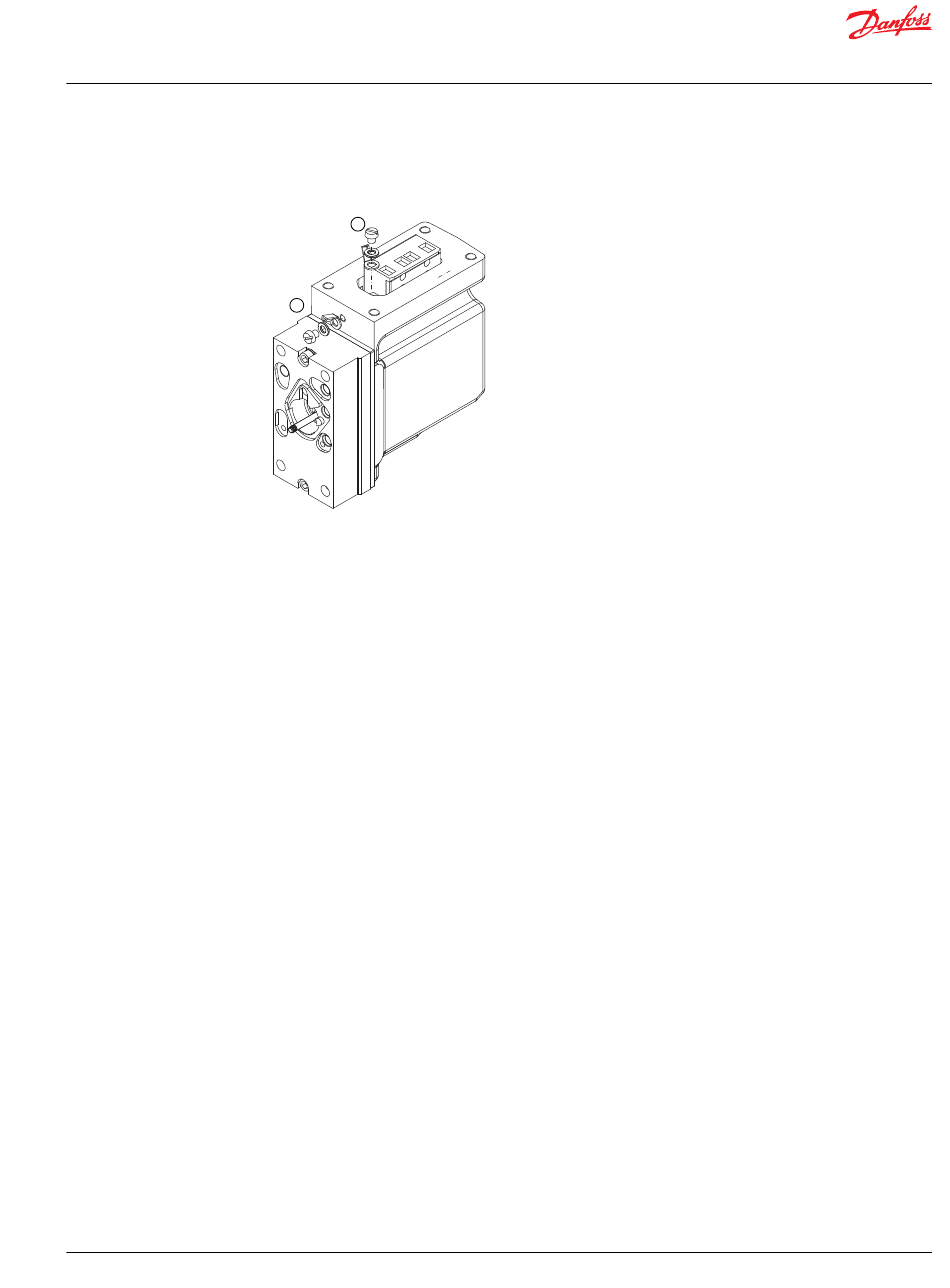

1. Internal earthing terminals
2. External earthing terminals
Internal earthing terminal enables a shield to be connected to chassis.
1. Remove the jacket from the shield at a length that allows mounting the cable shoe into the threaded
hole next to the connector.
2. Crimp or solder the shield into the cable shoe.
3. Attach the cable shoe to the chassis via the M4 screw and the self-locking ring.
4. Tighten the screws to the specified torque 5 ± 2 N•m.
