Fuse Panel Located In The Engine Compartment - Subaru Forester 2012 Owner's Manual

12-16
Specifications

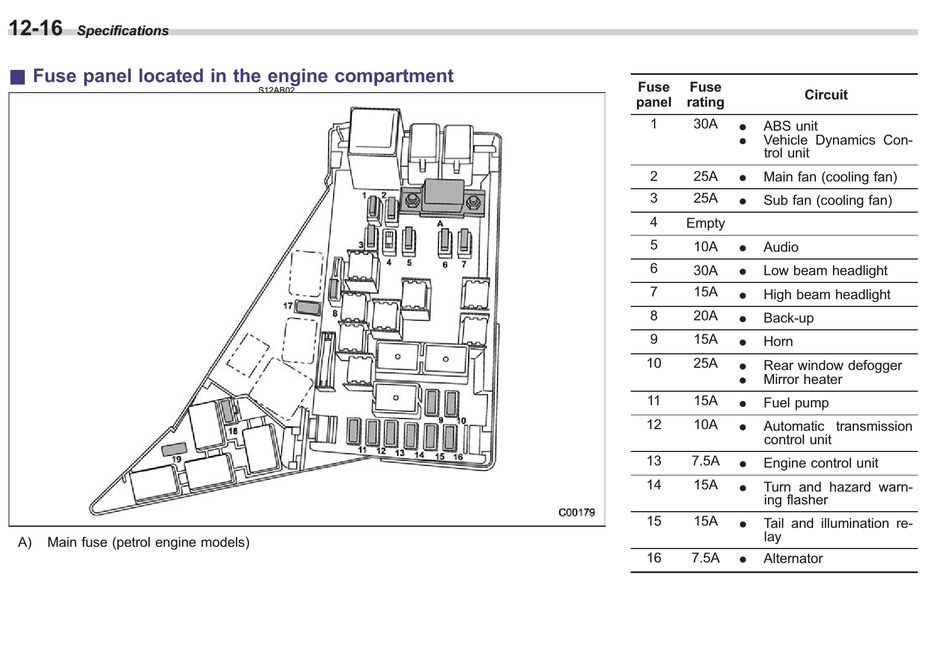

& Fuse panel located in the engine compartment
A) Main fuse (petrol engine models)
S12AB02
Fuse Fuse
Circuit
panel rating
.
1 30A
ABS unit
.
Vehicle Dynamics Con-
trol unit
.
2 25A Main fan (cooling fan)
.
3 25A
Sub fan (cooling fan)
4
Empty
.
5
10A Audio
.
6
30A Low beam headlight
.
7 15A
High beam headlight
.
8 20A
Back-up
.
9 15A
Horn
.
10 25A
Rear window defogger
.
Mirror heater
.
11 15A
Fuel pump
.
12 10A
Automatic transmission
control unit
.
13 7.5A
Engine control unit
.
14 15A
Turn and hazard warn-
ing flasher
.
15 15A
Tail and illumination re-
lay
.
16 7.5A Alternator
