ADJUSTING ICE CUBE SIZE

On models equipped with an ice maker, the cube size may be adjusted
by changing the amount of water injected into the ice maker assembly.

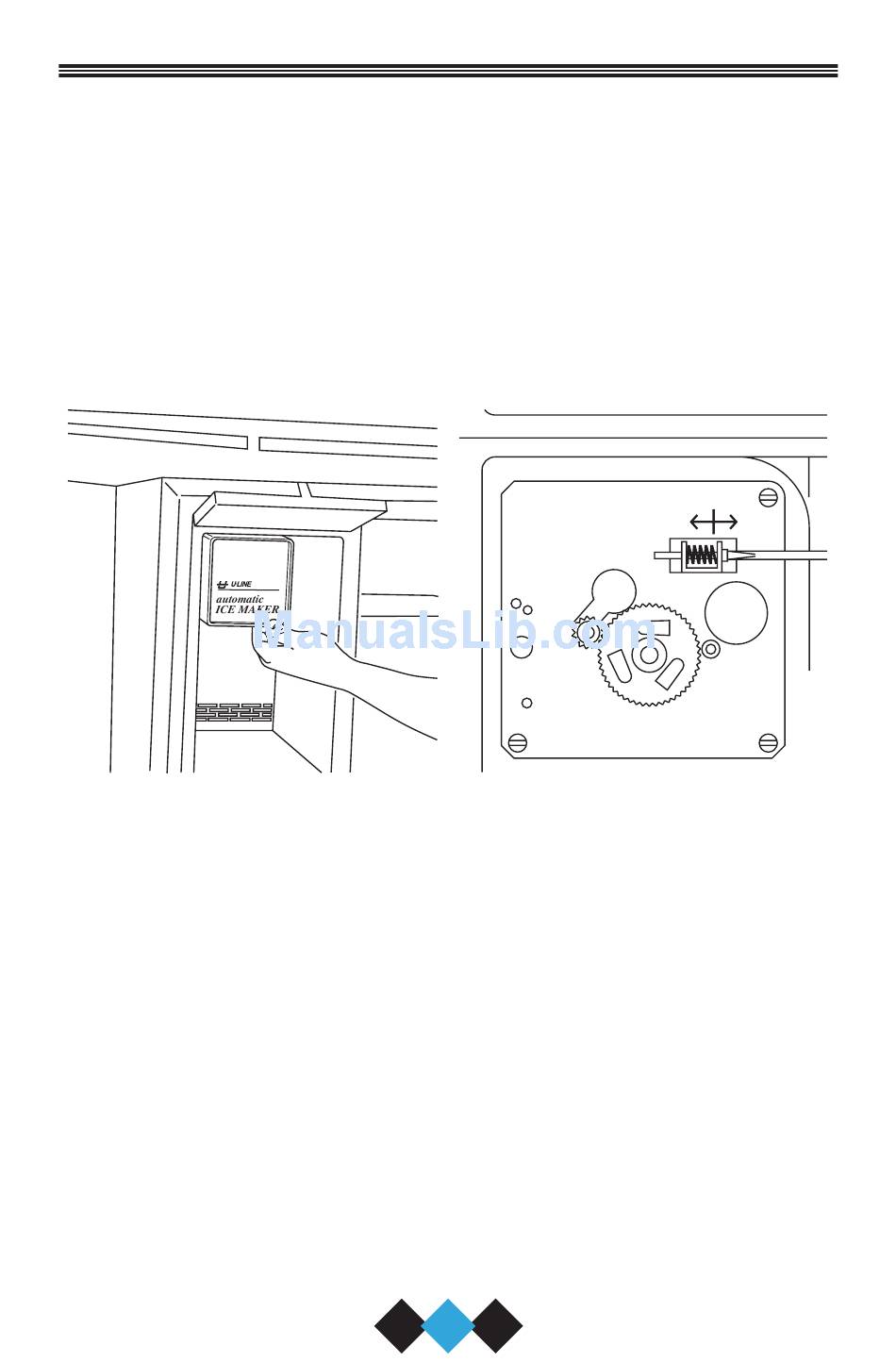

1. Remove the ice maker assembly cover (Figure 39).
2. Locate the adjusting screw on the ice maker assembly control box.
The adjusting screw is just below the minus (–) and plus (+) signs
on the control box (see Figure 40).
Figure 39
3. Turn the adjusting screw toward the minus (–) sign (clockwise) for
smaller cubes or toward the plus (+) sign (counterclockwise) for
larger cubes.
4. Install the ice maker assembly cover.
Some units are not frost free and must be defrosted periodically.
Refer to CLEANING AND MAINTENANCE.
Be sure to make water and temperature adjustments in
small increments. Too big of an adjustment could cause the
unit to malfunction.
UL133
NOTE
40
– +
Figure 40
UL122
