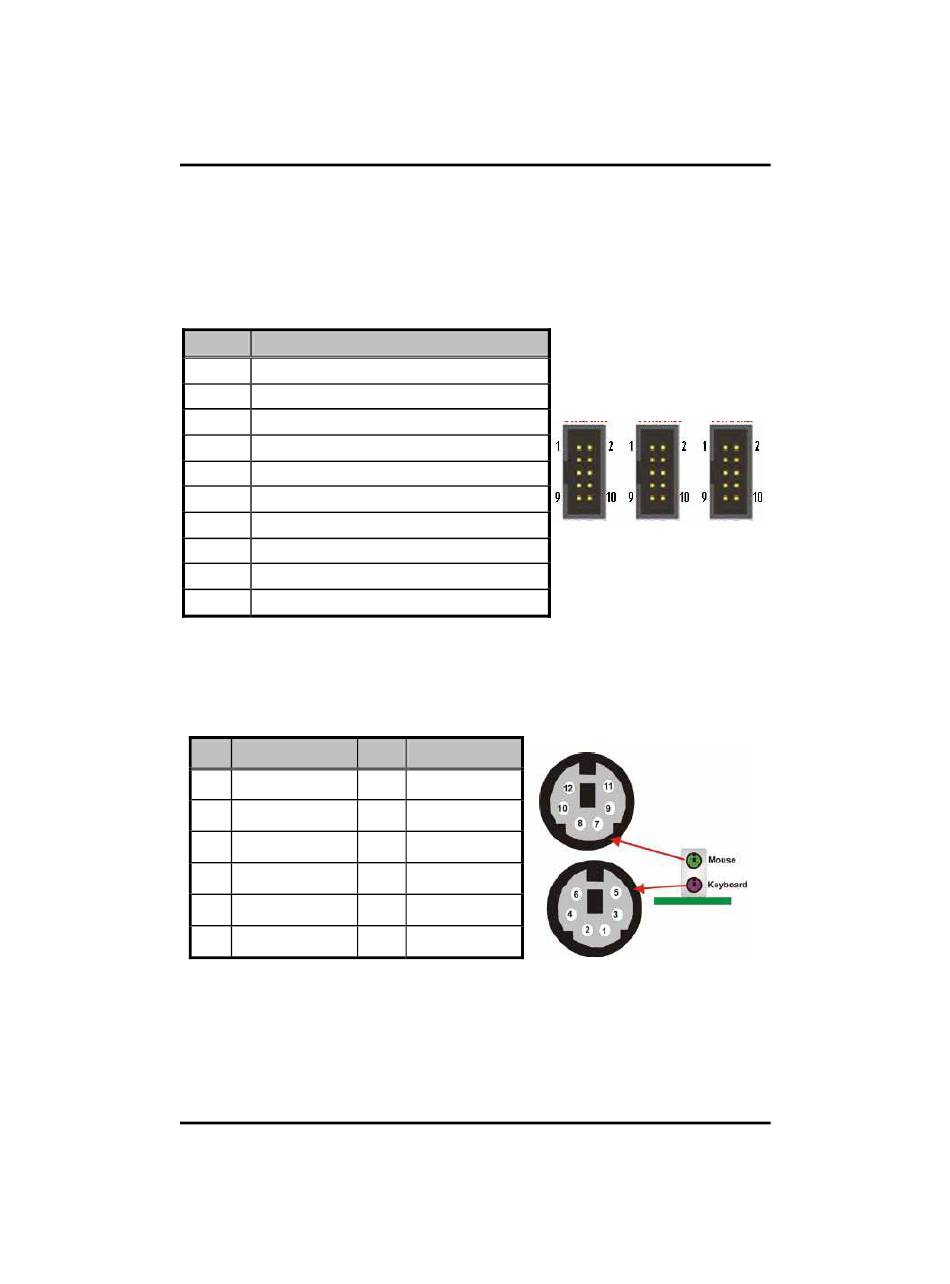

2.4.3 Serial Port Interface Connectors (CN11, CN20,
CN28) (RS232)
The serial interface for the board consists of COM2 port (CN11), COM3
(CN20) and COM4 (CN28) supports RS-232.
Connector: COM2 (CN11), COM3 (CN20), COM4 (CN28)
Pin
1 Data Carrier Detect (DCD)
2 Data Set Ready (DSR)
3 Receive Date (RXD)
4 Request to Send (RTS)
5 Transmit Data (TXD)
6 Clear to Send (CTS)
7 Data Terminal Ready (DTR)
8 Ring Indicator (RI)
9 GND
10 NC

2.4.4 PS/2 Keyboard and Mouse Connectors (CN4)

CN4 is a DIN connector for PS/2 Mouse and PS/2 keyboard connection.
Pin Signal
1 Keyboard Data
2 GND
3 GND
4 VCC
5 GND
6 Mouse Clock
Jumpers and Connectors
IMB202 LGA775 ATX Board User's Manual
Signal
Pin Signal
7 GND
8 Mouse Data
9 GND
10 VCC
11 GND
12 Mouse Clock
13
