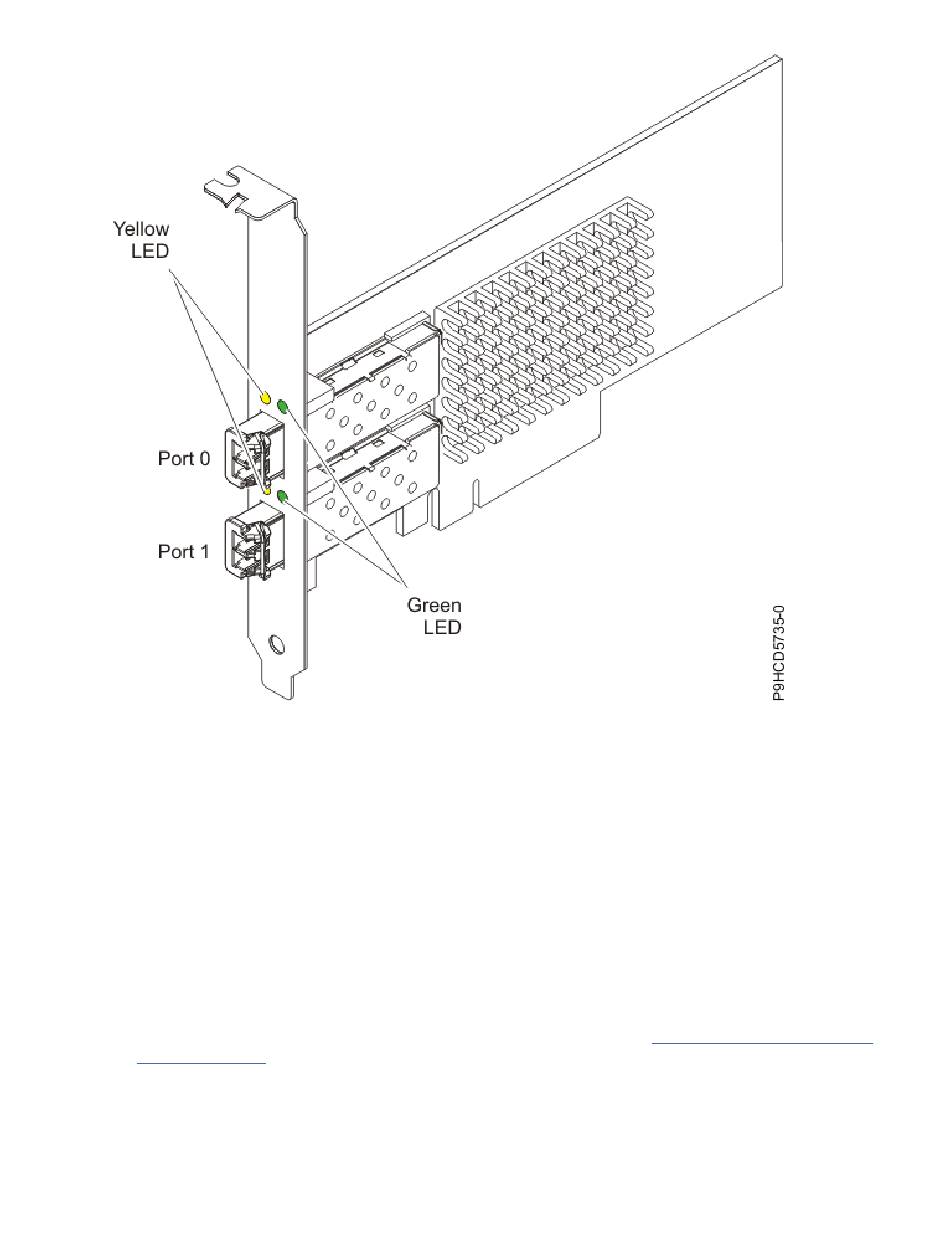

Figure 48. PCIe3 16 Gb 2-port Fibre Channel adapter (FC EL5B and EN0A)
Specifications
Item
Description
Adapter FRU number
00E3496
Wrap plug FRU number
12R9314
Note: The wrap plug is included with the card, and can also be purchased from IBM.
I/O bus architecture
PCIe base and CEM 3.0, x8 PCIe bus interface
Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules
and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/
p9eab_mtm_pciplacement.htm) and select the system you are working on.
Voltage
3.3 V, 12 V
Form factor
Short, MD2
68 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
