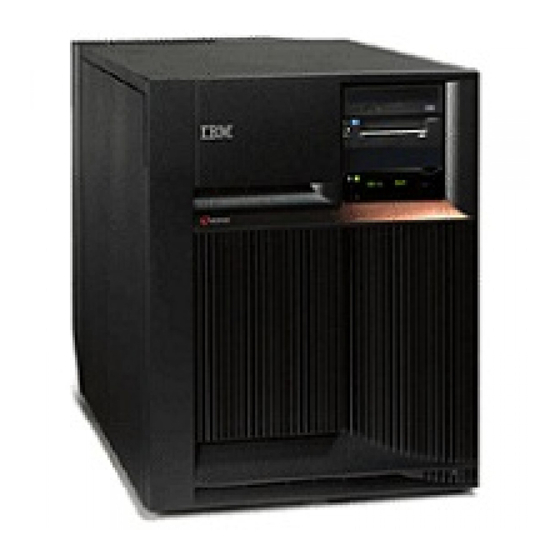

IBM i Series Manual

IBM i Series Manual

Power supply and air moving device
Hide thumbs Also See for i Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Handbook, User Manual
iSeries
820, 825, 5075, 5095 and 0595
Power Supply and Air Moving Device
Version 5

Advertisement

Table of Contents
loading

Related Manuals for IBM i Series

Summary of Contents for IBM i Series

  • Page 1 iSeries 820, 825, 5075, 5095 and 0595 Power Supply and Air Moving Device Version 5...
  • Page 3 iSeries 820, 825, 5075, 5095 and 0595 Power Supply and Air Moving Device Version 5...
  • Page 4 “Notices,” on page 31. Fourth Edition (August 2005) ® This edition applies to version 5, release 3, modification 0 of IBM Operating System/400 (product number 5722–SS1) and to all subsequent releases and modifications until otherwise indicated in new editions. This version does not run on all reduced instruction set computer (RISC) models nor does it run on CISC models.

  • Page 5: Table Of Contents

    Electronic Emission Notices . . 36 Federal Communications Commission (FCC) Remove the covers ..17 statement . . 36 820, 5075, or 5095 front cover . 17 © Copyright IBM Corp. 2000, 2005...
  • Page 6 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 7: Chapter 1. Power Supply And Air Moving Device

    (IPL) of your system, and verify your hardware configuration. You can choose to perform these tasks yourself or contact IBM(R) or an authorized service provider to make arrangements for them to perform the tasks for a fee.
  • Page 8 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 9: Chapter 2. Before You Begin

    __ 4. If there are incorrect, missing, or visibly damaged parts, contact one of the following: v Your authorized service provider ® v In the United States: IBM Rochester Manufacturing Automated Information Line (R–MAIL) at 1–800–300–8751 v In countries outside of the United States: Use the following Web site to locate your service and support numbers: http://www.ibm.com/planetwide...
  • Page 10 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 11: Chapter 3. Replace Power Supply In Iseries 820 Or 5075, 5095, Or 0595 Expansion Unit

    __ 7. Support the bottom of the power supply as you slide it out of the unit. __ 8. Follow the steps in “Details: Install power supply in iSeries 820 or 5075, 5095, or 0595 expansion unit” on page 11 to install the new power supply. © Copyright IBM Corp. 2000, 2005...
  • Page 12 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 13: Chapter 4. Replace Power Supply In Iseries 825

    23. __ 3. Remove the back cover. Refer to “825 back cover” on page 20. __ 4. Locate the power supply to be replaced at the back of the unit (P01 or P02). © Copyright IBM Corp. 2000, 2005...
  • Page 14 __ 5. Unplug the power supply. __ 6. Pull the latch on the power supply handle. __ 7. Lift up the handle on the power supply. View video. __ 8. Support the bottom of the supply as you slide it out of the unit. __ 9.
  • Page 15 __ 10. Slide the power supply into the system unit. __ 11. Move the handle down to lock in place. __ 12. Push in the latch. __ 13. Plug the power cord into the power supply and into the outlet. __ 14.
  • Page 16 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 17: Chapter 5. Install Power Supply In Iseries 820 Or 5075, 5095, Or 0595 Expansion Unit

    __ 1. Pull the handle down on the power supply. Note: The following figure is a power supply shown on an iSeries model 820. The power supply for the 5075 expansion unit is the same. © Copyright IBM Corp. 2000, 2005...
  • Page 18 __ 2. Slide the power supply into the system unit. __ 3. Move the handle up to lock in place. __ 4. Look at the back of the system unit. A green light on the power supply indicates that power is powered on. __ 5.

  • Page 19: Chapter 6. Replace The Air Moving Device

    (B01 or B02). Refer to “Locations” on page 27. __ 4. Remove the air moving device by pulling the latches. __ 5. Follow the steps in “Details: Install the air moving device” on page 16 to install the new air moving device. © Copyright IBM Corp. 2000, 2005...
  • Page 20 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 21: Chapter 7. Install The Air Moving Device

    __ 4. Pull the latch to remove the air-moving-device filler plates. __ 5. Install the air moving device assembly in the next available position (B02). View video. Refer to “Locations” on page 27. __ 6. Push in the latches. © Copyright IBM Corp. 2000, 2005...

  • Page 22: Details: Install The Air Moving Device

    Details: Install the air moving device __ 1. Install the air moving device assembly in the next available position (B02). View video. Refer to “Locations” on page 27. __ 2. Push in the latches. __ 3. The air moving device is running, but the green light will not light until the next power off and power on of the system.

  • Page 23: Remove The Covers

    “System units in a rack” on page 21 820, 5075, or 5095 front cover Remove the system unit or expansion unit front cover by gripping the sides of the cover A and pulling the cover toward you. © Copyright IBM Corp. 2000, 2005...

  • Page 24: 825 Front Cover

    825 front cover Remove the system unit front cover by gripping the sides of the cover A and pulling the cover toward you. 820, 5075, and 5095 side and back cover __ 1. Place your hand near the bottom of the back cover and lift up and out. __ 2.
  • Page 25 Remove the covers...

  • Page 26: 825 Back Cover

    825 back cover Remove the back cover only. Place your hand near the bottom of the back cover and lift up and out. 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 27: System Units In A Rack

    System units in a rack __ 1. Press latches B and pull the server out using the handle C . __ 2. Refer to previous unit diagrams to remove the side cover. Remove the covers...
  • Page 28 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 29: Power Down The System

    Enter. 4. When the iSeries power down is complete, unplug any power cords, such as printers and displays, from electrical outlets. 5. Unplug the system or expansion unit power cord from the electrical outlet. © Copyright IBM Corp. 2000, 2005...
  • Page 30 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 31: Power On The System

    Yes: Continue with the next step. No: Do the following: __ a. Press the Increment/Decrement push button until 02 appears in the Function/Data display. __ b. Press the Enter push button on the control panel. © Copyright IBM Corp. 2000, 2005...
  • Page 32 __ c. Press the Increment/Decrement push button until B appears in the Function/Data display. __ d. Press the Enter push button on the control panel. __ e. Press the Increment/Decrement push button until S appears in the Function/Data display __ f. Press the Enter push button on the control panel. __ g.

  • Page 33: Locations

    “820 air moving device (AMD) and power supply location” on page 28 v “825 air moving device (AMD) and power supply location” on page 29 v “5075, 5095 or 0595 air moving device (AMD) and power supply location” on page 30 © Copyright IBM Corp. 2000, 2005...

  • Page 34: 820 Air Moving Device (Amd) And Power Supply Location

    820 air moving device (AMD) and power supply location v Remove the power supply filler plate from position P03 before installing the power supply. Pull the latch to remove the filler plate. v Install air moving devices in position B02 first, then B04. 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 35: 825 Air Moving Device (Amd) And Power Supply Location

    825 air moving device (AMD) and power supply location v Remove the power supply filler plate from position P02 before installing the power supply. Pull the latch to remove the filler plate. v Install air moving devices in position B02. Locations...

  • Page 36: 5075, 5095 Or 0595 Air Moving Device (Amd) And Power Supply Location

    5075, 5095 or 0595 air moving device (AMD) and power supply location v Install the power supply in position P02. v Install the air moving device in position B01. 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...

  • Page 37: Appendix. Notices

    Web sites. The materials at those Web sites are not part of the materials for this IBM product and use of those Web sites is at your own risk.

  • Page 38: Trademarks

    All statements regarding IBM’s future direction or intent are subject to change or withdrawal without notice, and represent goals and objectives only. All IBM prices shown are IBM’s suggested retail prices, are current and are subject to change without notice. Dealer prices may vary.

  • Page 39: Terms And Conditions For Downloading And Printing Publications

    Publications or any information, data, software or other intellectual property contained therein. IBM reserves the right to withdraw the permissions granted herein whenever, in its discretion, the use of the Publications is detrimental to its interest or, as determined by IBM, the above instructions are not being properly followed.

  • Page 40: Code Disclaimer Information

    All sample code is provided by IBM for illustrative purposes only. These examples have not been thoroughly tested under all conditions. IBM, therefore, cannot guarantee or imply reliability, serviceability, or function of these programs.
  • Page 41 IBM cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the fitting of non-IBM option cards. Australia and New Zealand Class A statement Attention: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

  • Page 42: Electronic Emission Notices

    Dieses Genehmigungsverfahren ist von der Deutschen Bundespost noch nicht veröffentlicht worden. Electronic Emission Notices The following Statement applies to this IBM product. The statement for other IBM products intended for use with this product will appear in their accompanying manuals.
  • Page 43 Consult an IBM authorized dealer or service representative for help. Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper cables and connectors are available from IBM authorized dealers. IBM is not responsible for any radio or television interference caused by using other than recommended cables or connectors or by unauthorized changes or modifications to this equipment.
  • Page 44 recommended cables and connectors. 5138, 5155, 5156, 5157 Power Supply and Air Moving Device V5R3...
  • Page 46 Printed in USA...
